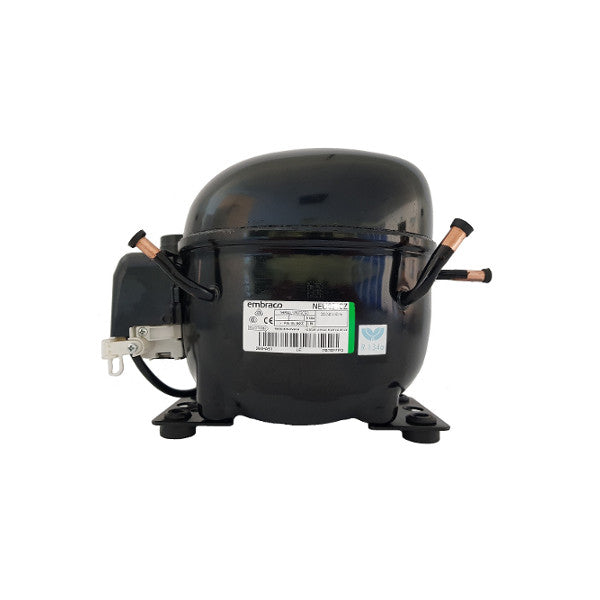

Compressor NEK2116Z 115V 60Hz from Embraco Nidec
Hermetic reciprocating compressor NEK2116Z 115V 60Hz for low-pressure applications from the NE series by Embraco Nidec. Compressors of this series feature a fixed speed and two efficiencies, specifically developed for use in commercial refrigeration, offering robustness and reliability for food retail and food service. Replaces the Embraco Aspera model NB2116Z.
The exact performance data can be found in the technical data sheet.
General Features:
- Motor Type: CSIR
- Refrigerant: R134a
- Power Supply: 115V/1/60Hz
- Displacement: 7.37 cm³
- Oil Charge: POE 22, 350 ml
- Expansion Device: Capillary tube or expansion valve
- Suction Connection: 8.1 mm
- Discharge Connection: 6.45 mm
- Dimensions (LxWxH): 246 x 162 x 188.4mm
- high product quality
- high equipment and system robustness
- low energy consumption
