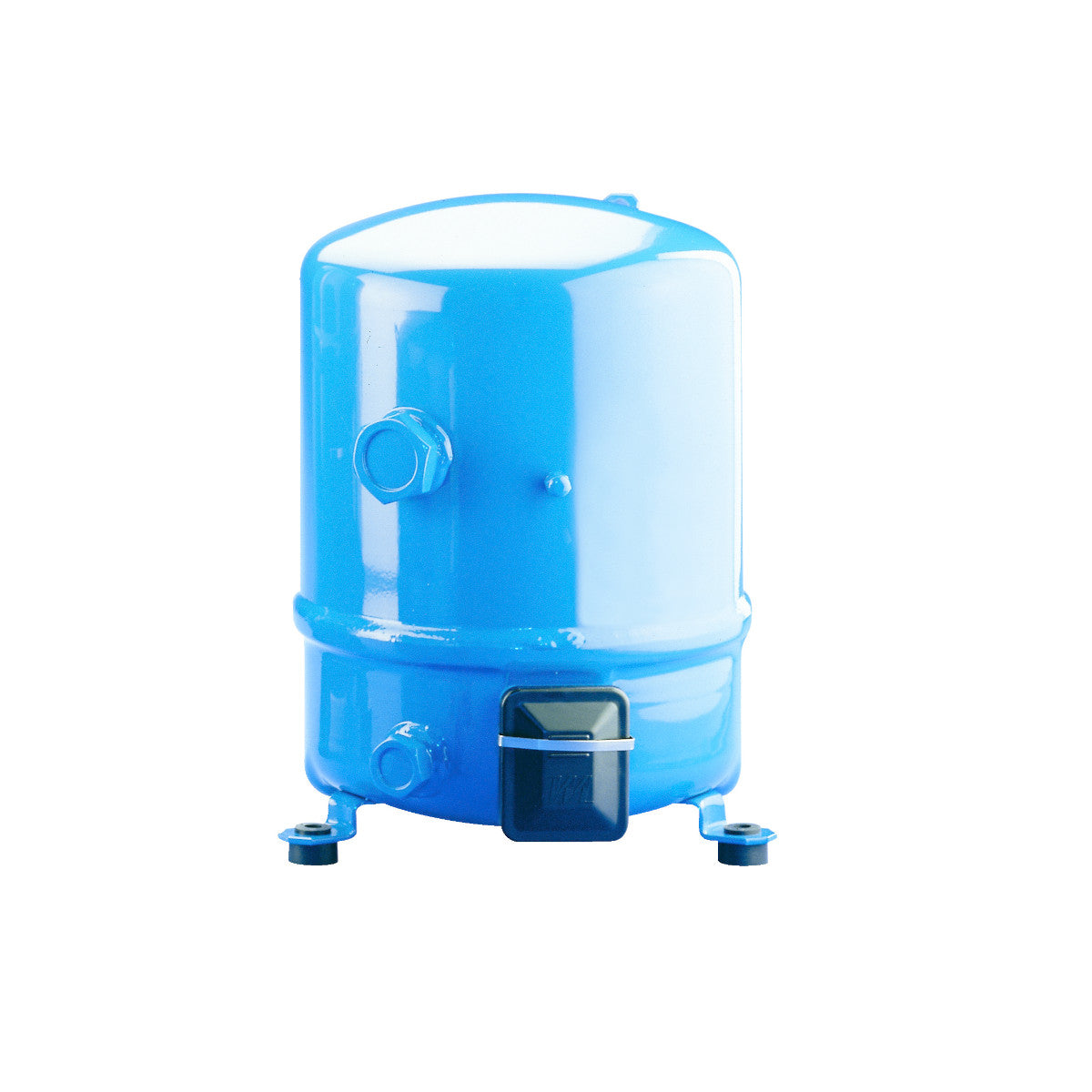

Compressor MTZ18-4VI by Danfoss Maneurop
The fully hermetic reciprocating compressors of the MT and MTZ series have been specially developed for operation in a wide range of applications. Advantages such as internal motor protection and the efficient ring valve design of the high-torque motor ensure a high-quality installation. The MTZ18-4VI is suitable for use at medium evaporating temperatures.
The exact performance data can be found in the technical data sheet.
General features:
- Motor type: TRI
- Refrigerant: R134a / R404A / R407C / R449A
- Mains voltage: 380-400V/3/50Hz
- Swept volume: 30.23 cm³
- Oil: POE, 160PZ, 0.95 l
- Cylinders: 1
- Suction connection: 1 ½" ODF, 12.0 mm
- Discharge connection: 1 3/8" ODF, 10.0 mm
- Dimensions (LxWxH): 288 x 288 x 413 mm
- Manufacturer number: MTZ18JA4BVE
- reliable even with unstable power supply
- can be used even at high ambient temperatures
- can be operated with a thermostatic expansion valve
