MMC228 LUVE Contardo

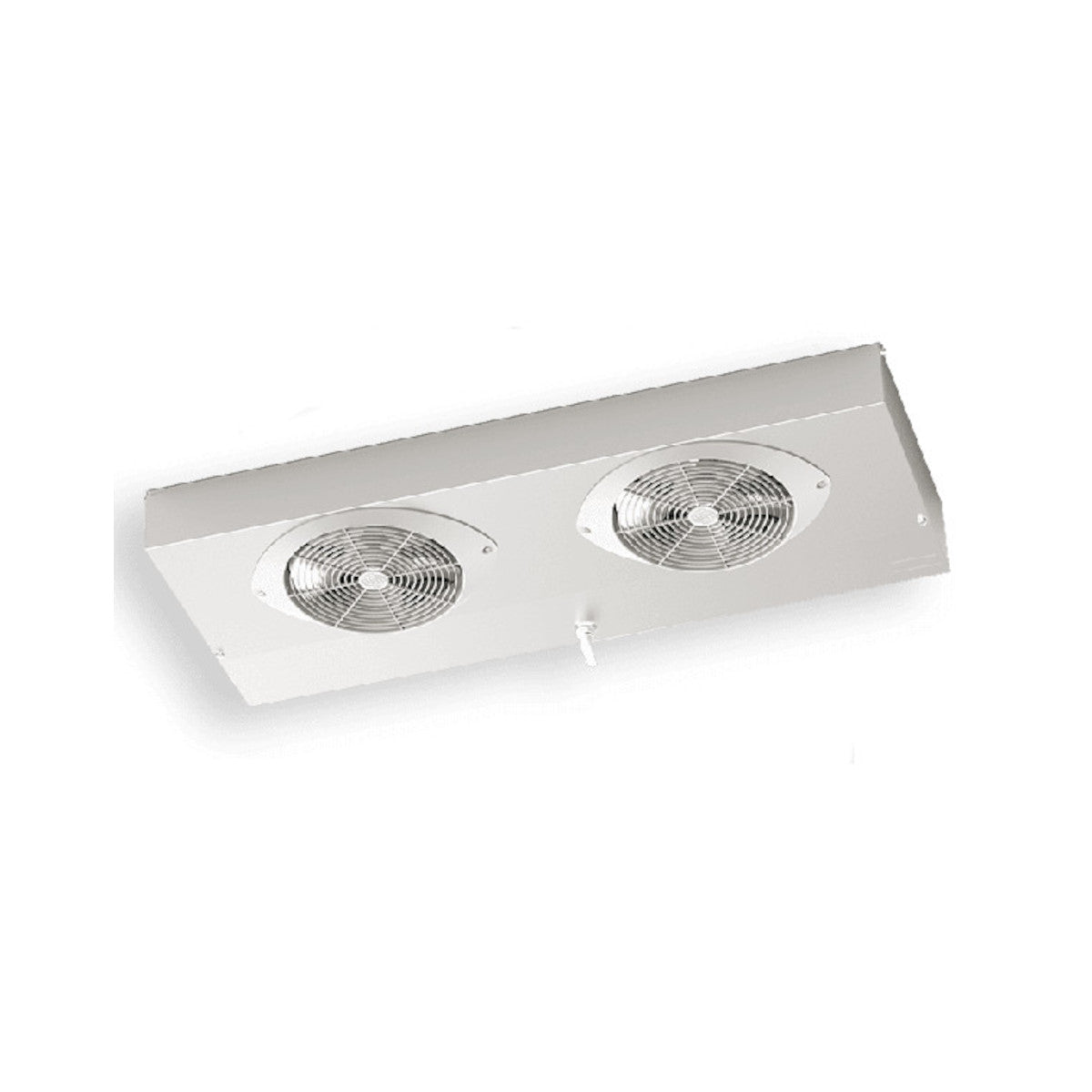

Evaporator MMC228 Minimagic by LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC228

With the Minimagic series, LU-VE Contardo is launching an innovative evaporator series that offers solutions for small cold rooms, refrigerated display cases, refrigerators, and counter cooling. Minimagic evaporators are particularly characterized by their economical and efficient operation. Thanks to the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC228 operates up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the ceiling air cooler MMC228 helps to protect the environment. The model also impresses with its modern and slim design. Distinguish yourself from your competitors with this product and actively contribute to the sustainable use of our environment.

Technical data

• Extra-light, modern aluminum casing
• Protective grille made of food-grade plastic
• Great flexibility guarantees exceptional impact resistance
• 2 fans
• Delivery without defrost heater (can be ordered separately)
• Capacity: 2090 W at Delta T=10K (R404A) TC 2.5°C
• Cooling capacity: 1.54 kW
• Fin spacing: 6.0 mm
• Air flow: 1020 m3/h
• Throw distance: 5.8 m
• Dimensions: 419 x 434.5 x 147.8 mm
• Fan: 2 x 254 mm
• Power: 124 W
• Connection inside/outside: 10 x 10 mm
• Suitable for all HFC refrigerants, propane, and CO2
