MMC227 LUVE Contardo

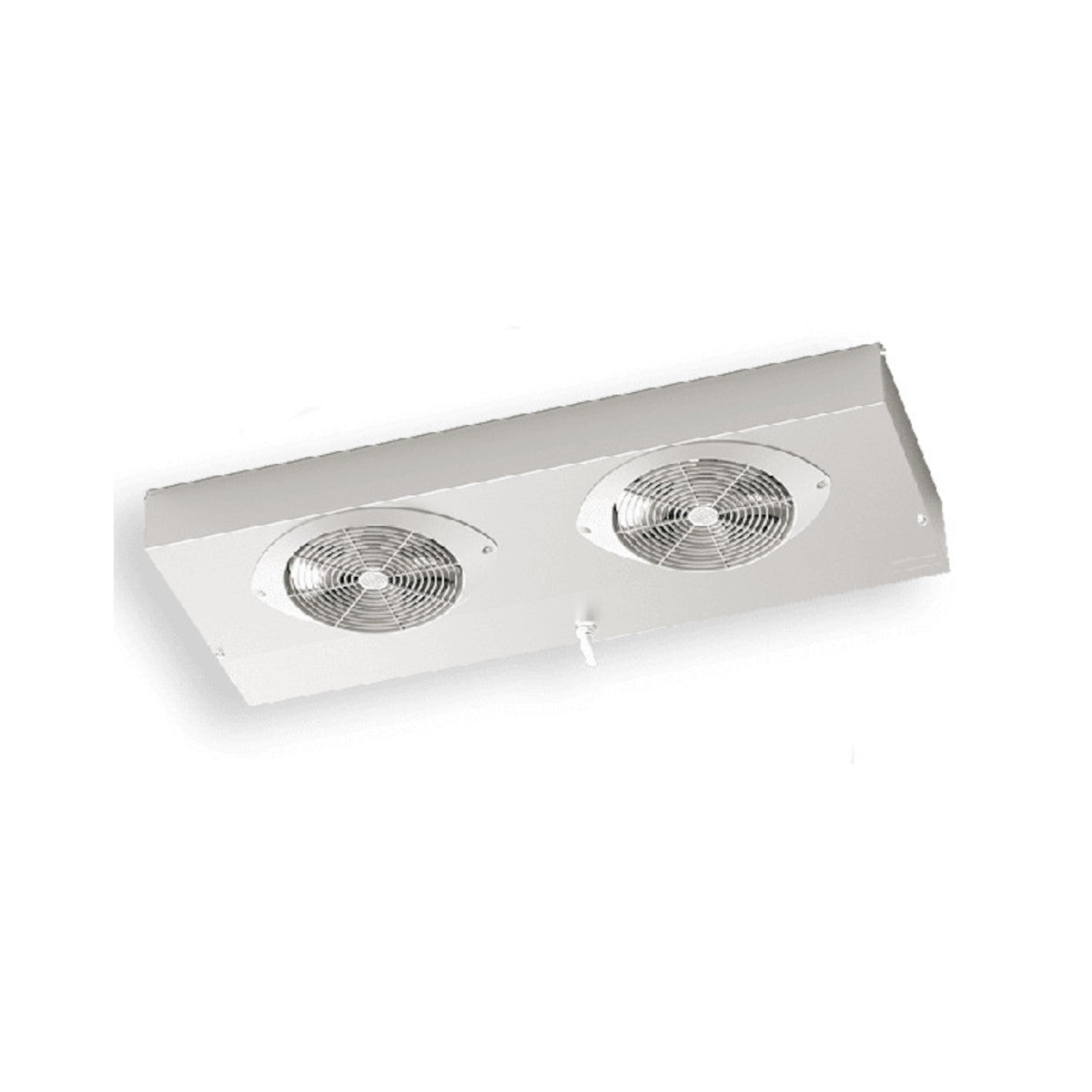

Evaporator MMC227 Minimagic from LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC227

With the Minimagic series, LU-VE Contardo launches an innovative evaporator series that offers solutions for small cold rooms, refrigerated counters, refrigerators, and counter cooling. Minimagic evaporators are particularly characterized by their economical and efficient operation. Thanks to the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC227 operates up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the MMC227 ceiling air cooler helps to protect the environment. The model also impresses with its modern and slim design. Distinguish yourself from your competition with this article and actively contribute to the resource-saving handling of our environment.

Technical Data

• Extra-light, modern aluminum housing
• Protective grille made of food-grade plastic
• High flexibility guarantees special impact resistance
• 2 fans
• Delivery without defrost heater (can be ordered separately)
• Cooling capacity: 1.21 kW
• Power: 1640W at Delta T=10K (R404A) TC 2.5°C
• Fin spacing: 6.0 mm
• Air flow: 1020 m3/h
• Throw distance: 5.8 m
• Dimensions: 419 x 434.5 x 147.8 mm
• Fans: 2 x 254 mm
• Connection inside/outside: 10 x 10 mm
• Suitable for all HFC refrigerants, propane, and CO2
