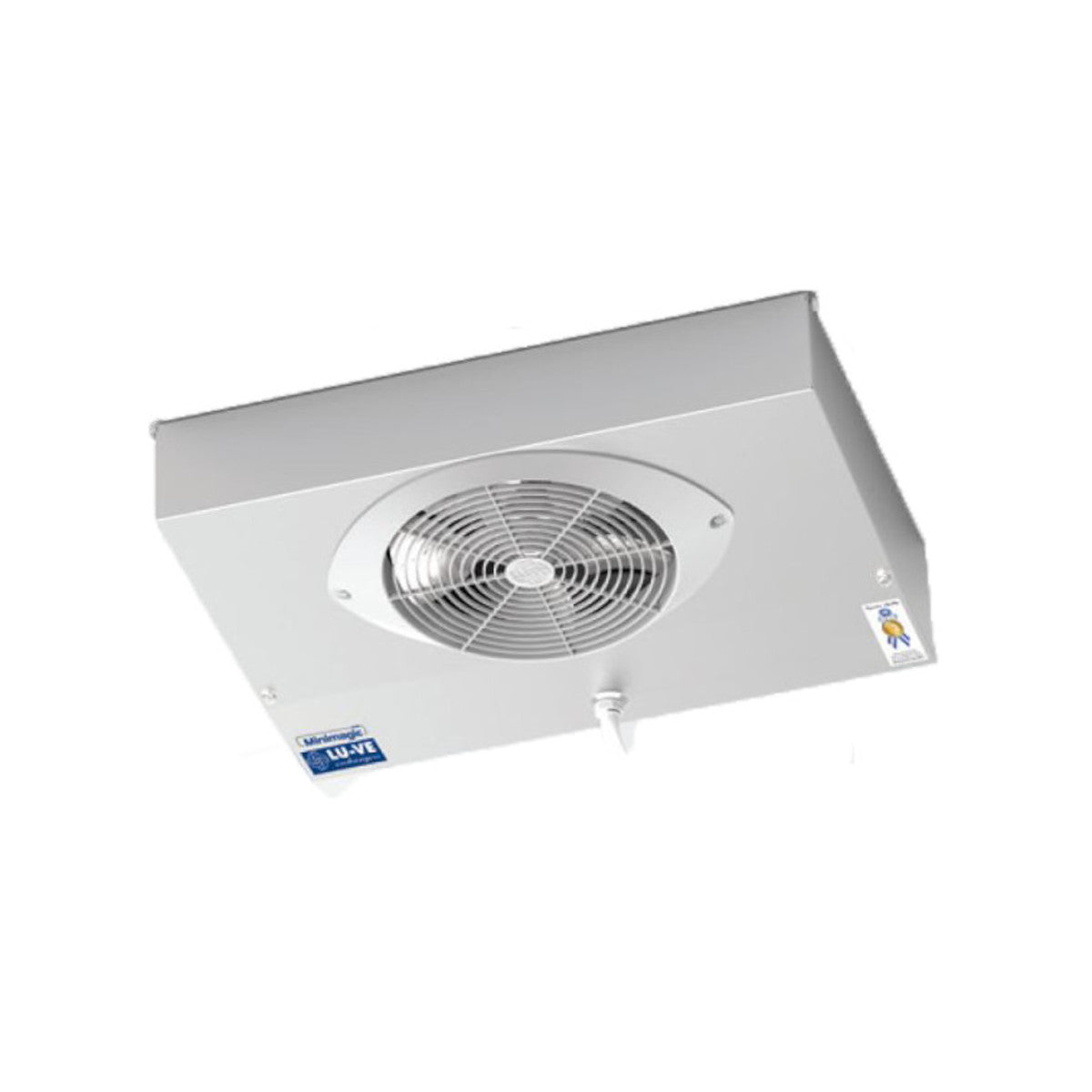

MMC218 LUVE Contardo

Evaporator MMC218 Minimagic by LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC218

With the Minimagic series, LU-VE Contardo is launching an innovative evaporator series that offers solutions for small cold rooms, refrigerated counters, refrigerators, and counter refrigeration. Minimagic evaporators are particularly characterized by their economical and efficient operation. Through the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC218 operates up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the MMC218 ceiling air cooler helps to protect the environment. The model also impresses with its modern and slim design. Set yourself apart from your competition with this article and actively contribute to the resource-saving use of our environment.

Technical Data

• Extra lightweight, modern aluminum casing
• Protective grille made of food-grade plastic
• High flexibility guarantees special impact resistance
• 1 fan
• Delivery without defrost heater (can be ordered separately)
• Capacity: 1030W at Delta T=10K (R404A) TC 2.5°C
• Cooling capacity: 0.76 kW
• Fin spacing: 6.0 mm
• Air flow: 510 m3/h
• Air throw: 5.0 m
• Dimensions: 419 x 434.5 x 147.8 mm
• Fan: 1 x 254 mm
• Power: 62 W
• Connection inlet/outlet: 10 x 10 mm
• Suitable for all HFC refrigerants, propane, and CO2
