MMC217 LUVE Contardo

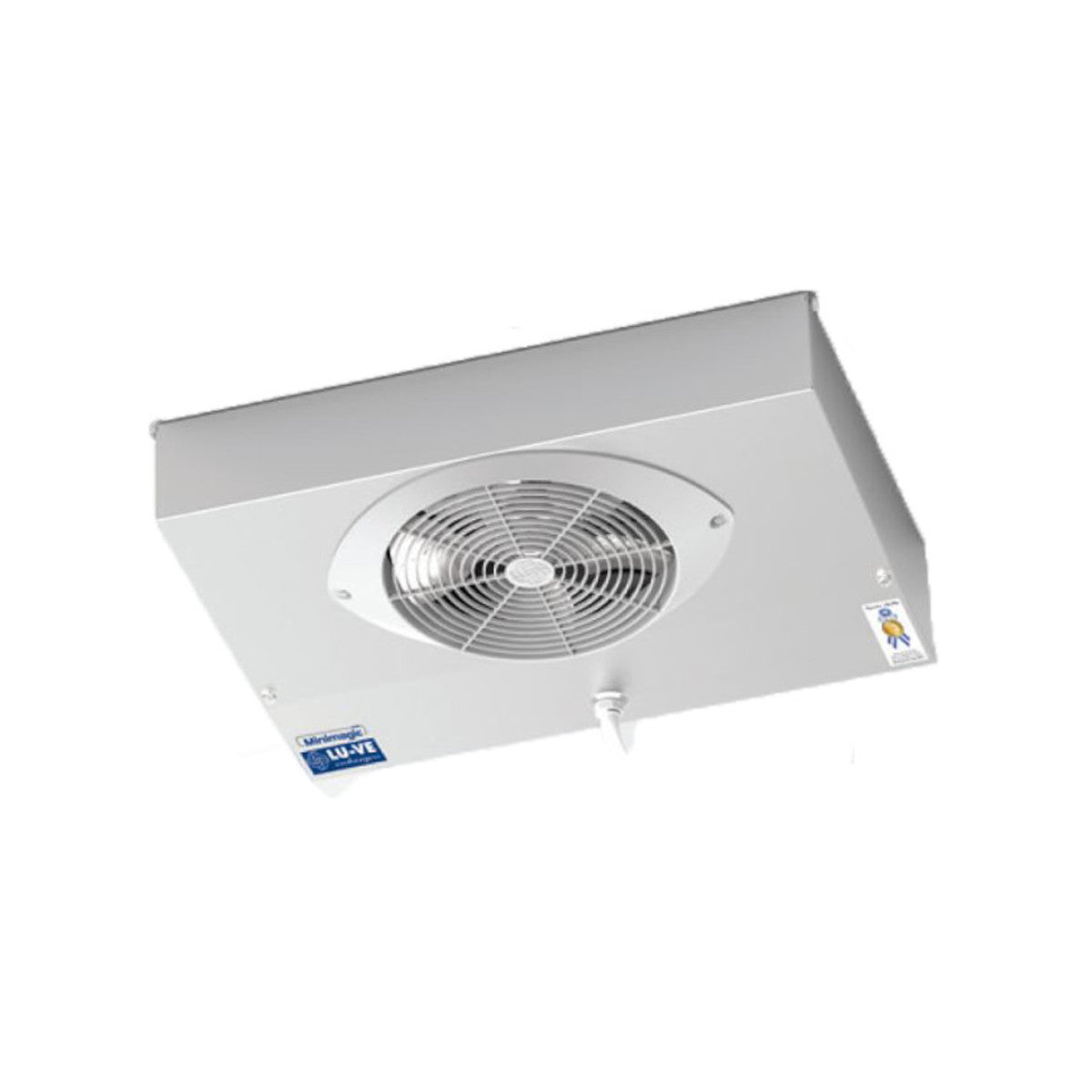

Verdampfer MMC217 Minimagic von LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC217

With the Minimagic series, LU-VE Contardo introduces an innovative evaporator series that offers solutions for small cold rooms, refrigerated display cases, refrigerators, and counter refrigeration. Minimagic evaporators are particularly characterized by their economical and efficient operation. Through the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC217 operates up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduced refrigerant consumption, the MMC217 ceiling air cooler helps protect the environment. The model also impresses with its modern and slim design. Distinguish yourself from your competitors with this item and actively contribute to the resource-saving handling of our environment.

Technical data

• Extra-light, modern aluminum casing
• Protective grille made of food-grade plastic
• High flexibility guarantees special impact resistance
• 1 fan
• Delivery without defrost heater (can be ordered separately)
• Power: 750W at Delta T=10K (R404A) TC 2.5°C
• Cooling capacity: 0.55 kW
• Fin spacing: 6.0 mm
• Air flow rate: 510 m3/h
• Throw distance: 5.0 m

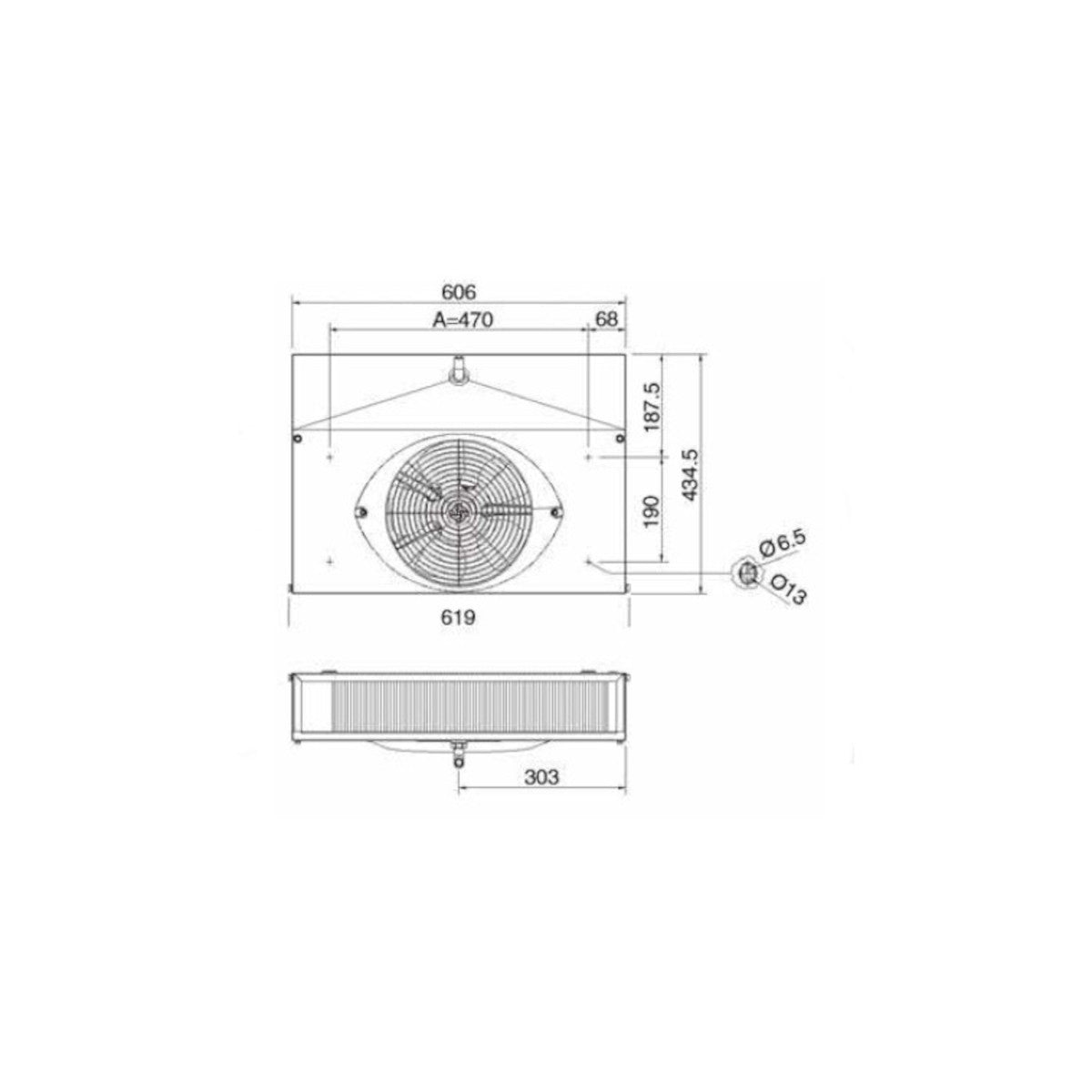

• Dimensions: 419 x 434.5 x 147.8 mm
• Fan: 1 x 254 mm
• Power: 62 W
• Connection inside/outside: 10 x 10 mm
• Suitable for all HFC refrigerants, propane, and CO2
