MMC216 LUVE Contardo

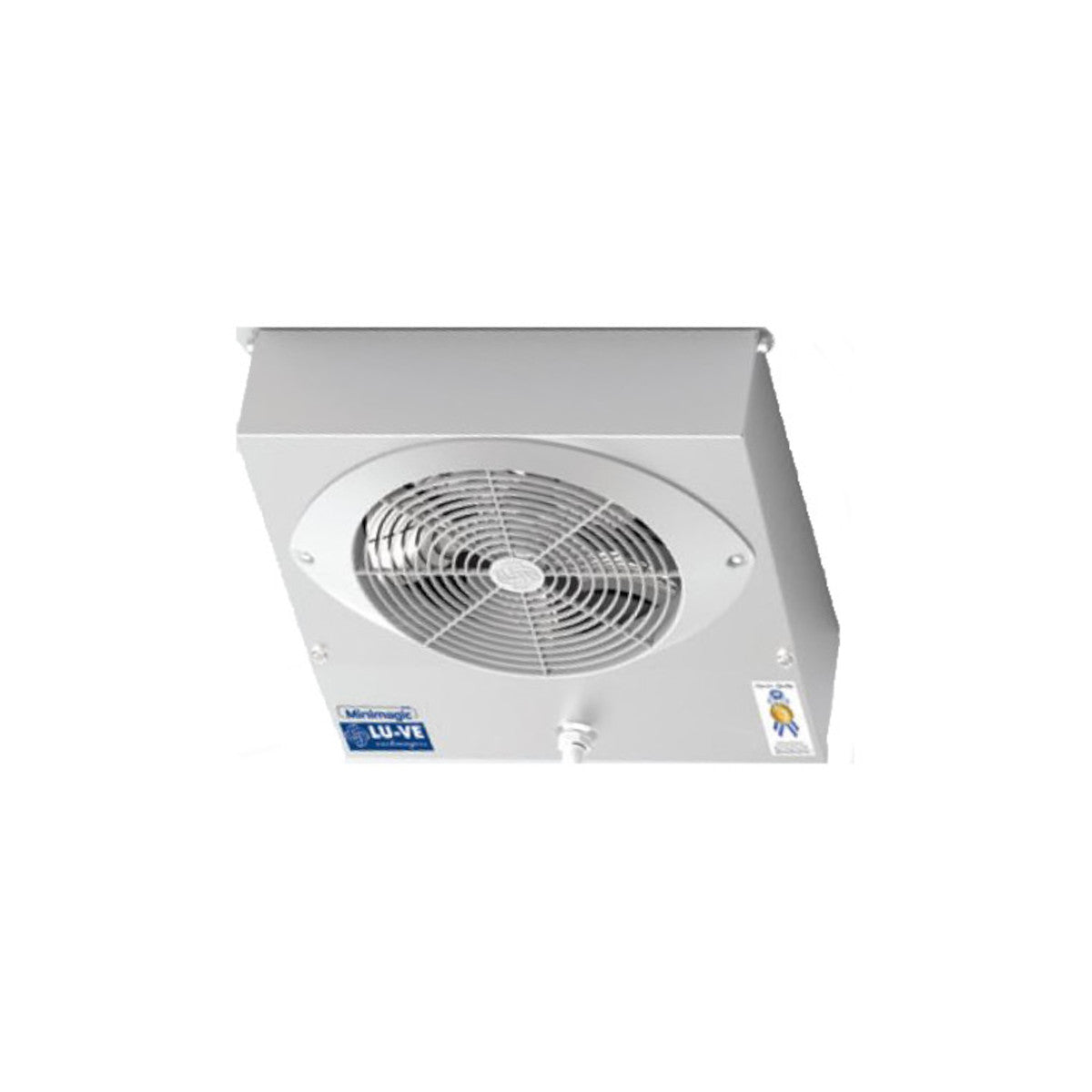

Evaporator MMC216 Minimagic by LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC216

With the Minimagic series, LU-VE Contardo introduces an innovative evaporator series that offers solutions for small cold rooms, refrigerated display cases, refrigerators, and counter refrigeration. Minimagic evaporators are particularly characterized by their economical and efficient operation. Through the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC216 operates up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the MMC216 ceiling air cooler helps to protect the environment. The model also impresses with its modern and slim design. Set yourself apart from your competitors with this product and actively contribute to the resource-saving handling of our environment.

Technical Data

• Extra-light, modern aluminum housing
• Protective grille made of food-grade plastic
• Great flexibility guarantees special impact resistance
• 1 fan
• Delivery without defrost heater (can be ordered separately)
• Power: 630W at Delta T=10K (R404A) TC 2.5°C
• Fin spacing: 6.0 mm
• Air flow: 370 m3/h
• Throw distance: 4.6 m
• Suitable for all HFC refrigerants, propane, and CO2
• Cooling capacity: 0.46 KW

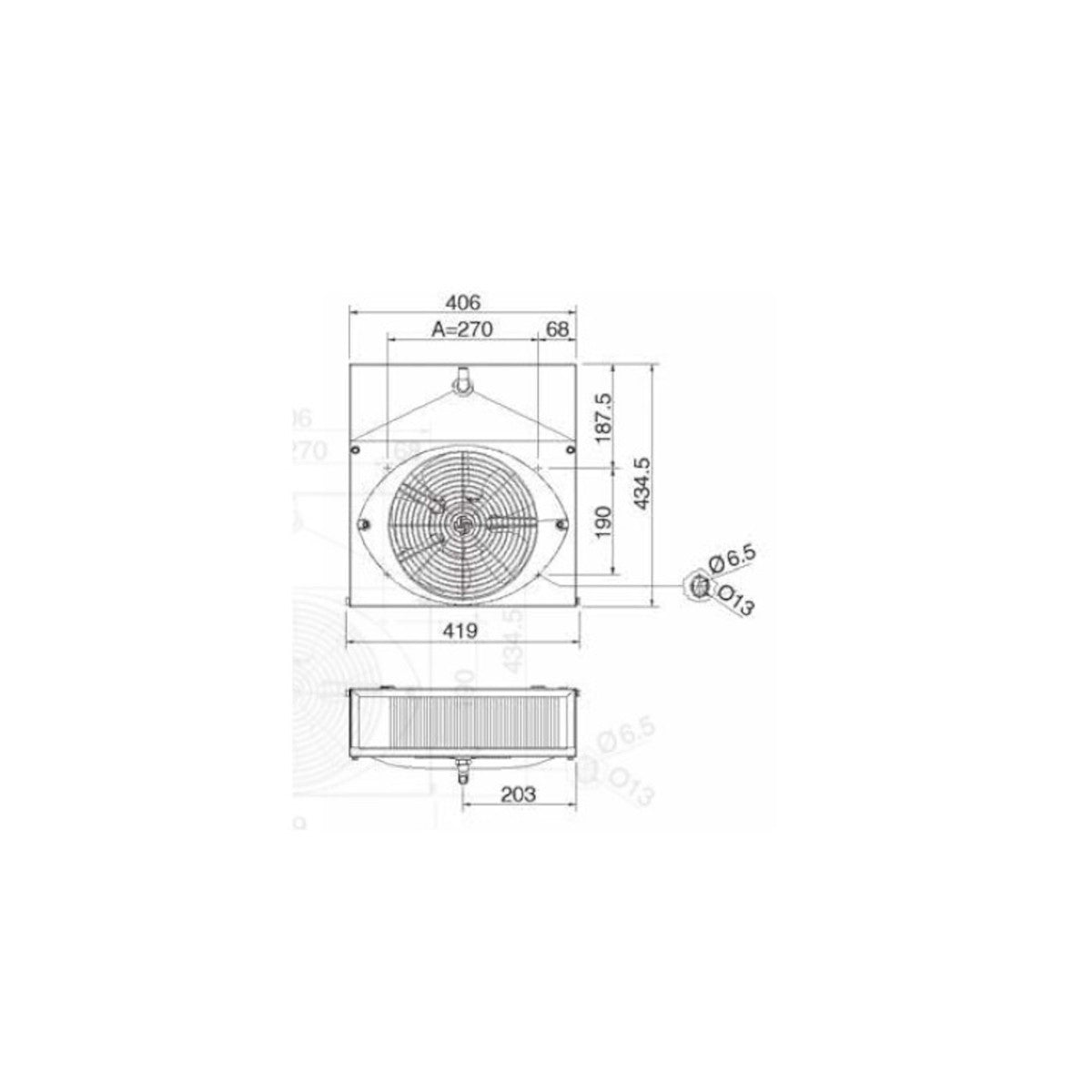

• Dimensions: 419 x 434.5 x 147.8
• Fan: 1 x 254 mm
• Power: 62 W
• Connection inside/outside: 10 x 10 mm
