MMC215 LUVE Contardo

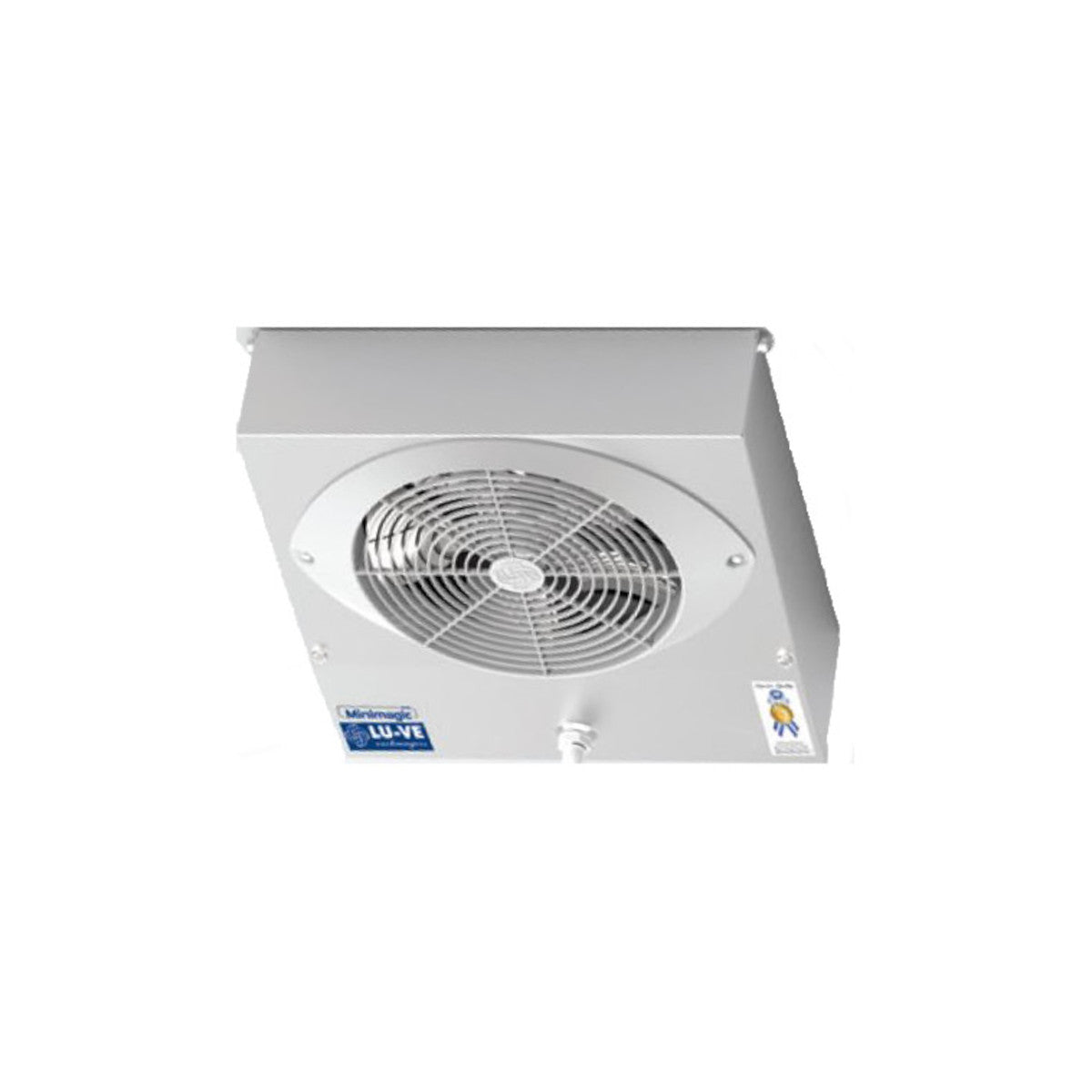

Evaporator MMC215 Minimagic by LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC215

With the Minimagic series, LU-VE Contardo is launching an innovative evaporator series that offers solutions for small cold rooms, refrigerated counters, refrigerators and counter cooling. Minimagic evaporators are particularly characterized by their economical and efficient operation. Thanks to the combination of powerful Turbocoil heat exchangers, low-consumption motors and an improved exchange surface, the MMC215 works up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the MMC215 ceiling air cooler helps protect the environment. The model also impresses with its modern and slim design. Stand out from your competition with this article and actively contribute to the resource-saving use of our environment.

Technical data

• Extra-light, modern aluminum housing
• Protective grille made of food-grade plastic
• Great flexibility guarantees special impact resistance
• 1 fan
• Delivery without defrost heater (can be ordered separately)
• Power: 460W at Delta T=10K (R404A) TC 2.5°C
• Fin spacing: 6.0 mm
• Air flow: 370 m3/h
• Throw: 4.6 m
• Suitable for all HFC refrigerants, propane and CO2
• Cooling capacity: 0.34 kW

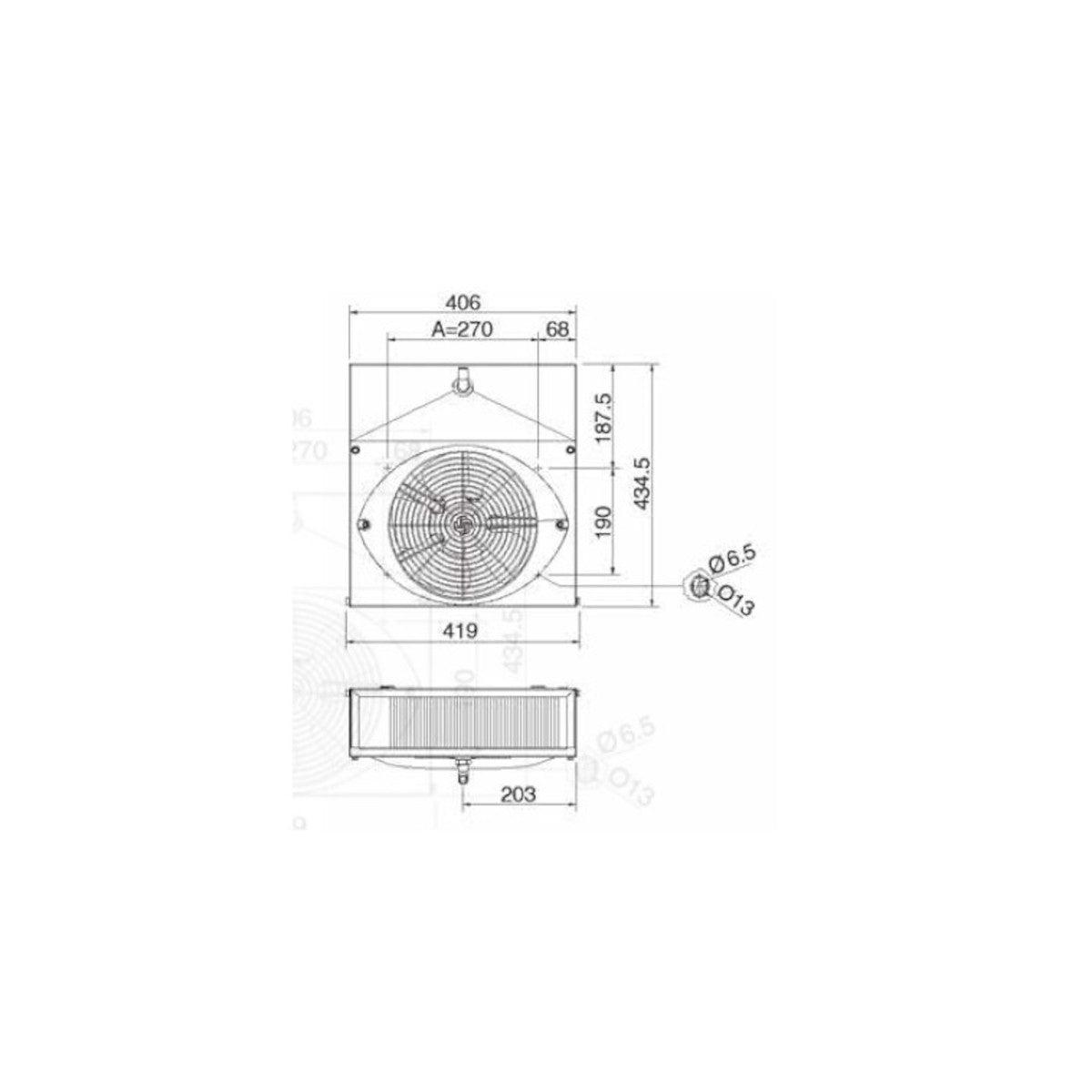

• Dimensions: 419 x 434.5 x 147.8
• Fan: 1 x 254 mm
• Power: 62 W
• Connection: 10 x 10 mm
