MMC128 LUVE Contardo

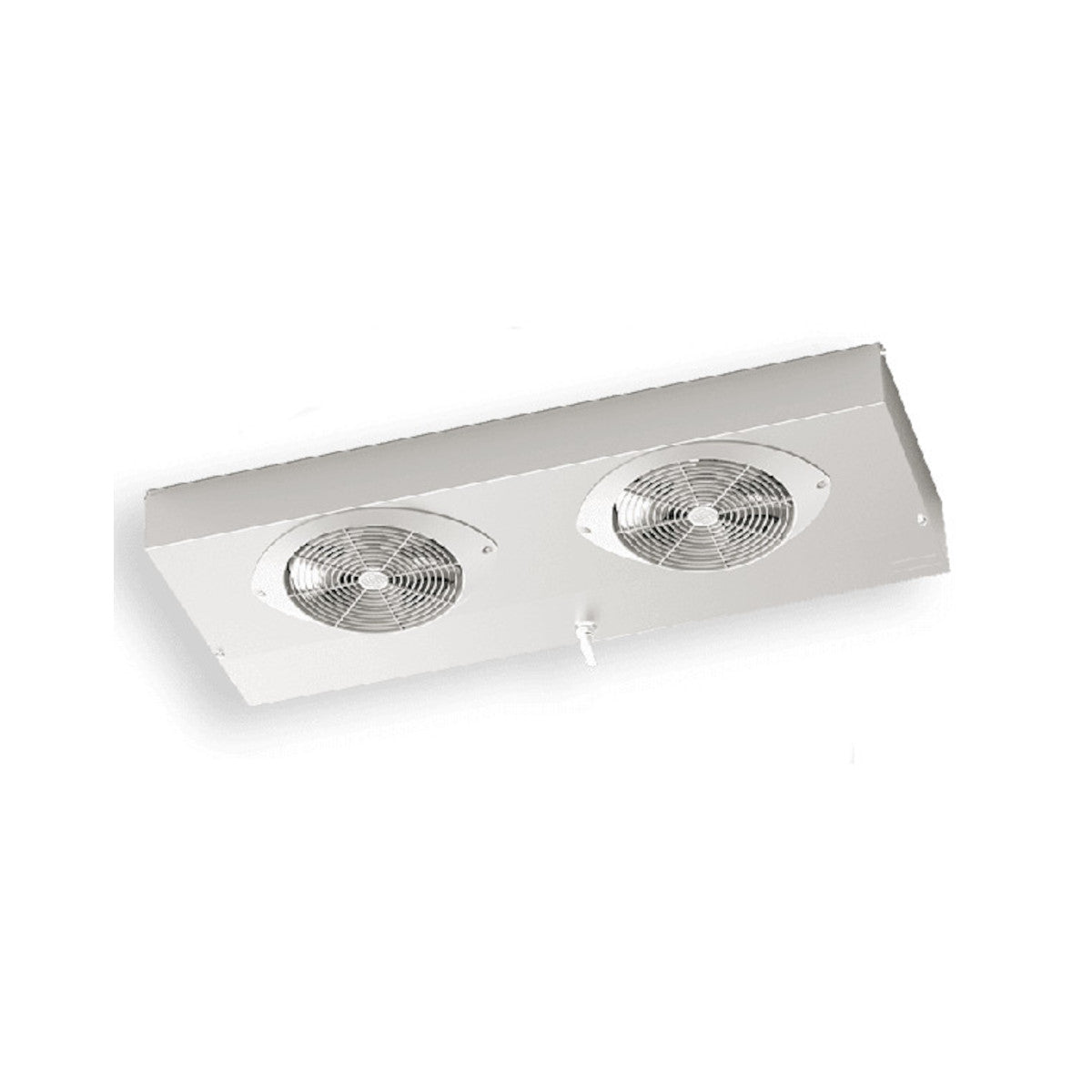

Verdampfer MMC128 Minimagic von LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC128

With the Minimagic series, LU-VE Contardo brings an innovative evaporator series to the market that offers solutions for small cold rooms, refrigerated counters, refrigerators, and counter cooling. Minimagic evaporators are particularly characterized by their economical and efficient operation. Through the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC128 works up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the MMC128 ceiling-mounted air cooler helps to protect the environment. The model also impresses with its modern and slim design. Set yourself apart from your competitors with this product and actively contribute to the resource-efficient handling of our environment.

General features of the evaporator:

• Extra light, modern aluminum housing
• Protective grille made of food-grade plastic
• High flexibility guarantees special shock resistance
• 2 fans
• Cooling capacity: 1.74 kW
• Delivery without defrost heater (can be ordered separately)
• Capacity: 2360W at Delta T=10K (R404A) TC 2.5°C
• Fin spacing: 4.5 mm
• Airflow: 920 m3/h
• Throw distance: 5.2 m
• Suitable for all HFC refrigerants, propane and CO2
• Dimensions: 419 x 434.5 x 147.8 mm
• Fan: 2 x 254 mm
• Power: 124 W
• Connection internal/external: 10 x 10 mm
