MMC127 LUVE Contardo

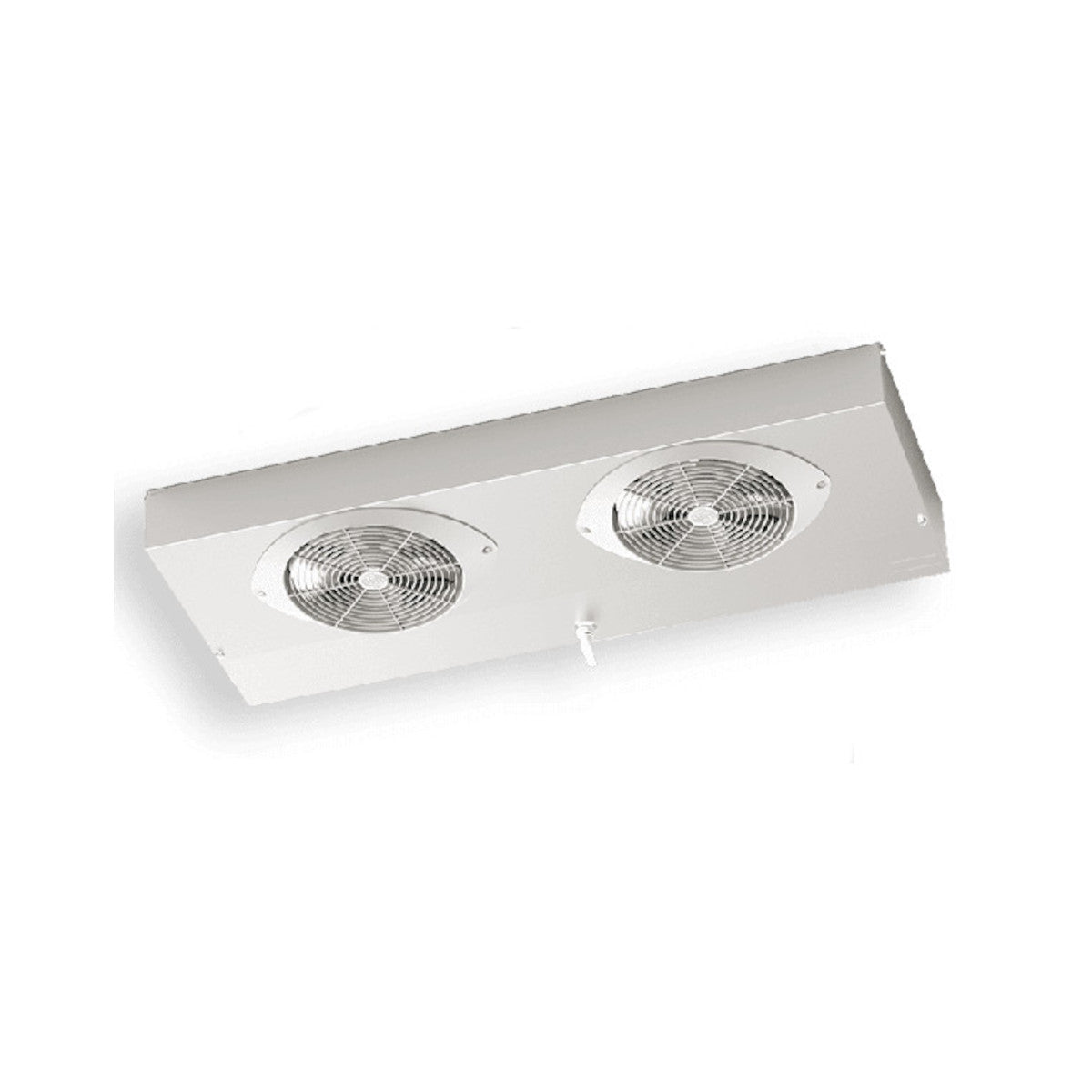

Evaporator MMC127 Minimagic by LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC127

With the Minimagic series, LU-VE Contardo introduces an innovative evaporator series that offers solutions for small cold rooms, refrigerated display cases, refrigerators, and counter refrigeration. Minimagic evaporators are particularly characterized by their economical and efficient operation. Through the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC127 operates up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the MMC127 ceiling air cooler helps to protect the environment. The model also impresses with its modern and slim design. Distinguish yourself from your competition with this article and actively contribute to the resource-saving use of our environment.

General features of the evaporator:

• Extra-light, modern aluminum casing
• Protective grille made of food-grade plastic
• High flexibility guarantees special impact resistance
• 2 fans
• Delivery without defrost heater (can be ordered separately)
• Power: 1930W at Delta T=10K (R404A) TC 2.5°C
• Fin spacing: 4.5 mm
• Air flow: 920 m3/h
• Throw distance: 5.2 m
• Suitable for all HFC refrigerants, propane, and CO2
• Cooling capacity: 1.42 KW

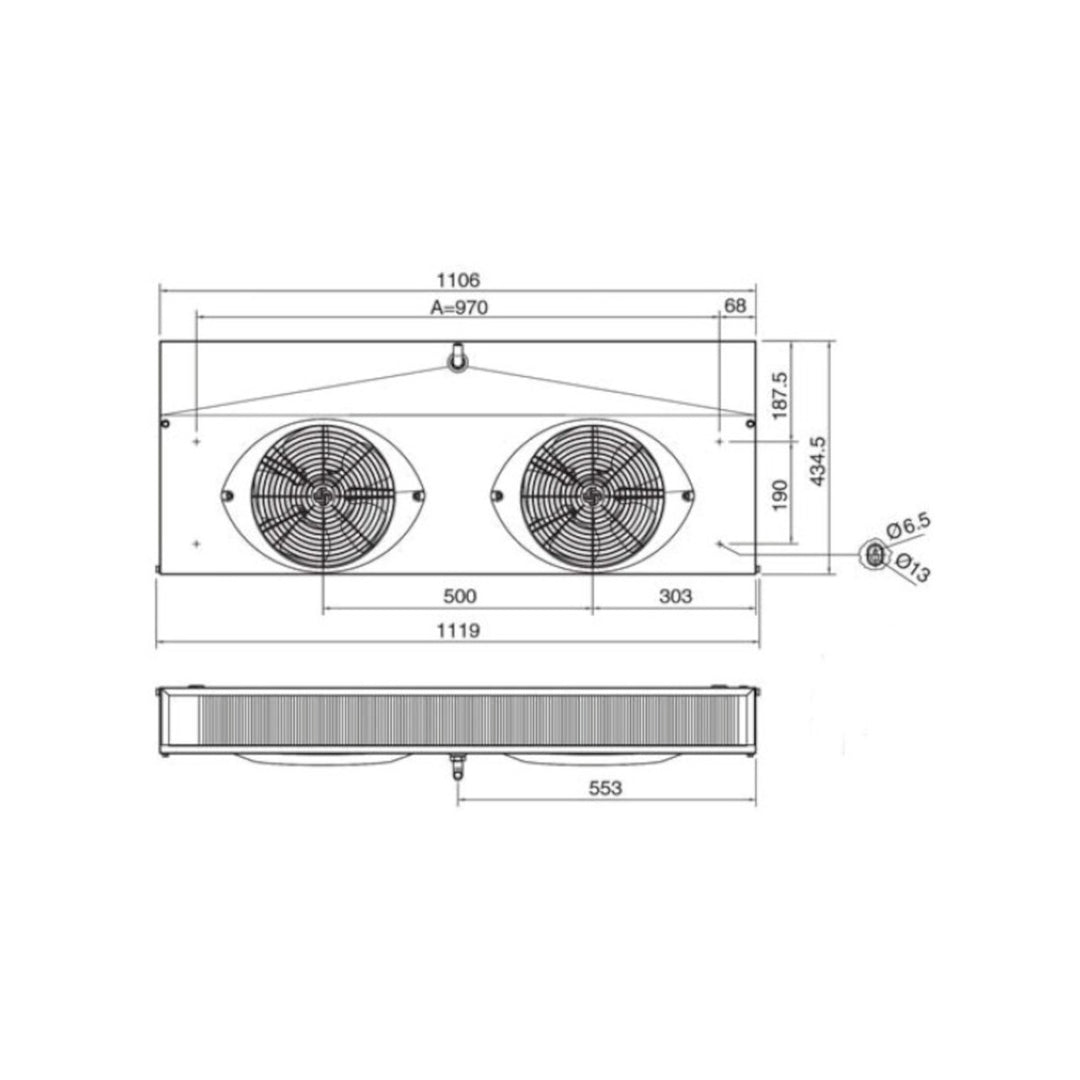

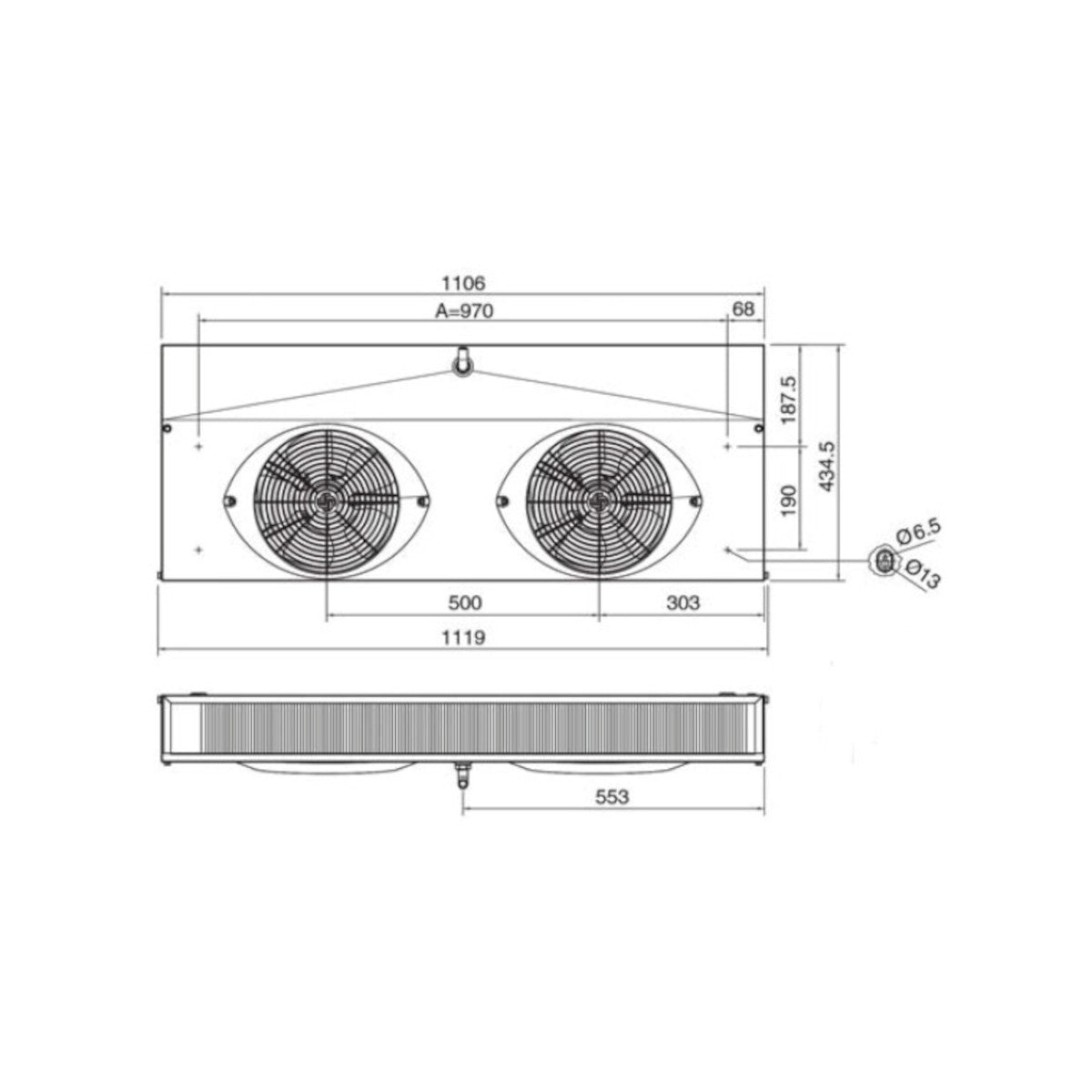

• Dimensions: 419 x 434.5 x 147.8 mm
• Fan: 2 x 254 mm
• Power: 124 W
• Connection inside/outside: 10 x 10 mm
