MMC118 LUVE Contardo

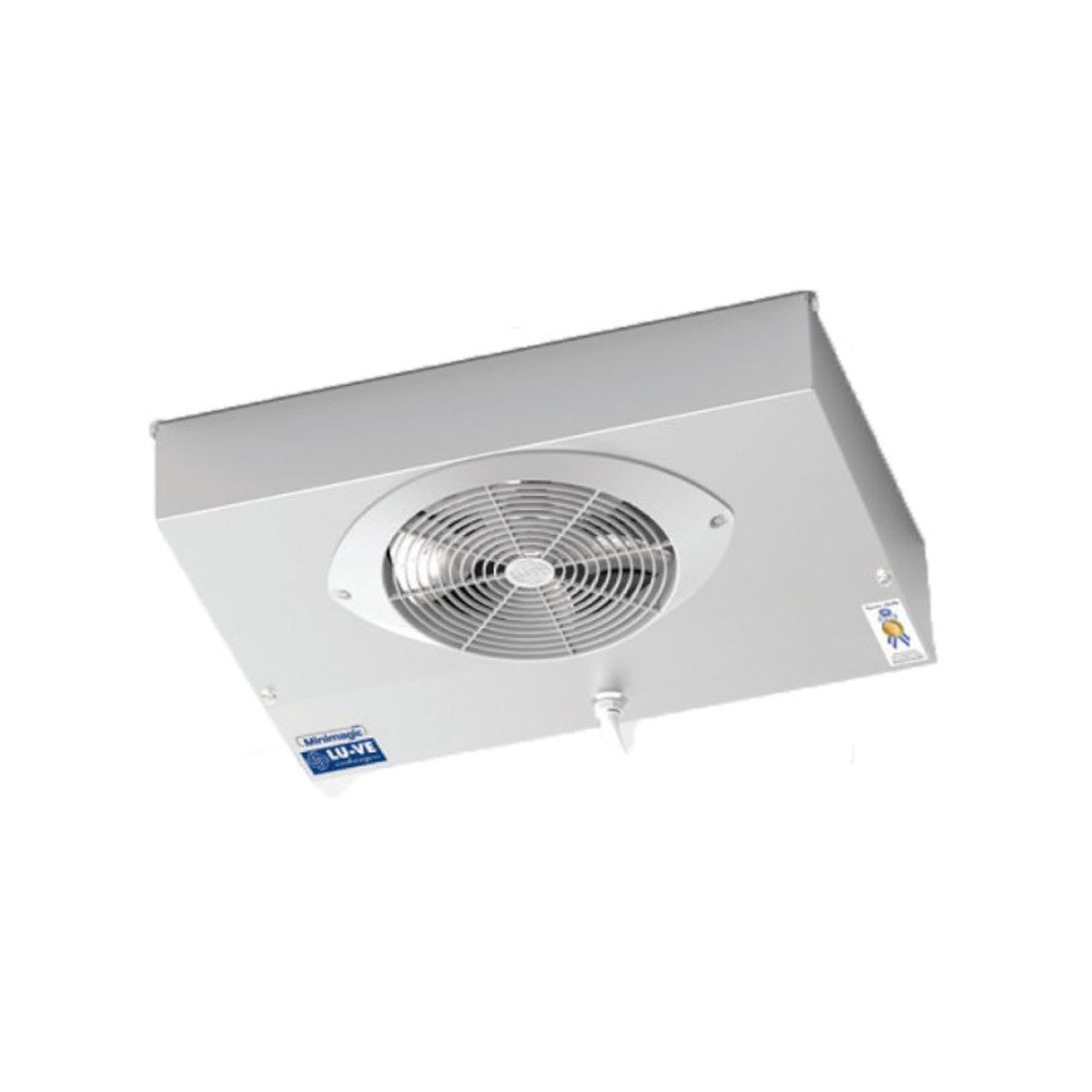

Evaporator MMC118 Minimagic by LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC118

With the Minimagic series, LU-VE Contardo introduces an innovative evaporator series that offers solutions for small cold rooms, refrigerated counters, refrigerators and counter cooling. Minimagic evaporators are particularly characterized by their economical and efficient operation. Through the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC118 operates up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the MMC118 ceiling air cooler helps to protect the environment. The model also impresses with its modern and slim design. Set yourself apart from your competition with this item and actively contribute to the resource-saving use of our environment.

Technical data

• Extra-light, modern aluminum housing
• Protective grille made of food-grade plastic
• High flexibility guarantees special shock resistance
• 1 fan
• Cooling capacity: 0.88 kW
• Delivery without defrost heater (can be ordered separately)
• Power: 1200 W at Delta T=10K (R404A) Tc 2.5°C
• Power: 880 W at Delta T=8K (R404A) Tc 0°C
• Fin spacing: 4.5 mm
• Air flow: 460 m3/h
• Throw distance: 4.5 m
• Suitable for all HFC refrigerants, propane and CO2

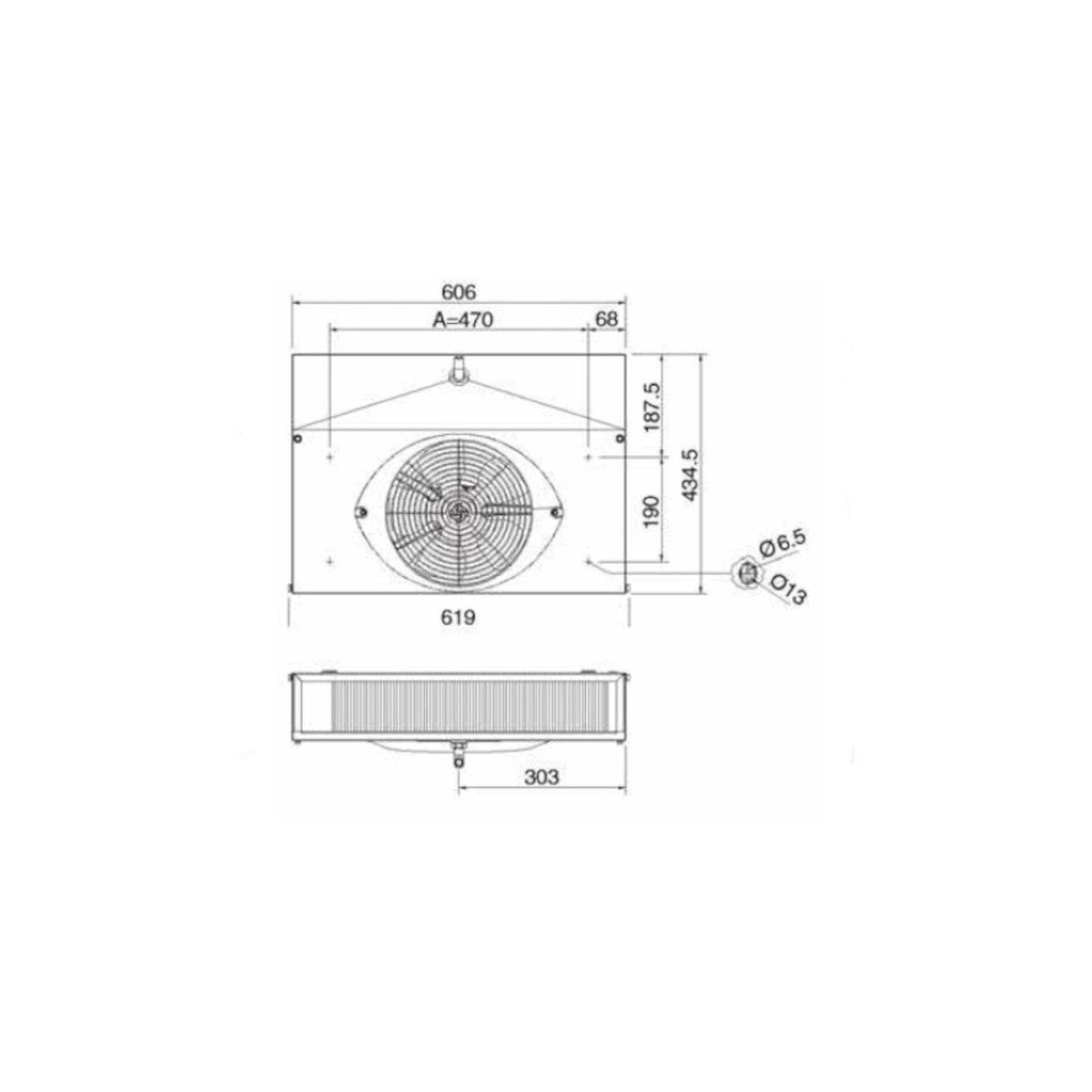

• Dimensions: 419 x 434.5 x 147.8 mm
• Fan: 1 x 254 mm
• Power: 62 W
• Connection inside/outside: 10 x 10 mm
