MMC116 LUVE Contardo

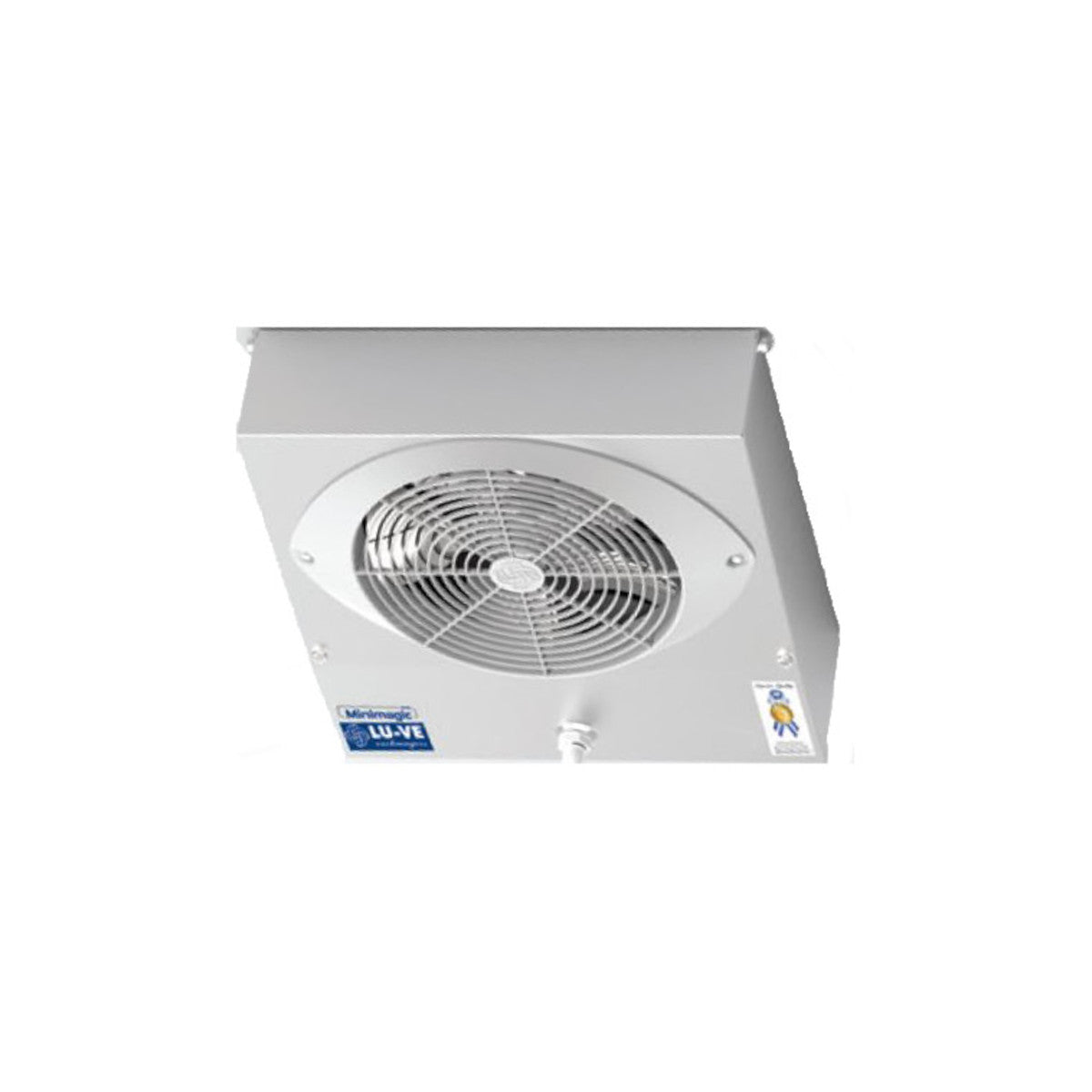

Evaporator MMC116 Minimagic by LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC116

With the Minimagic series, LU-VE Contardo launches an innovative evaporator series that offers solutions for small cold rooms, refrigerated display cases, refrigerators and counter cooling. Minimagic evaporators are particularly characterized by their economical and efficient operation. Thanks to the combination of powerful Turbocoil heat exchangers, low-consumption motors and an improved exchange surface, the MMC116 works up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the MMC116 ceiling air cooler helps to protect the environment. The model also impresses with its modern and slim design. Set yourself apart from your competitors with this article and actively contribute to the resource-saving use of our environment.

General features of the evaporator:

• Extra light, modern aluminum housing
• Protective grille made of food-grade plastic
• High flexibility guarantees particular shock resistance
• 1 fan
• Cooling capacity: 0.53 kW
• Delivery without defrost heater (can be ordered separately)
• Power: 720W at Delta T=10K (R404A) TC 2.5°C
• Power: 62 W
• Fin spacing: 4.5 mm
• Internal/external connection: 10 x 10 mm
• Air flow: 330 m3/h
• Throw distance: 4.1 m
• Suitable for all HFC refrigerants, propane and CO2

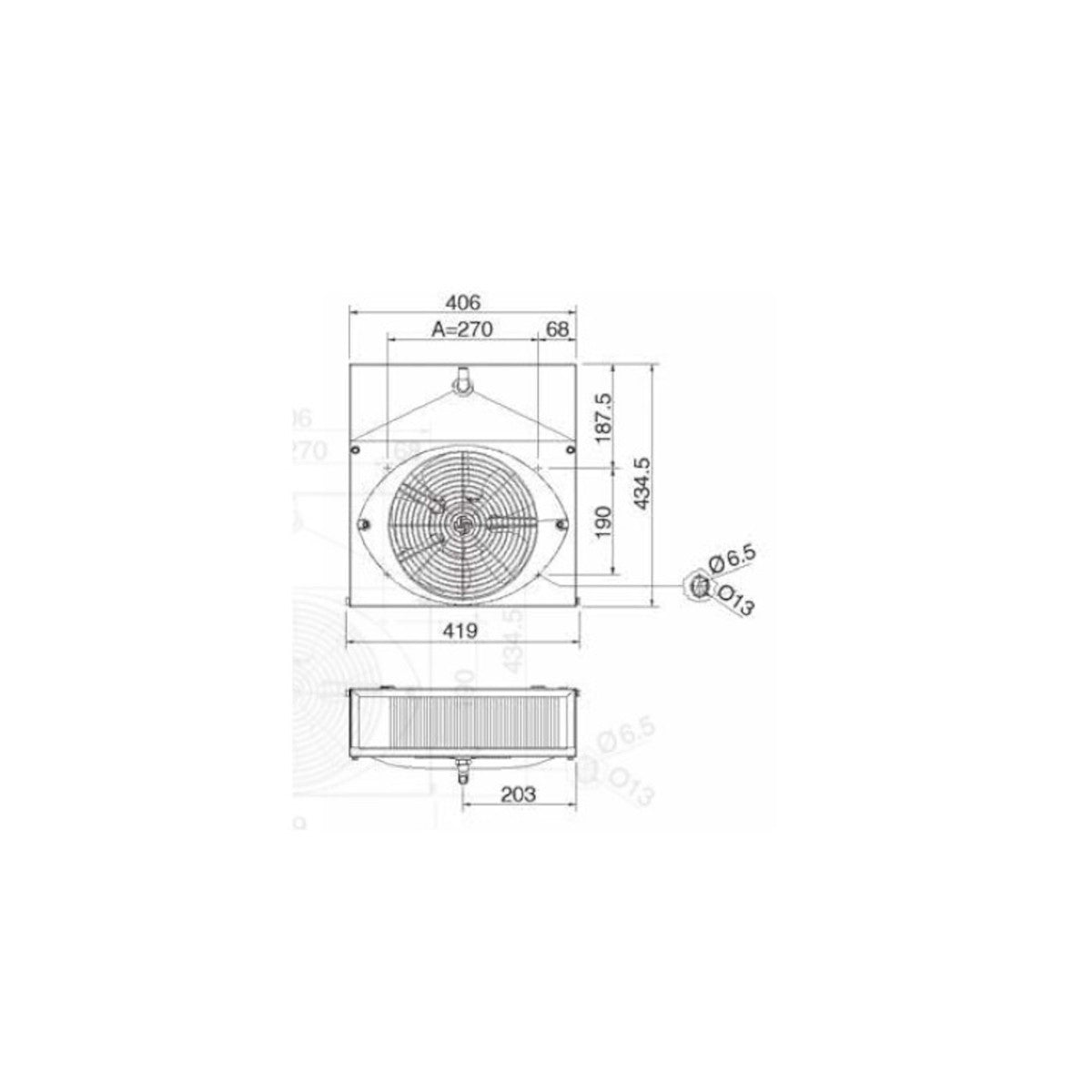

• Dimensions: 419 x 434.5 x 147.8 mm
• Fan blade: 1 x 254 mm
