MMC115 LUVE Contardo

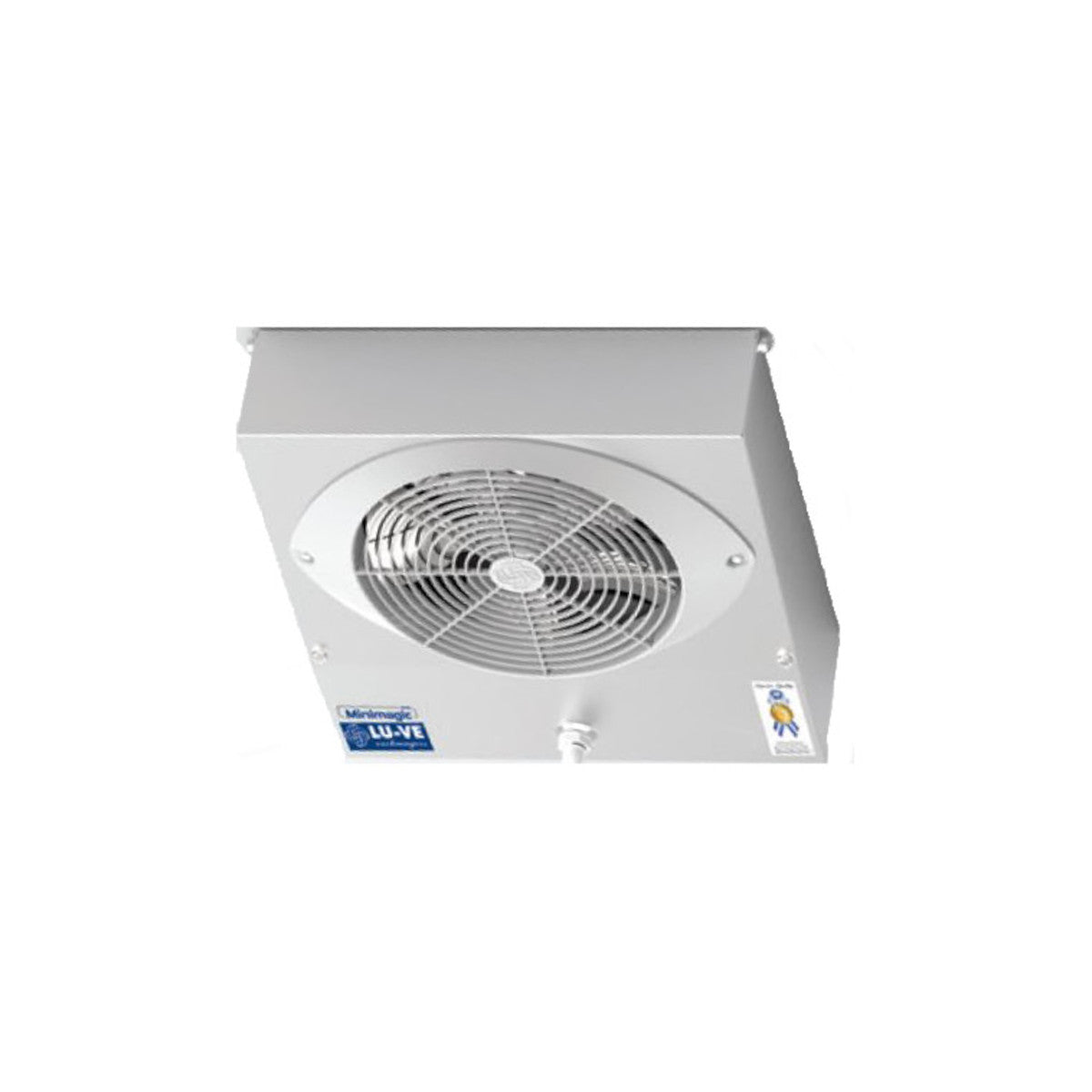

Evaporator MMC115 Minimagic by LU-VE Contardo / LU-VE Contardo Minimagic series evaporator MMC115

With the Minimagic series, LU-VE Contardo is launching an innovative evaporator series that offers solutions for small cold rooms, refrigerated counters, refrigerators, and counter cooling. Minimagic evaporators are particularly characterized by their economical and efficient operation. Through the combination of powerful Turbocoil heat exchangers, low-consumption motors, and an improved exchange surface, the MMC115 operates up to 42% more efficiently than conventional models from the manufacturer. In combination with a 50% reduction in refrigerant consumption, the ceiling air cooler MMC115 helps protect the environment. The model also impresses with its modern and slim design. Set yourself apart from your competition with this item and actively contribute to the resource-efficient use of our environment.

Technical data

• Extra light, modern aluminum housing
• Protective grille made of food-grade plastic
• High flexibility guarantees exceptional impact resistance
• 1 fan
• Delivery without defrost heater (can be ordered separately)
• Power: 530W at Delta T=10K (R404A) TC 2.5°C
• Cooling capacity: 0.39 kW
• Fin spacing: 4.5 mm
• Air flow: 330 m3/h
• Throw distance: 4.1 m
• Fan: 1 x 254 mm
• Power: 62 W
• Suitable for all HFC refrigerants, propane, and CO2

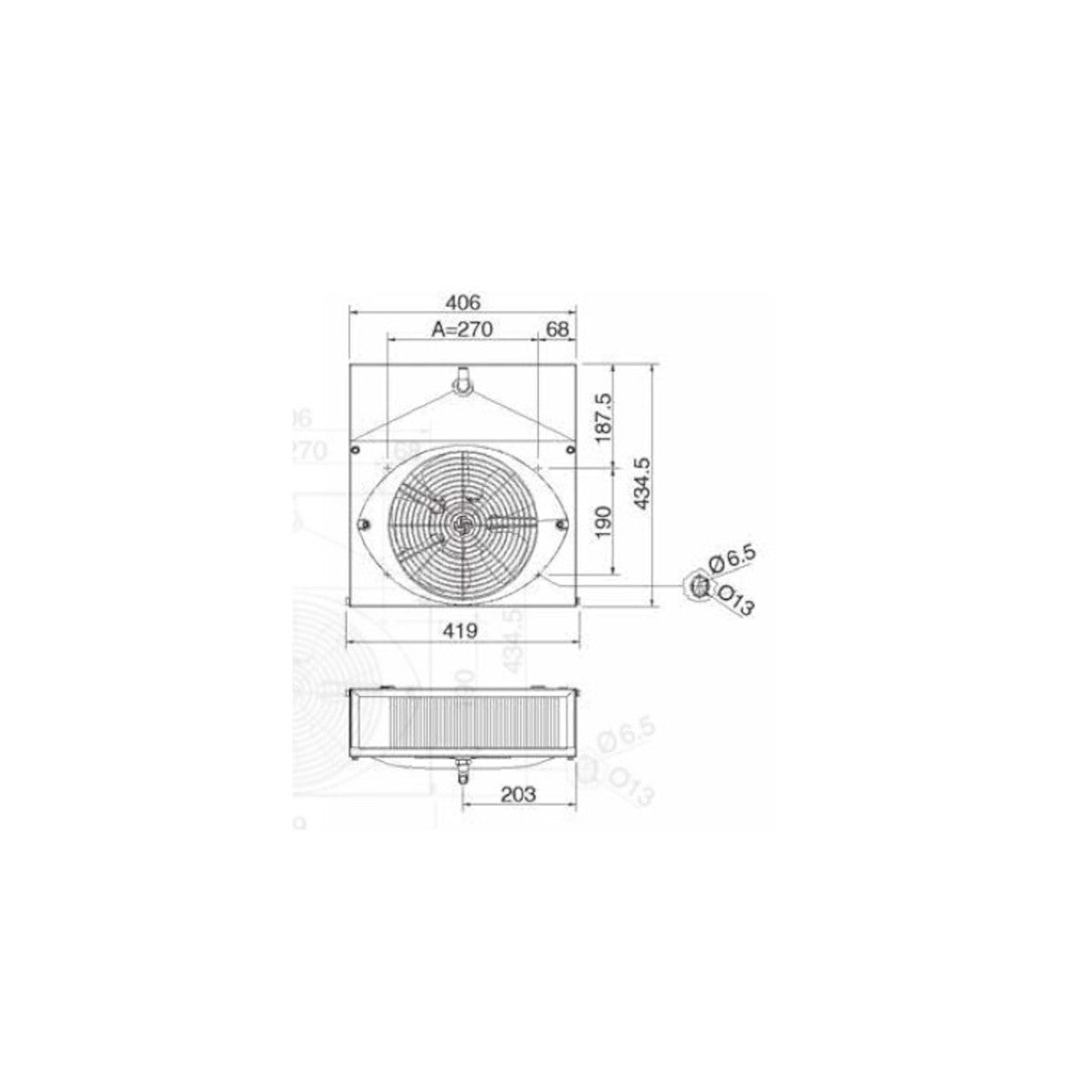

• Dimensions: 419 x 434.5 x 147.8 mm
