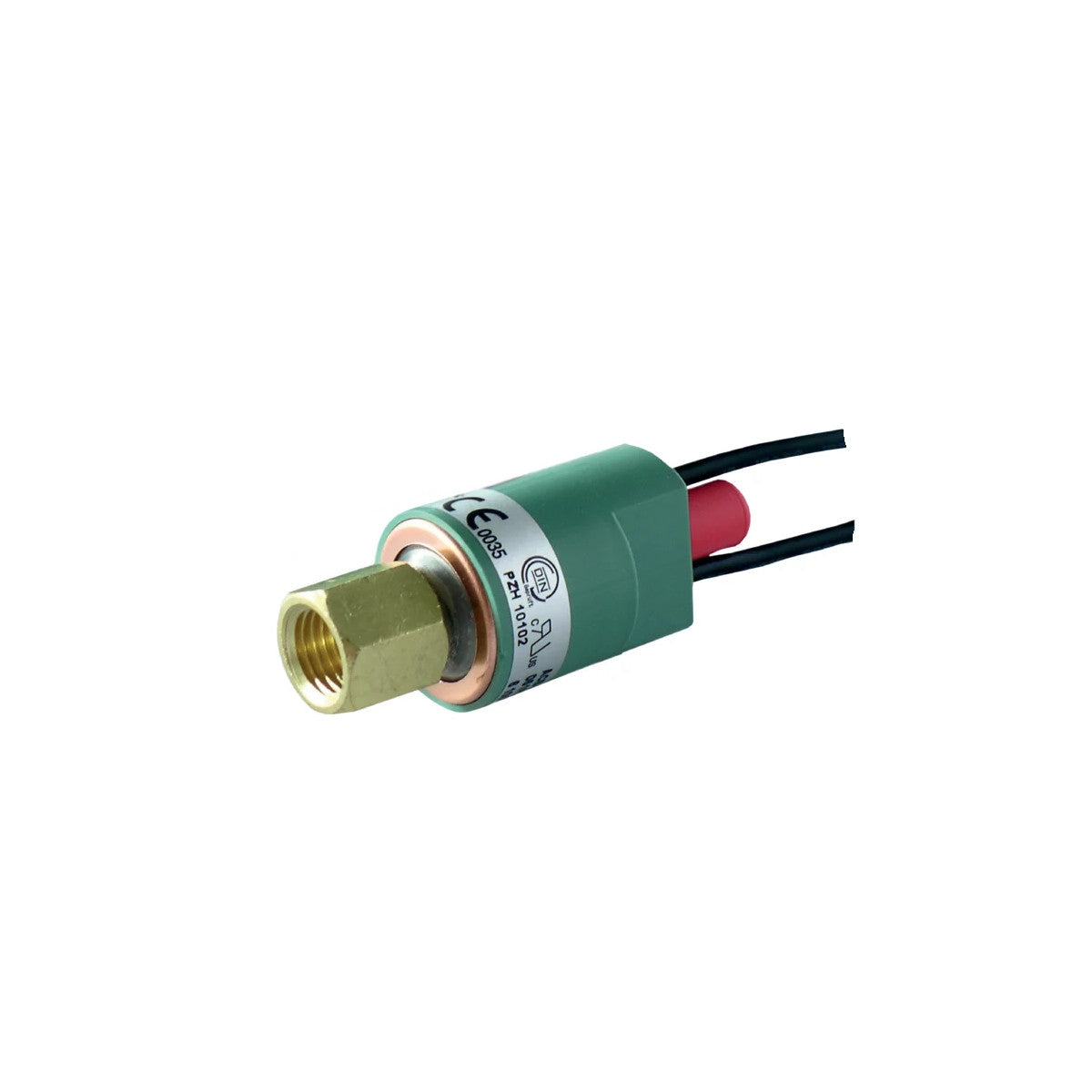

Mini Pressure Switch ACB-2UB461MW HD 42/33 bar

Pressure switch ACB-2UB461MW

Miniature pressure switch ACB-2UB461MW from Danfoss for the high-pressure range with 1/4" SAE flare connection (internal) with valve depressor.

ACB series cartridge pressure switches are small diaphragm pressure switches specially designed for use in refrigeration and air conditioning systems. The standard version of the ACB has a 6A contact system. Thanks to its robust construction, high reliability, compact dimensions and low weight, the controller can be mounted directly on the refrigeration system where pressure monitoring is required.

The control range of the ACB-2UB461MW is: 33 to 42 bar.

General features:

• Connection: 1/4" SAE flare connection (internal) with valve depressor
• Reset: manual
• Cut-out pressure: 42 bar
• Cut-in pressure: 33 bar
• Max. permissible operating pressure: 45 bar
• Protection class: IP65
• Max. medium temperature: +135°C
• Max. ambient temperature range: +85°C
• Manufacturer number: 061F9575
