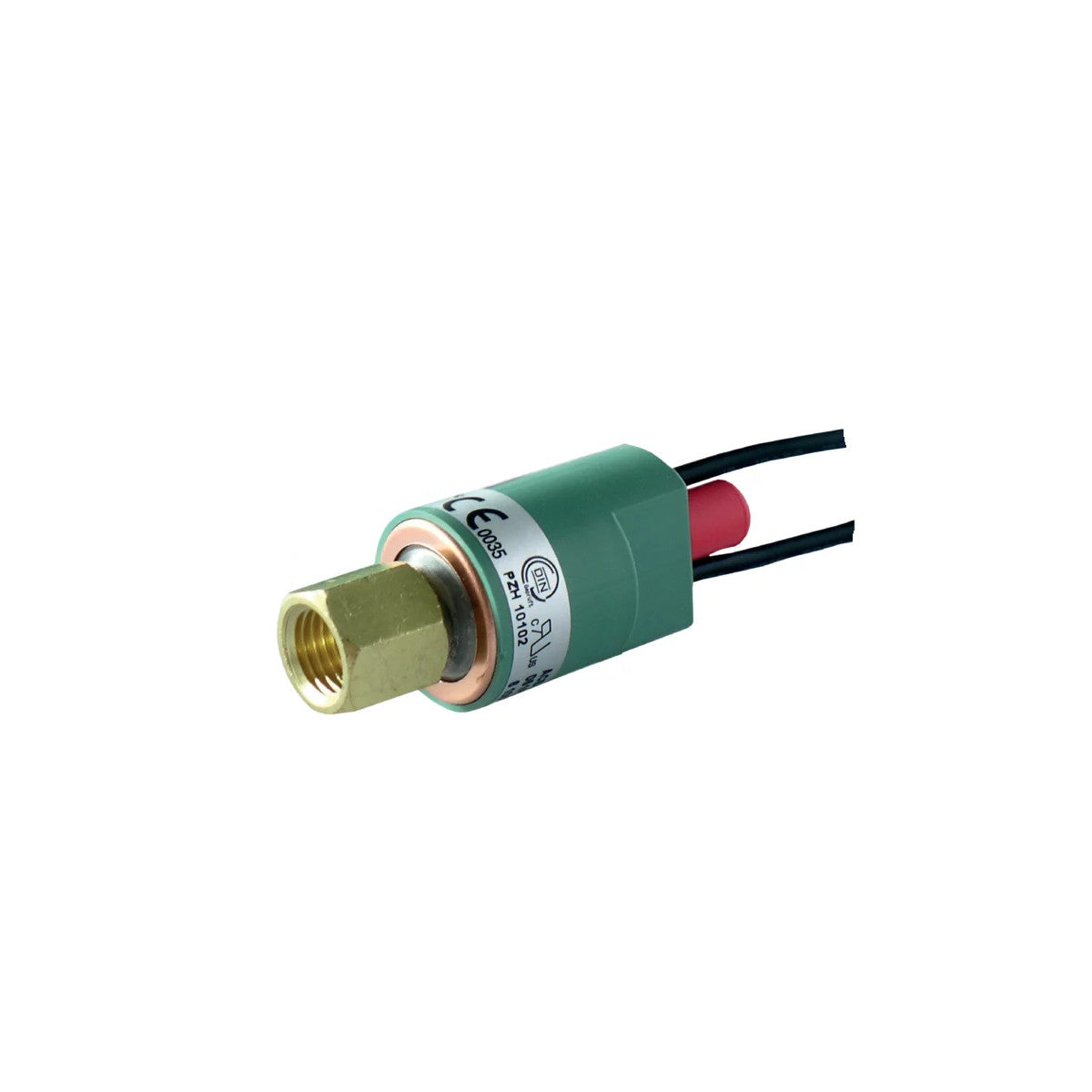

Miniature Pressure Switch ACB-2UA520W ND 0.5/1.5 bar

Pressure switch ACB-2UA520W

Miniature pressure switch ACB-2UA520W from Danfoss for the low-pressure range with 1/4" SAE flare connection internal with valve depressor.

The ACB series cartridge pressure switches are small diaphragm pressure switches specially developed for use in refrigeration and air conditioning systems. In the standard version, the ACB has a 6 A contact system. Thanks to its robust construction, high reliability, compact dimensions and low weight, the controller can be mounted directly at the point in the refrigeration system where pressure monitoring is required.

The control range of the ACB-2UA520W is: 1.5 to 0.5 bar.

General features:

• Connection: 1/4" SAE flare connection internal with valve depressor
• Reset: automatic
• Cut-out pressure: 0.5 bar
• Cut-in pressure: 1.5 bar
• Max. permissible operating pressure: 45 bar
• Protection class: IP65
• Max. medium temperature: +135°C
• Max. ambient temperature range: +85°C
• Manufacturer number: 061F7520
