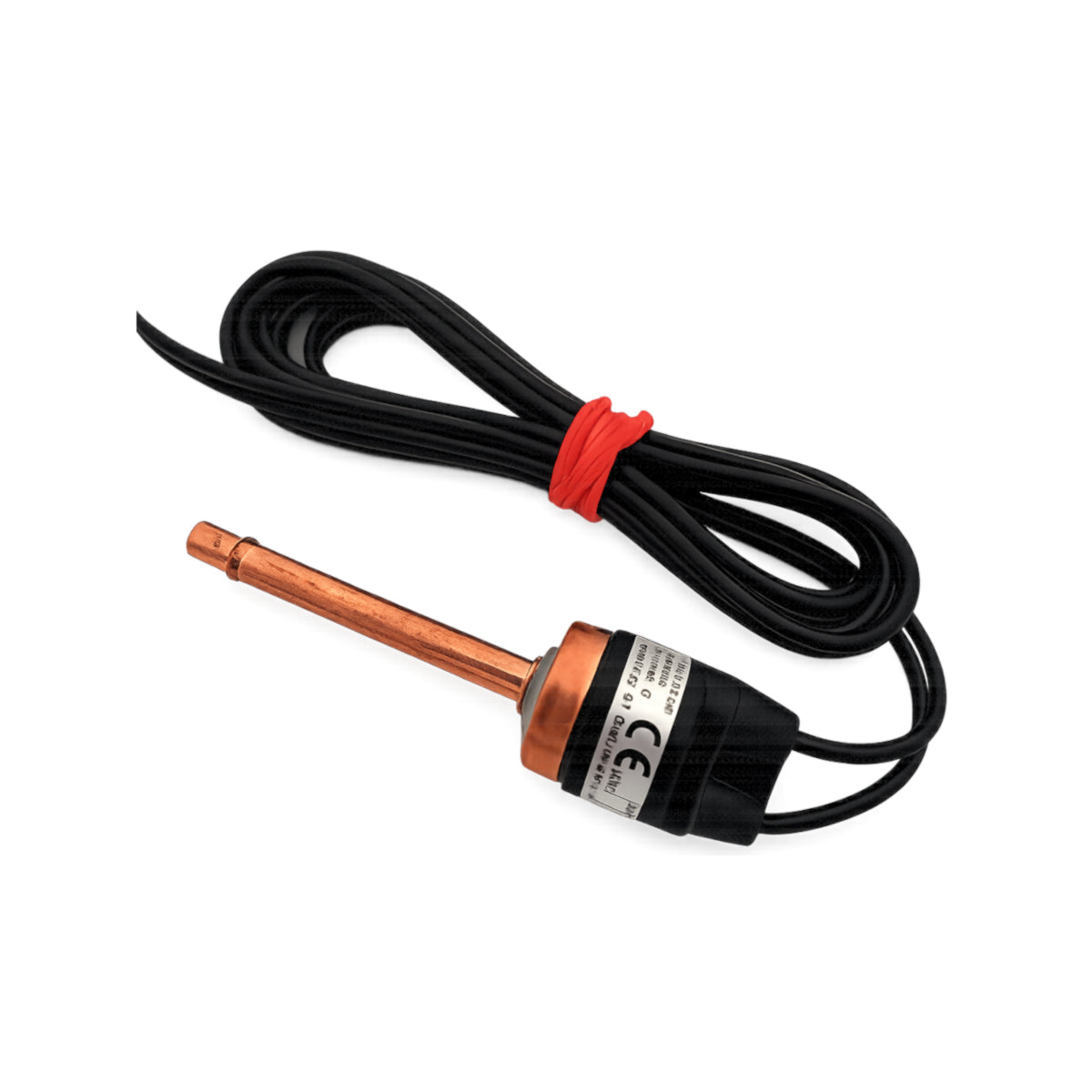

Miniature pressure switch ACB-2UA518W NC 0.5/1.5 bar

Pressure switch ACB-2UA518W

Miniature pressure switch ACB-2UA518W from Danfoss for low-pressure range with 6mm solder/ODF connection.

ACB series cartridge pressure switches are small diaphragm pressure switches specially developed for use in refrigeration and air conditioning systems. In the standard version, the ACB has a 6A contact system. Thanks to its robust construction, high reliability, compact dimensions and low weight, the controller can be mounted directly at the point in the refrigeration system where pressure monitoring is required.

The control range of the ACB-2UA518W is: 1.5 to 0.5 bar.

General features:

• Connection: 6mm solder/ODF
• Reset: automatic
• Cut-out pressure: 0.5 bar
• Cut-in pressure: 1.5 bar
• Max. permissible operating pressure: 45 bar
• Protection class: IP65
• Max. medium temperature: +135°C
• Ambient temperatures: +85°C
• Manufacturer number: 061F7518
