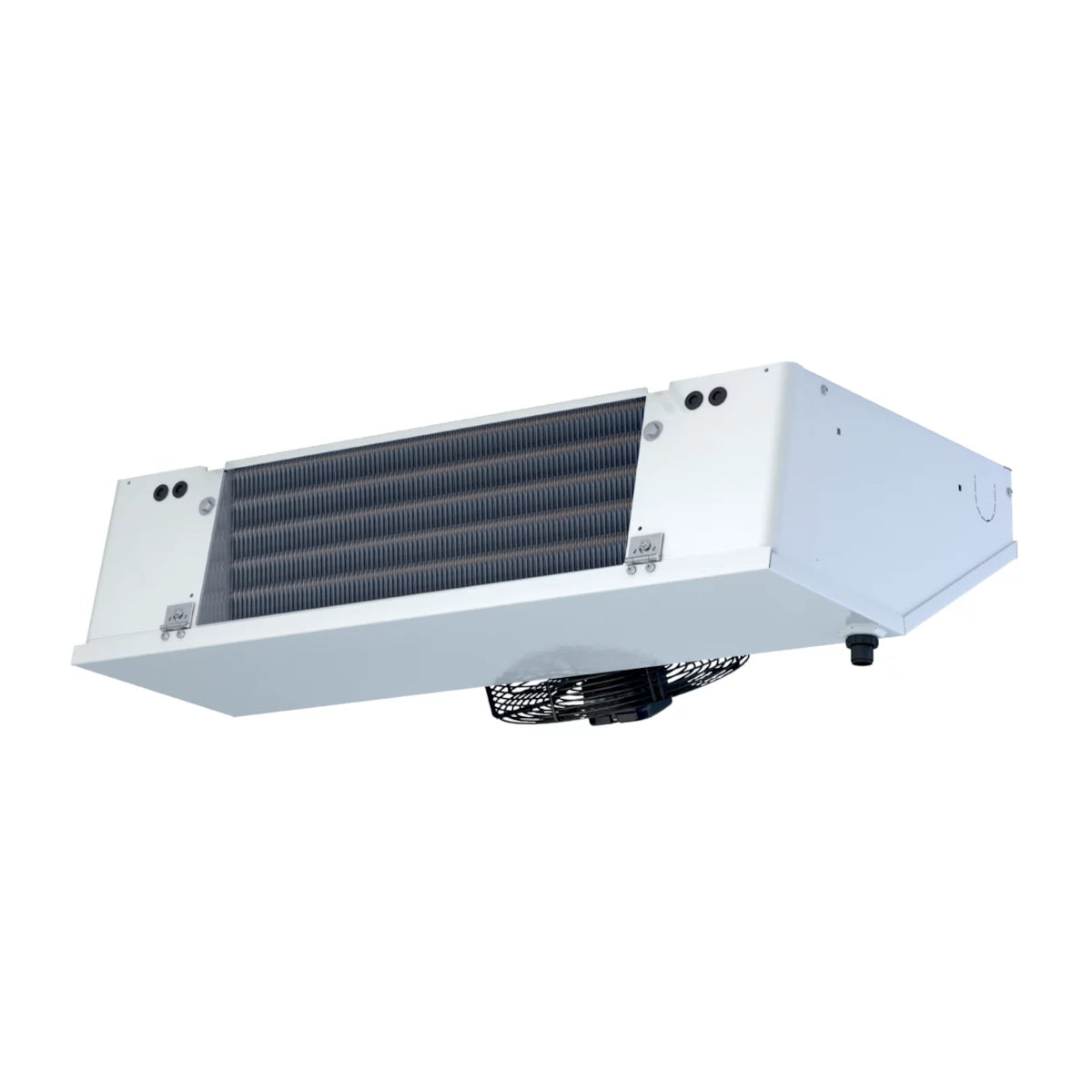

Kelvion air cooler / Ceiling evaporator MCK-301-4BE-HX32-1 with defrost heater
The Kelvion air cooler is a powerful solution for a wide range of commercial applications, featuring a defrost heating system. Its compact design makes it ideal for complex cooling tasks in small and low-ceilinged spaces. The MCK is capable of withstanding the most challenging environmental conditions, such as frequent door openings, open sales areas, or demands for low noise levels. The Kelvion MCK-301-4BE-HX32-1 replaces the Küba ceiling fan model DEBE 071D.
Technical details of the evaporator:
- Power: 1,53 kW at DeltaT = 8K To = 0°C
- Power: 1,22 kW at DeltaT = 7K To = -18°C
- Lamella spacing: 7.0 mm
- Cooling surface area: 5,4 m²
- Air flow rate: 1280 m³/h
- Throwing distance / Blowing distance: 10 m
- Inlet/outlet connections: 12 mm / 15 mm
- Number x dimeter of fans: 1 x 300 mm
- Fan voltage: 230 V 50/60 Hz
- Fan power: 77 W
- Current consumption: 0.35 A
- Height, width, depth, length: 260 mm, 1080 mm, 660 mm, 672 mm
- OEM number: 100742486
Details of the design
- Aluminum housing, steel sendzimir
- Food grade
- Easy to clean due to smooth, powder-coated surface
- Foldable and removable drip tray
- Removable side panels
- Integrated additional intermediate plate in the drip tray
- Axial fans with 300 mm diameter
- food-safe thanks to aluminum housing
- easily accessible components for optimal cleaning
- compact & flat design
