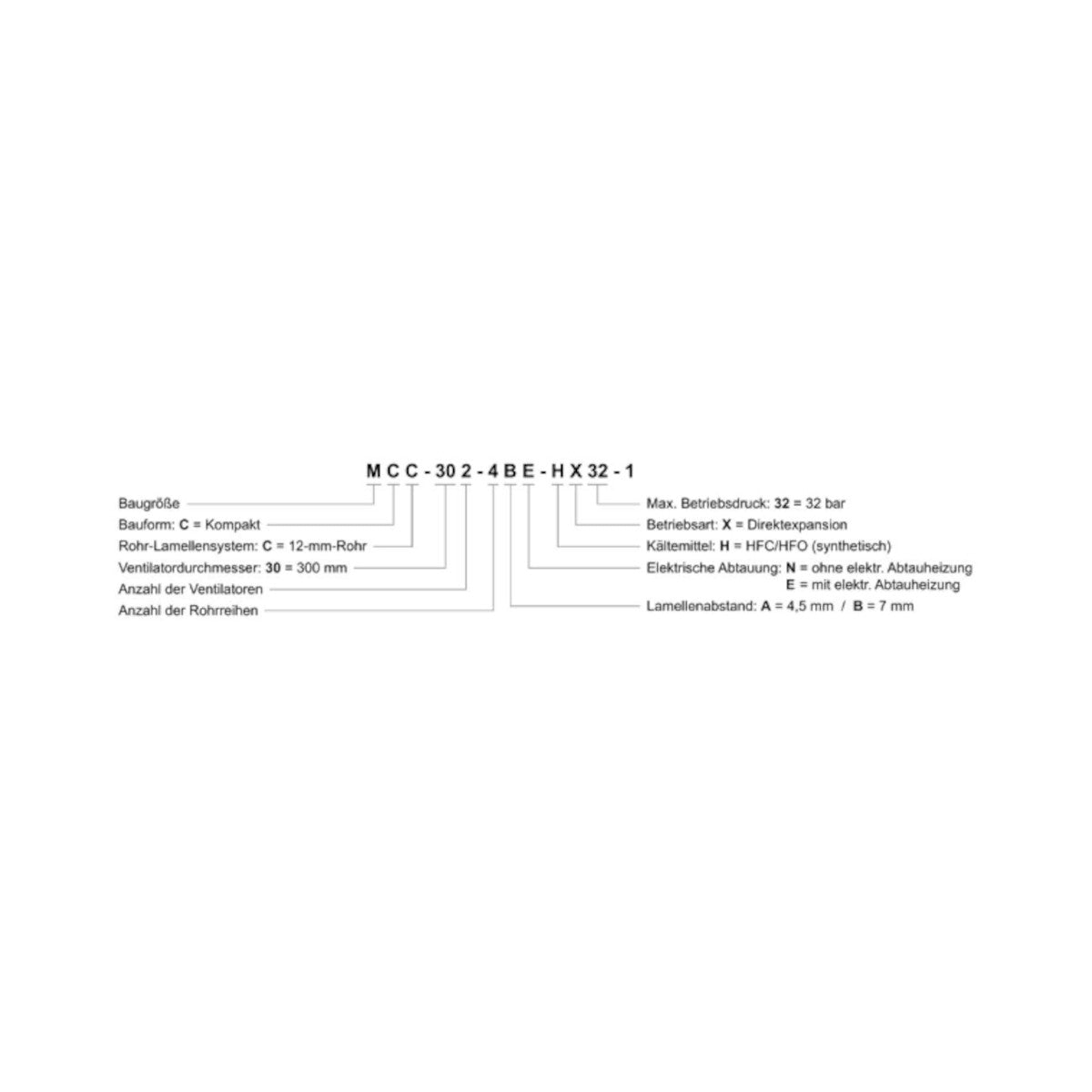

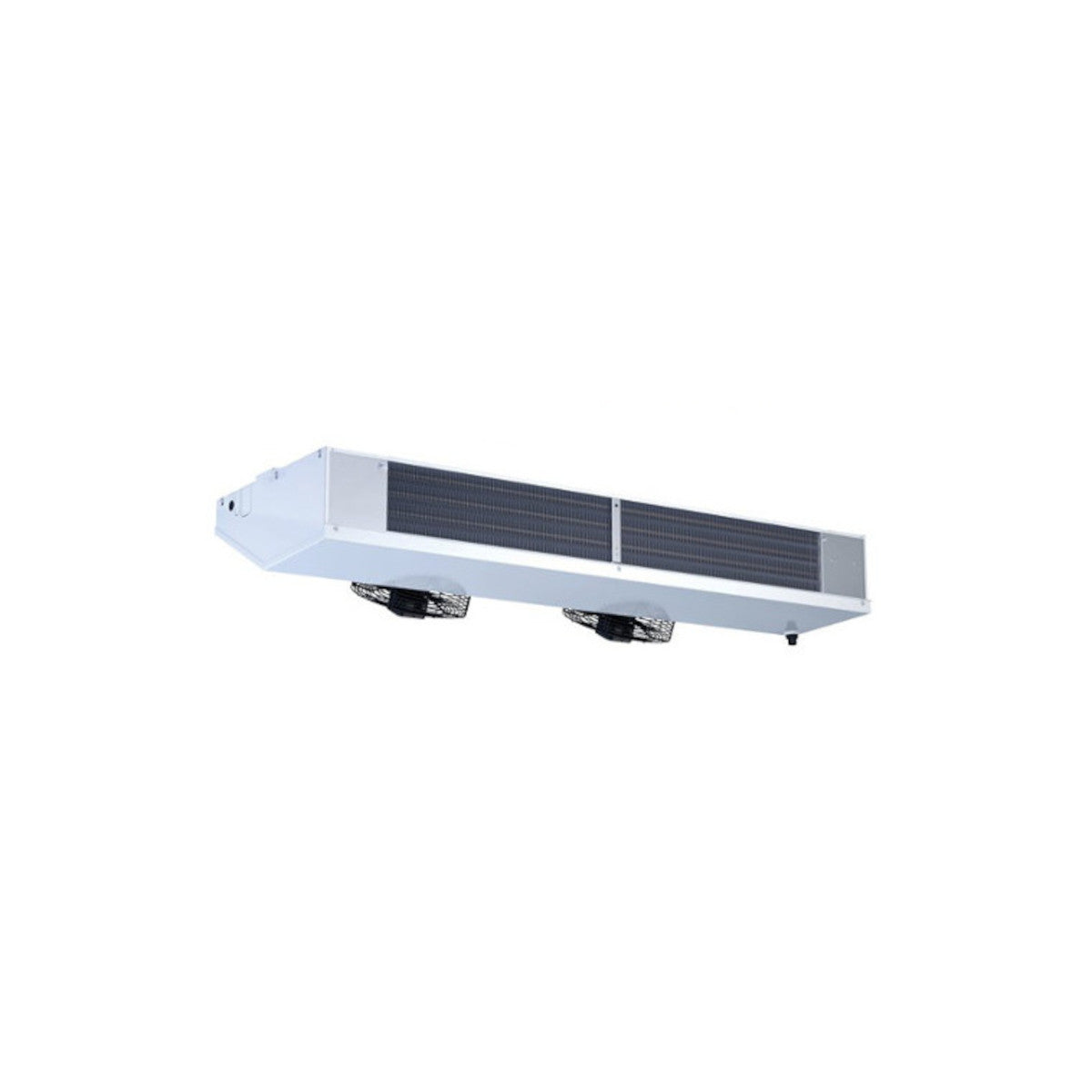

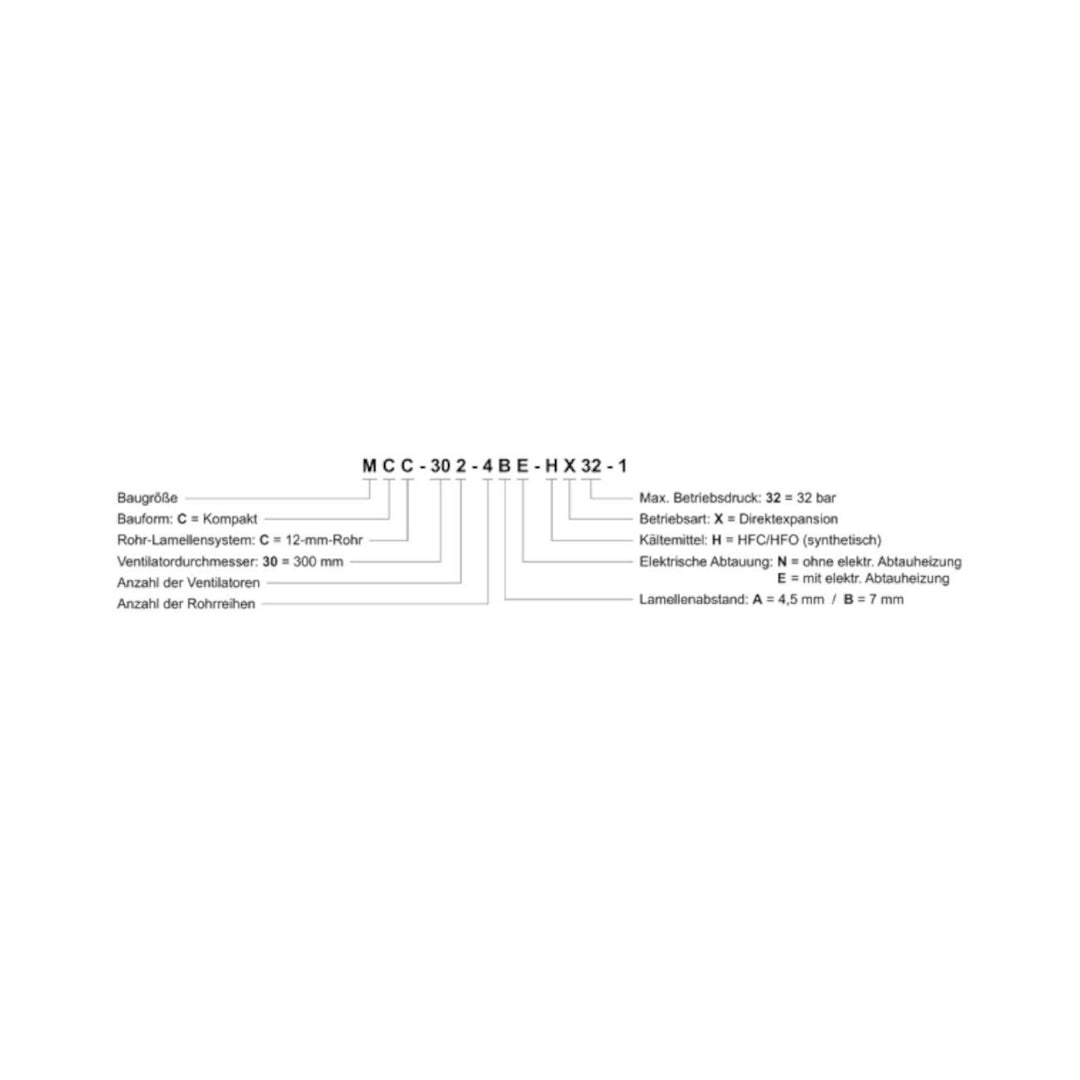

Kelvion ceiling air cooler MCC-302-SAE-HX32-1 with defrost heater
Efficient air cooler from Kelvion with defrost heater. The device can be easily installed due to the folding fan area and detachable side panels. Its compact design also saves space. The Kelvion MCC-302-SAE-HX32-1 replaces the Küba ceiling air cooler model DFAE 052D.
Technical details of the evaporator:
- Power 5,1 kW at DeltaT = 10K To = +10°C
- Power 3,4 kW at DeltaT = 8K To = 0°C
- Energy efficiency class: D
- Lamella spacing 4,5 mm
- Cooling surface area: 13,8 m²
- Air flow: 1900 m³/h
- Throw distance/Blow distance: 11 m
- Inlet/outlet connections: 10 mm / 18 mm
- Number x diameter of fans: 2 x 300 mm
- Fan voltage: 230 V 50/60 Hz
- Fan power: 75 W
- Current consumption: 0,35 A

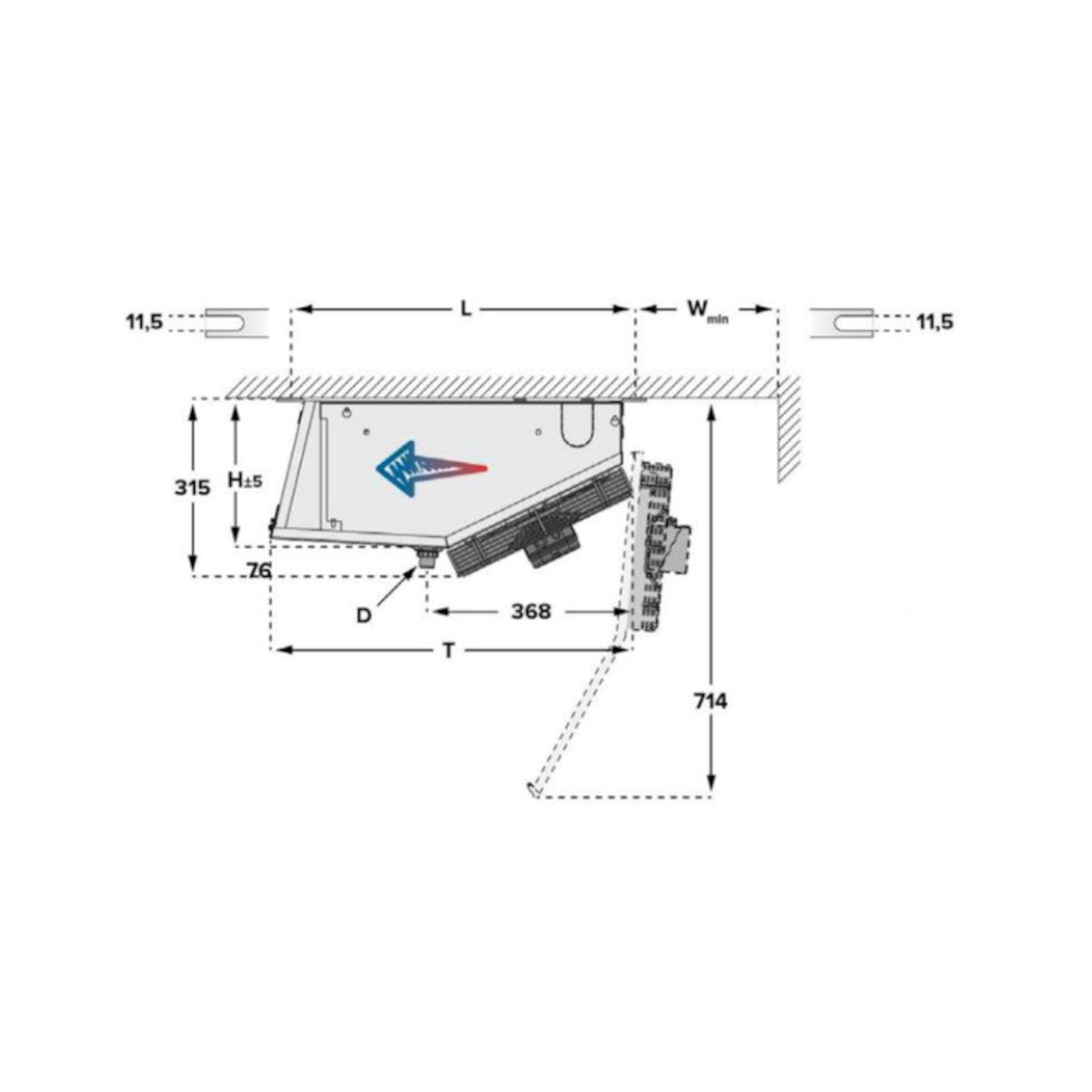

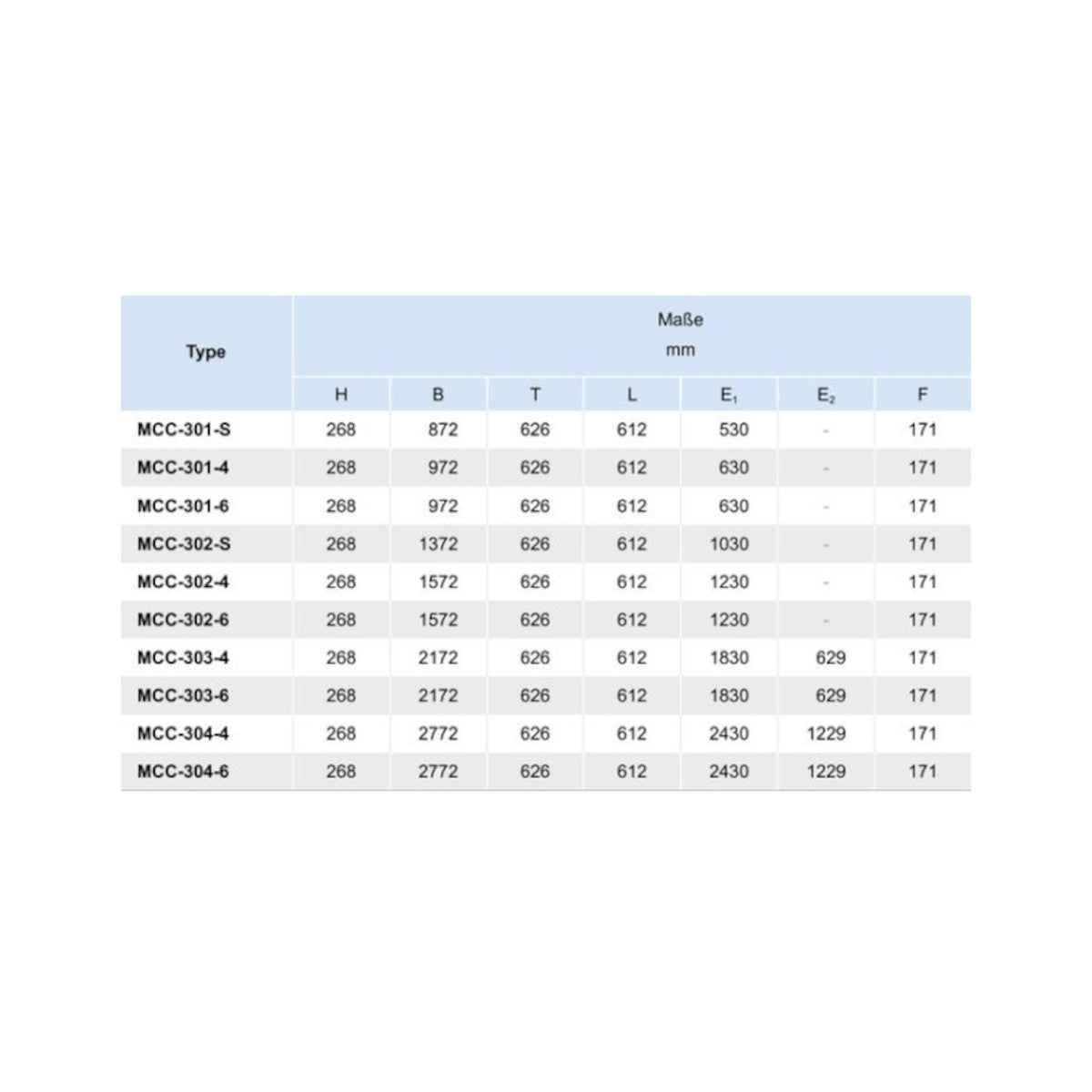

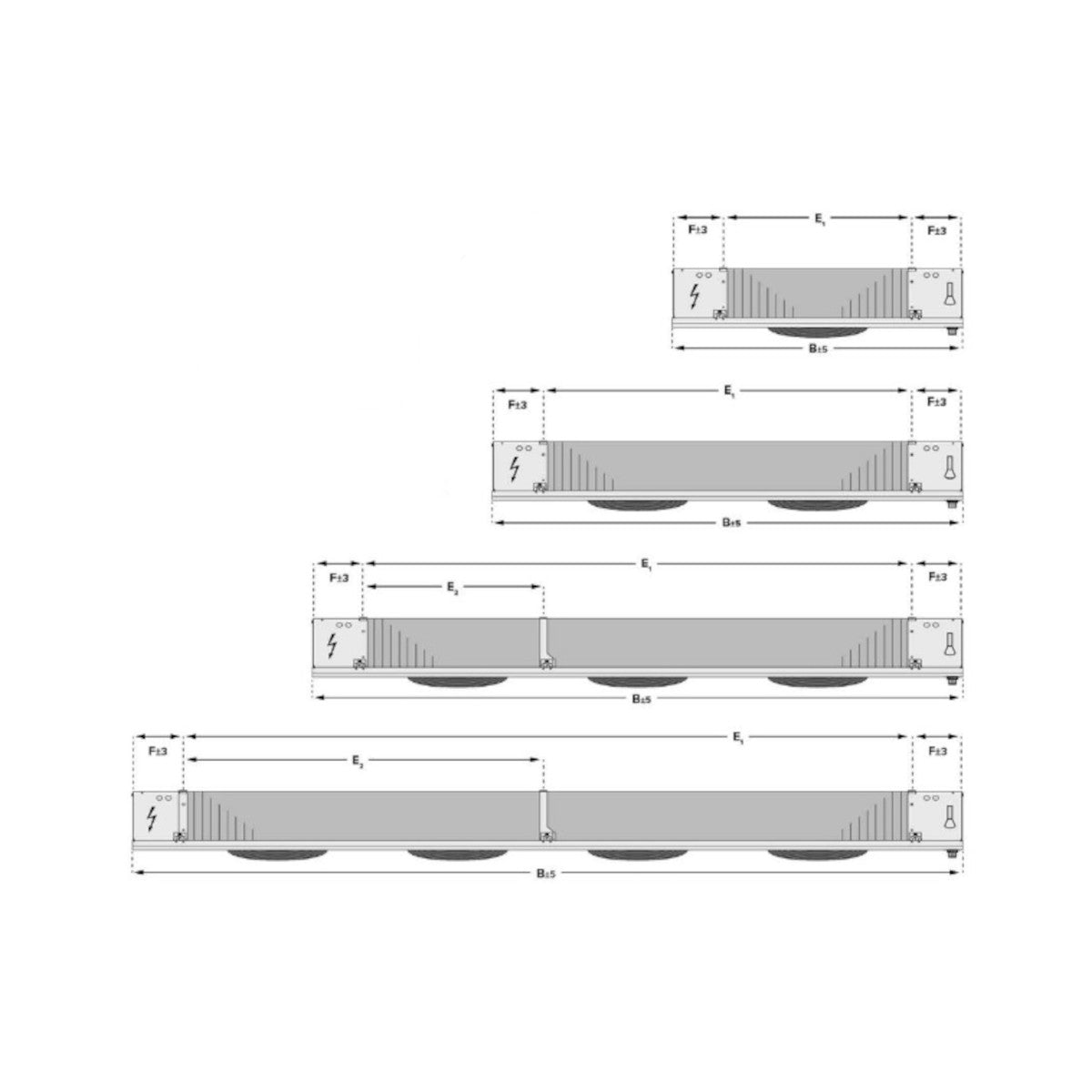

- Height, width, depth, length: 268 mm, 1372 mm, 626 mm, 612 mm
- OEM number: 100742471
Details of the execution:
- Aluminum housing, sendzimir steel
- Food-safe
- Easy to clean due to smooth, powder-coated surface
- Folding and detachable drip tray
- Detachable side panels
- Integrated additional intermediate plate in the drip tray
- Heat exchanger with aluminum fins and sheet metal
- Axial fan in a pushing design with blade diameter: 300 mm
- food-safe thanks to aluminum casing
- easily accessible components for optimal cleaning
- compact & flat design
