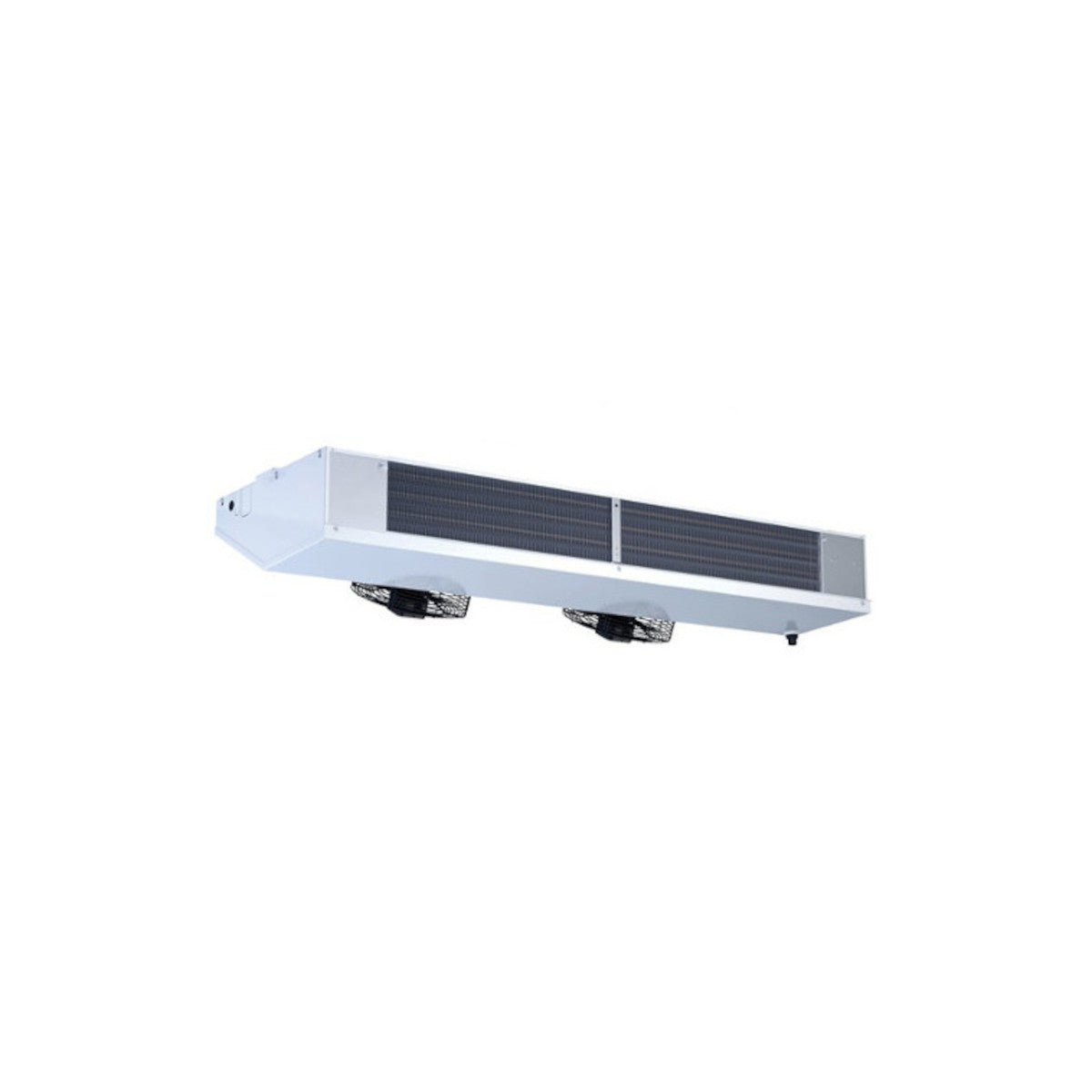

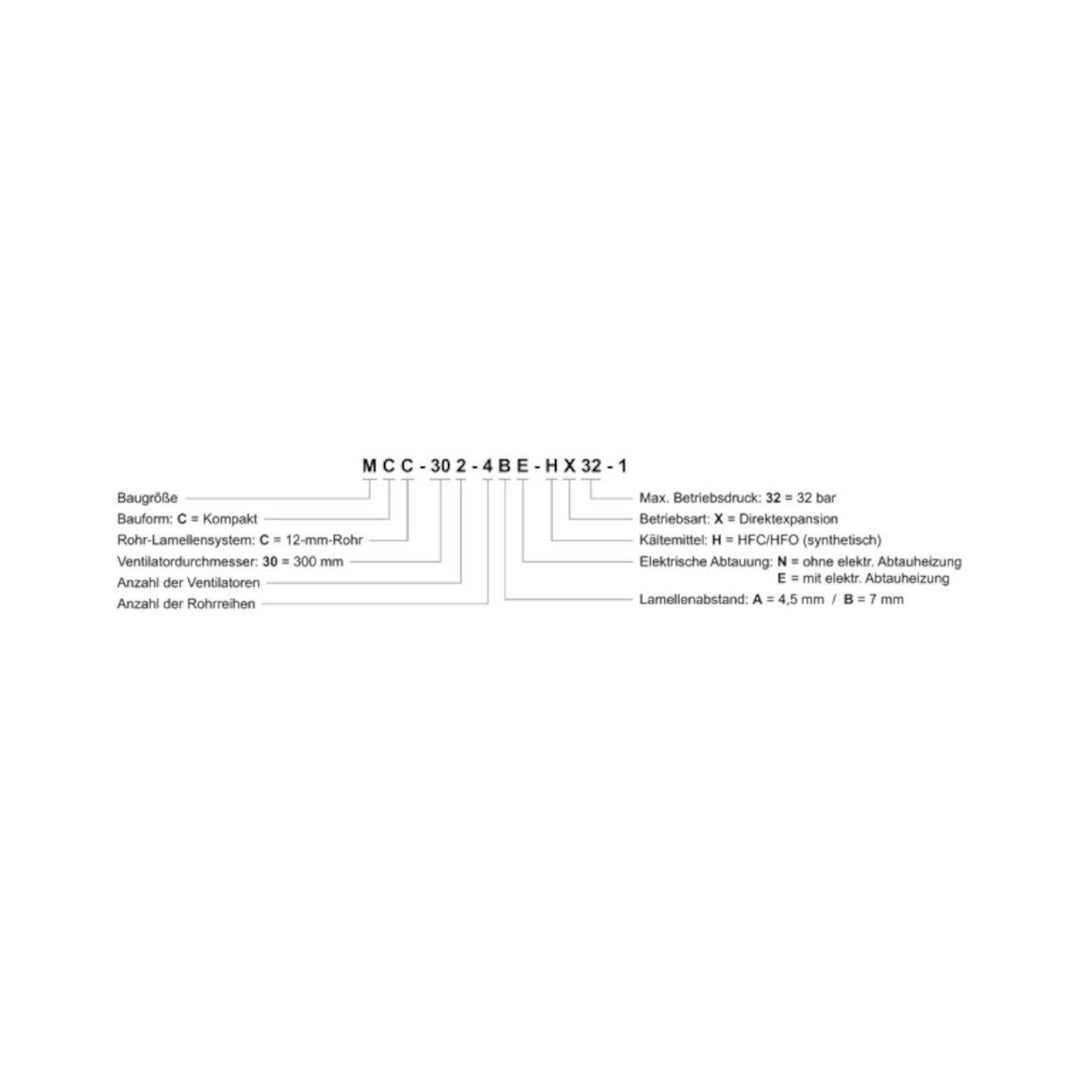

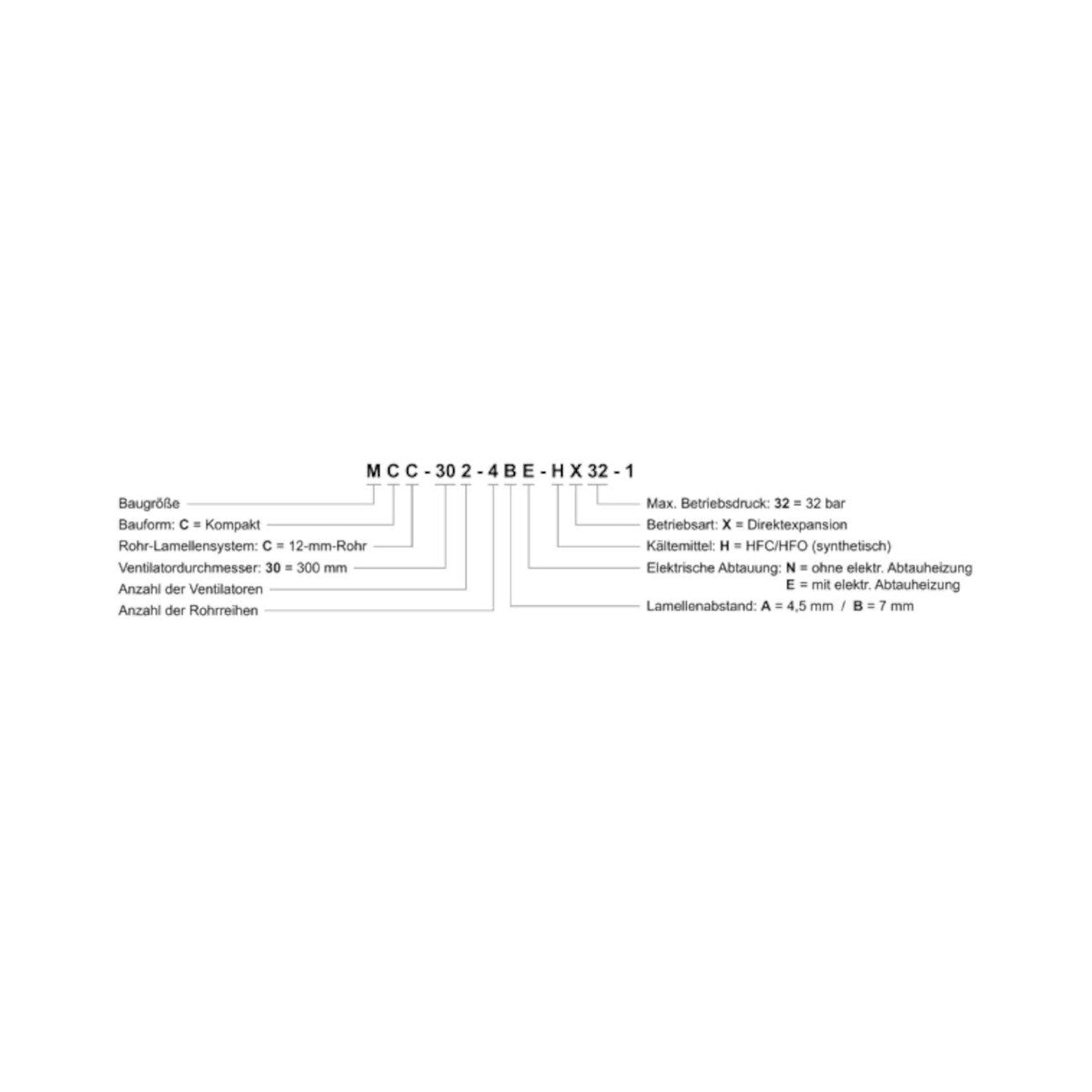

Kelvion air cooler / Ceiling evaporator MCC-302-6BN-HX32-1 without defrost heater
Efficient air cooler from Kelvion without defrost heating. The device can be easily installed due to the foldable fan area and removable side panels. Its compact design also saves space. The MCC-302-6BN-HX32-1 from Kelvion replaces the Küba ceiling air cooler model DFB 072D.
Technical details of the evaporator:
- Power 4,1 kW at DeltaT = 8K To = 0°C
- Power 3,5 kW at DeltaT = 7K To = -18°C
- Energy efficiency class: C
- Fins spacing 7 mm
- Cooling surface: 16,5 m²
- Air flow: 2260 m³/h
- Throw distance / air outlet distance: 13 m
- Inlet / outlet connections: 12 mm / 22 mm
- Number x diameter of fans: 2 x 300 mm
- Fan voltage: 230 V 50 Hz
- Fan power: 75 W
- Current consumption: 0,35 A

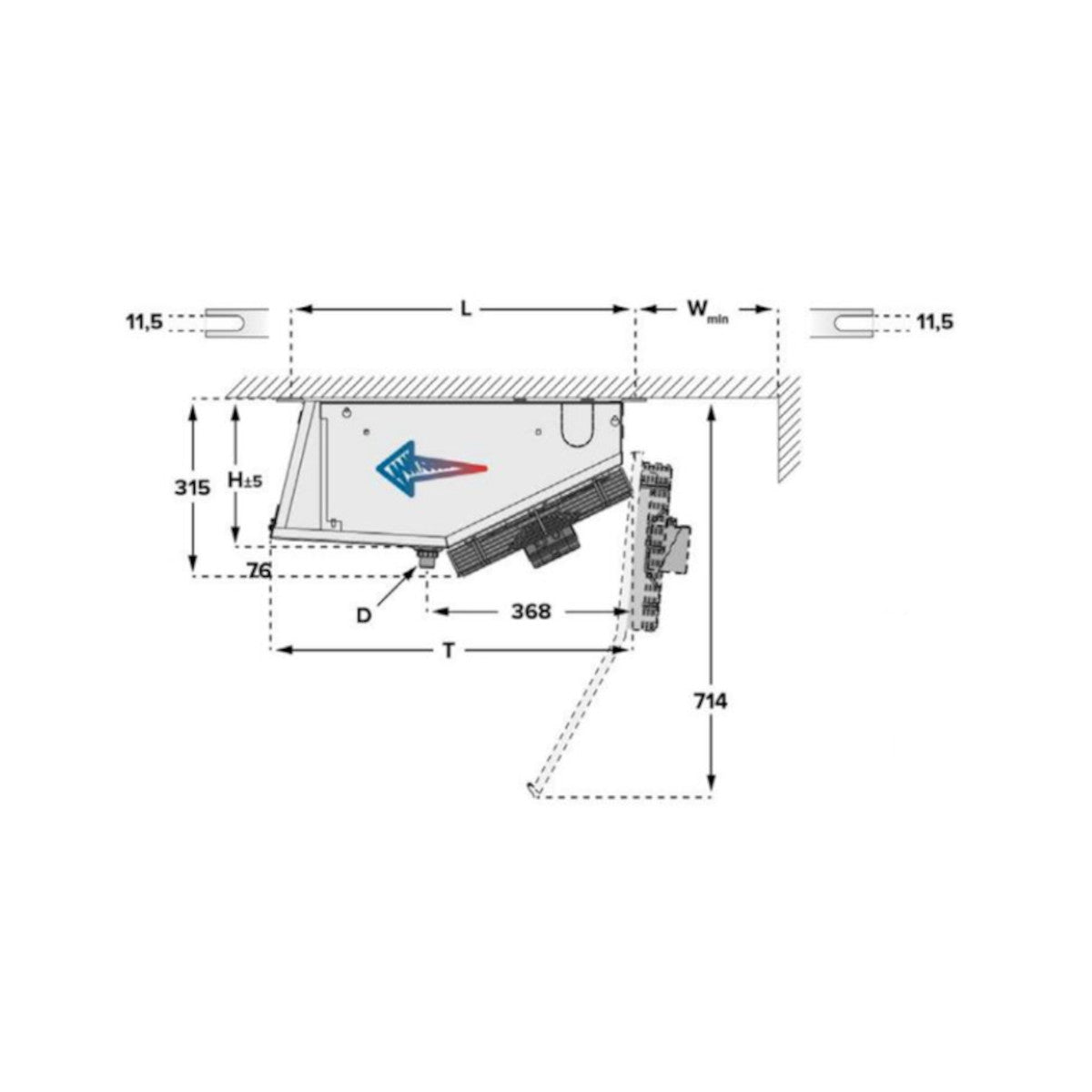

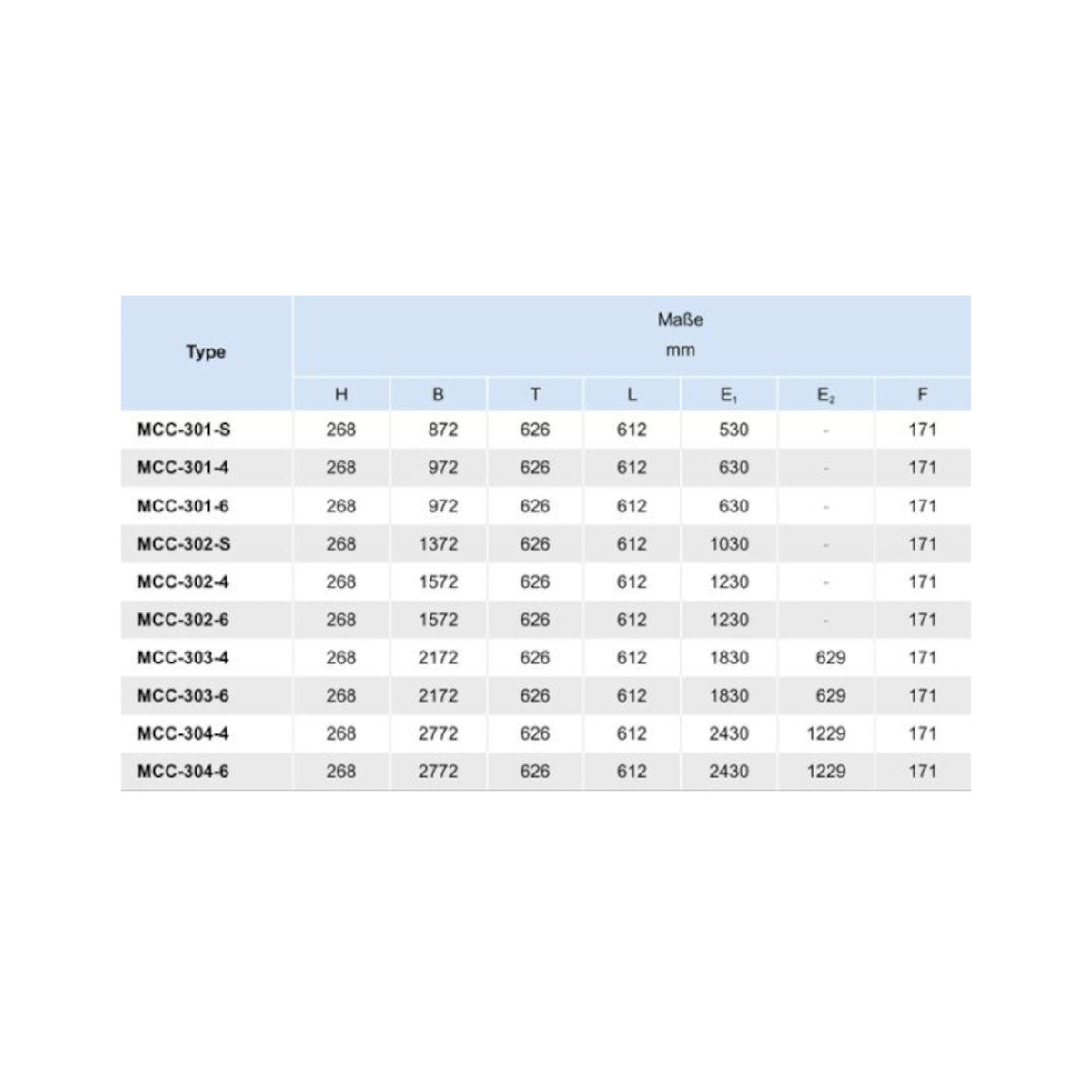

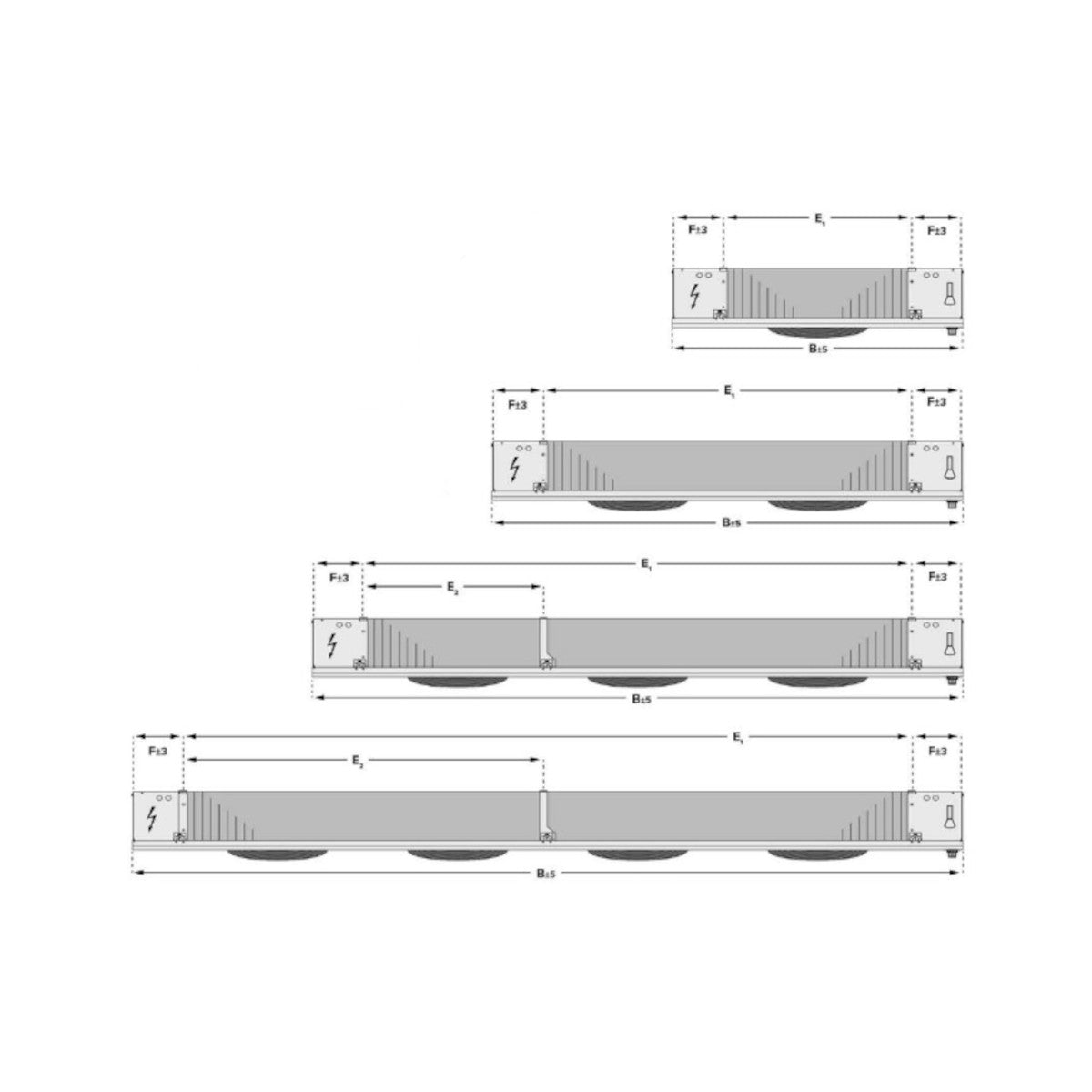

- Height, width, depth, length: 268 mm, 1572 mm, 626 mm, 612 mm
- OEM number: 100555867
Details of the design:
- Housing made of aluminum, steel sendzimir
- Food grade
- Easy to clean due to smooth, powder-coated surface
- Foldable and removable drip tray
- Removable side panels
- Integrated additional intermediate plate in the drip tray
- Heat exchanger with fins and aluminum sheet
- Axial fan in pushing design with blade diameter: 300 mm
- food-safe thanks to aluminum housing
- easily accessible components for optimal cleaning
- compact & flat design
