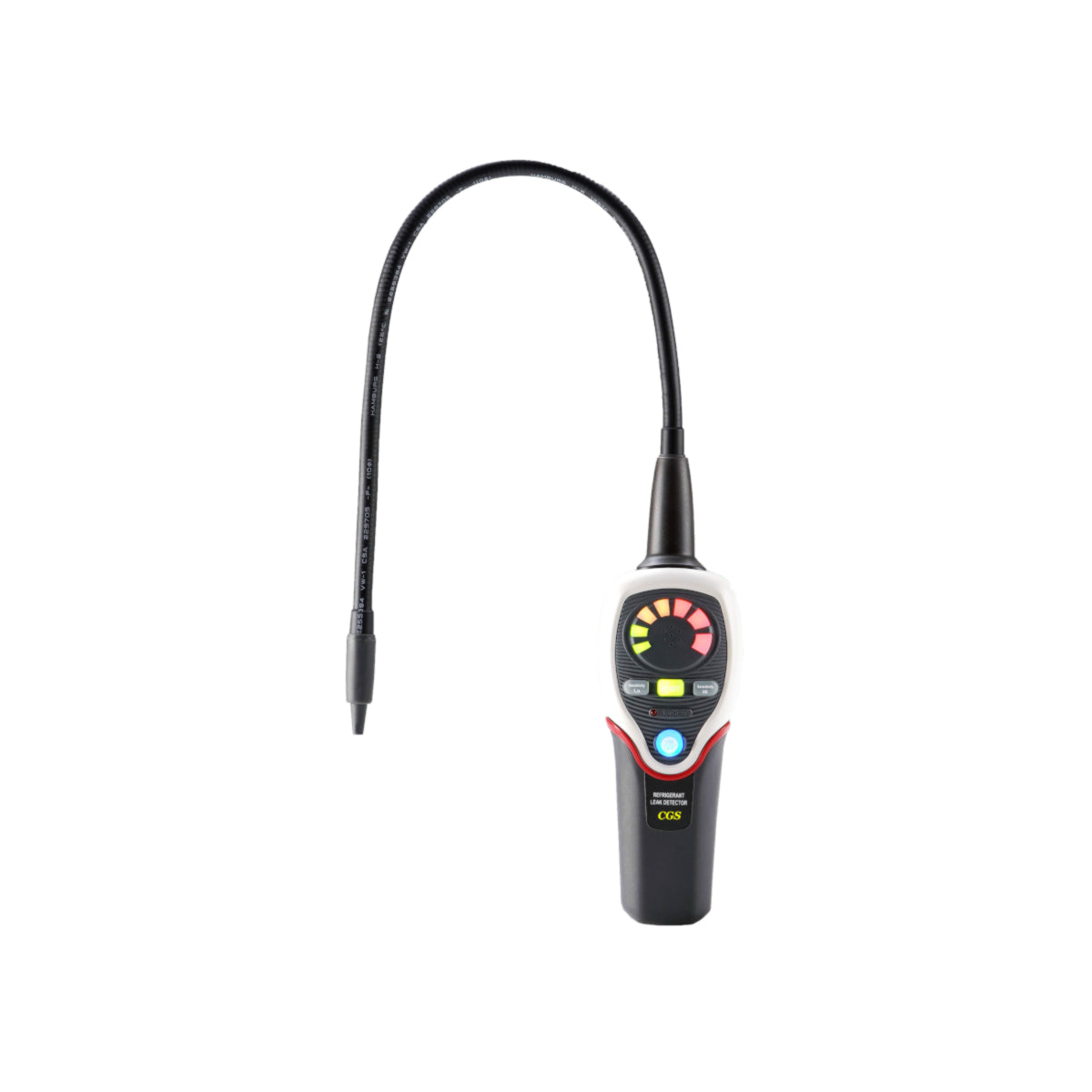

LS4000 Leak Detector CGS

Leak Detector LS4000 for Refrigerants and Forming Gas CGS

CGS LS4000 leak detector for locating leaks in refrigeration and air conditioning systems. Suitable for refrigerants and forming gas. The highly intelligent halogen leak detector is ergonomically shaped and features an LED display. It is easy to operate, extremely reliable, and accurate in indicating leaks. It comes in a practical carrying case.

Technical Data

• Detects forming gas and all refrigerants (CFCs, HCFCs, HFCs, HFOs, NH3, HC, tracer gas in 95% N2, 5% H2 mixture)
• Highly visible, individual LEDs indicate possible and, if applicable, the size of leaks
• 3-color display of the set sensitivity
• Simplest operation and working method by pressing buttons
• Durable, highly effective suction pump generates a uniform suction flow past the sensor, ensuring particularly accurate leak detection
• Semiconductor gas sensor
• Automatic background compensation
• Alarm method: Buzzer, 3-color LED indicator
• Power supply: 5 VDC (4 x AA, 1.50 V battery) Optional: Adapter 220 V to 5 VDC
• Low battery indicator
• Automatic shutdown after approx. 10 minutes
• Max. sensitivity: R-134a, R-22, up to 3 g/year
• Max. sensitivity for other refrigerants: up to 4 g/year
• Sensor tip lifespan: approx. 1 year
• Operating temperature: 0°C to 40°C
• Battery life: approx. 7 hours
• Response time: immediate
• Sensor tip warm-up time: approx. 45 seconds
• Reset time: 2 seconds
• Weight: approx. 400 g
• Dimensions: 173 mm x 66 mm x 56 mm
• Length of flexible probe: 40 cm
