Product description

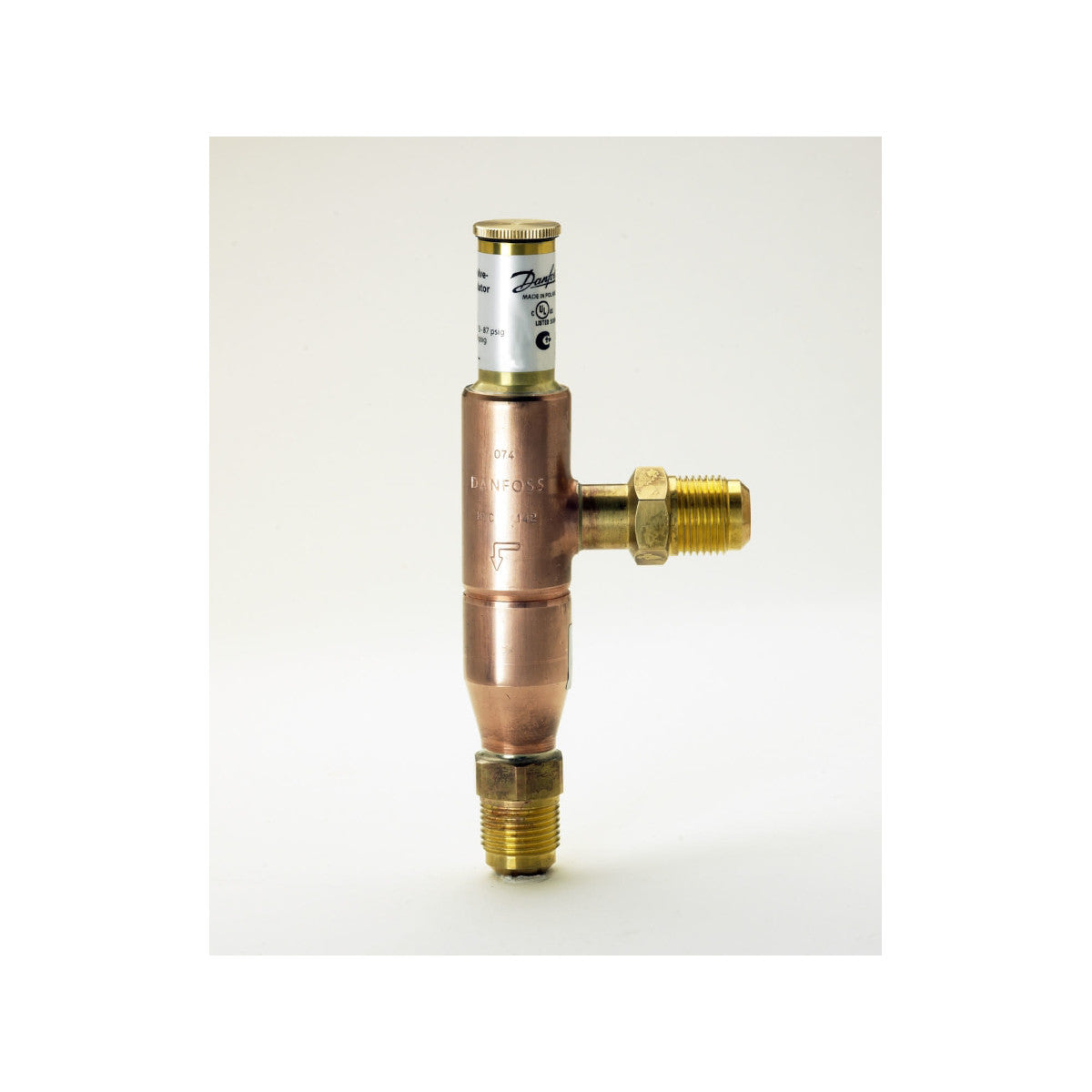

Capacity regulator CPCE 12 Solder 12 mm Danfoss 034N0082

CPCE capacity regulators adapt the compressor capacity to the actual evaporator load. They are designed for installation in a bypass line between the high and low pressure sides of the refrigeration system for hot gas injection between the evaporator and the thermostatic expansion valve. The injection should be done by an LG hot gas mixer.

Technical data

max. permissible operating pressure: 28 bar
Temperature range: -50°C to +140°C
Refrigerants: R134a / R404A / R507A / R407C
Suitable for flammable refrigerants (CPCE 12 to CPCE 22 with solder connections and LG 12 - 16 to LG 12 - 22)
Control range: 0 to 6 bar
Factory setting: 0.4 bar
max. differential pressure: 18 bar
with control pressure connection 1/4" SAE / 7/16"-20UNF for the control line
Connection: 12.70mm ODF
Nominal capacity: R134a: 7.9kW, R404A/R507A: 16.4 kW, R407C: 19.0 kW
