Soldering torch 90° K5001 i/a 1 1/8" K65

Soldering torch 90° K5001 i/a 1 1/8" K65

90° brazing torch K5001 made of copper 1 1/8" i/a especially for high-pressure CO₂ applications.
excl. VAT incl. VAT
Regular price 28,90 € 34,39 € incl. VAT
Sale price 28,90 € excl. VAT 34,39 € incl. VAT
Sale Sold out
Available immediately
1–3 working days
Quantity

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

Official EU Legal Guarantee Notice

SKU 1940024 Manufacturer Conex Bänninger

  • 12 months material warranty
  • Purchase on account
  • 14-day return policy
View full details

Product description

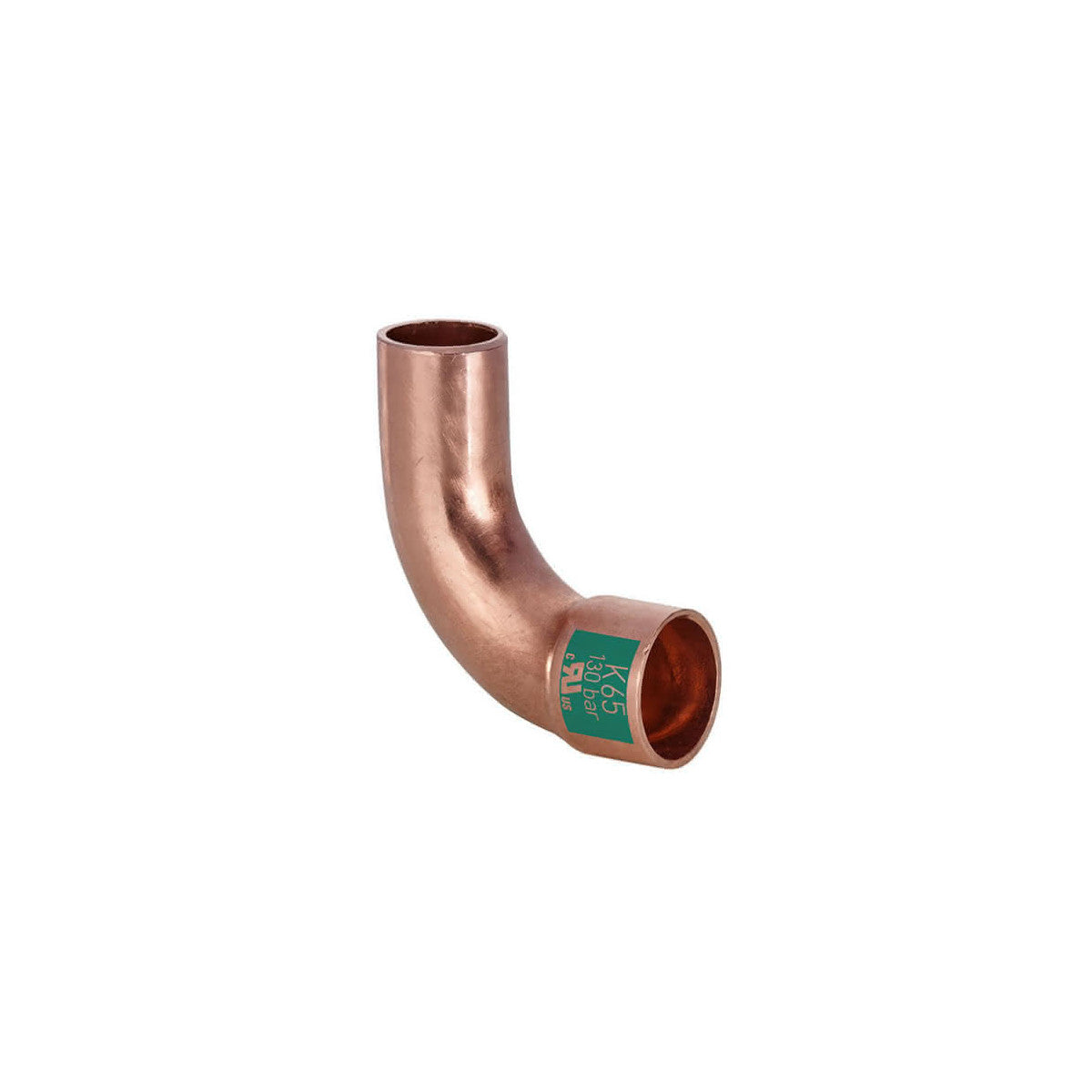

Copper brazing bend 90° K5001 1 1/8" i/a K65

Copper brazing bend with a 90° bend and an inner/outer diameter of 1 1/8". The capillary brazing fitting belongs to the K65 series by Conex Bänniger. Copper brazing fittings from this series are suitable for applications in air conditioning and refrigeration systems, especially in connection with high-pressure CO2 (R-744). Material designation Wieland K65, EN CuFe2P CW107C, UNS C19400.

The K65 pipe system, developed in collaboration with Wieland, was specially designed for the increasing use of the environmentally friendly refrigerant CO₂ (R 744). Since CO₂ applications operate at very high operating pressures, they place special demands on the pipe system – especially on the pipe wall thickness.

The high-strength copper material K65 is characterized by its high mechanical strength and thus offers a safe, economical, and reliable solution for high-pressure applications with operating pressures of up to 130 bar.

General characteristics

  • Angle: 90 degrees
  • Diameter: 1 1/8"
  • Max. operating pressure: 130 bar
  • Max. working pressure at 20 °C: 130 bar
  • Shipping class: Parcel
  • Brand: Conex Bänninger
  • Weight: 0.1 kg
