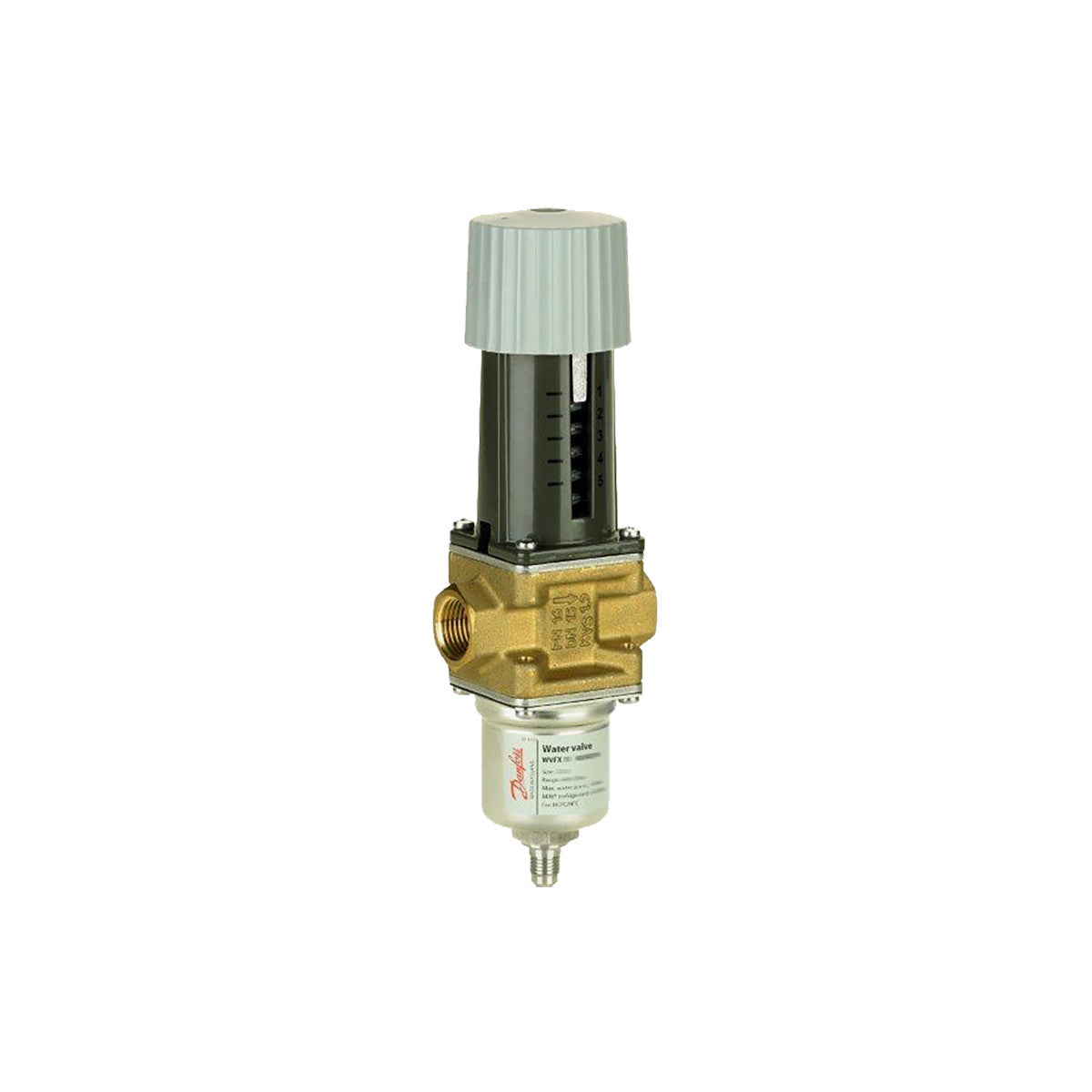

Cooling water controller WVFX20 003N3105 Danfoss

Name: Cooling water controller WVFX20 003N3105 Danfoss
Brand: Danfoss
SKU: 9051051
Price: 240.00 EUR
Availability: InStock

Danfoss Cooling Water Regulator WVFX20 003N3105 | 4 - 23 bar

excl. VAT incl. VAT

240,00 € 285,60 € incl. VAT

240,00 € excl. VAT 285,60 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

plus shipping costs

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

SKU 9051051 Manufacturer Danfoss Datasheet

Danfoss Cooling Water Regulator WVFX20 003N3105 | 4 - 23 bar

Pressure-controlled water valves are used to regulate the amount of cooling water in refrigeration systems with water-cooled condensers.

direct operated valve
Opening differential pressure: max. 10 bar
Refrigerant (condenser side): R134a / R404A / R507A / R407C / R410A
Media (liquid side): fresh water, neutral brine
Medium temperature range: WVFX 10-25: -25°C to +130°C, WVFX 32-40: -25°C to +90°C
Setting range: 4.0 to 23.0 bar
max. operating pressure refrigerant side: 26.4 bar
max. operating pressure water side: 16 bar
Refrigerant side connection: 7/16"-20 UNF, 1/4" SAE
Water side connection: G 3/4" inch
Length: 90mm
kv value: 3.4m3/h
