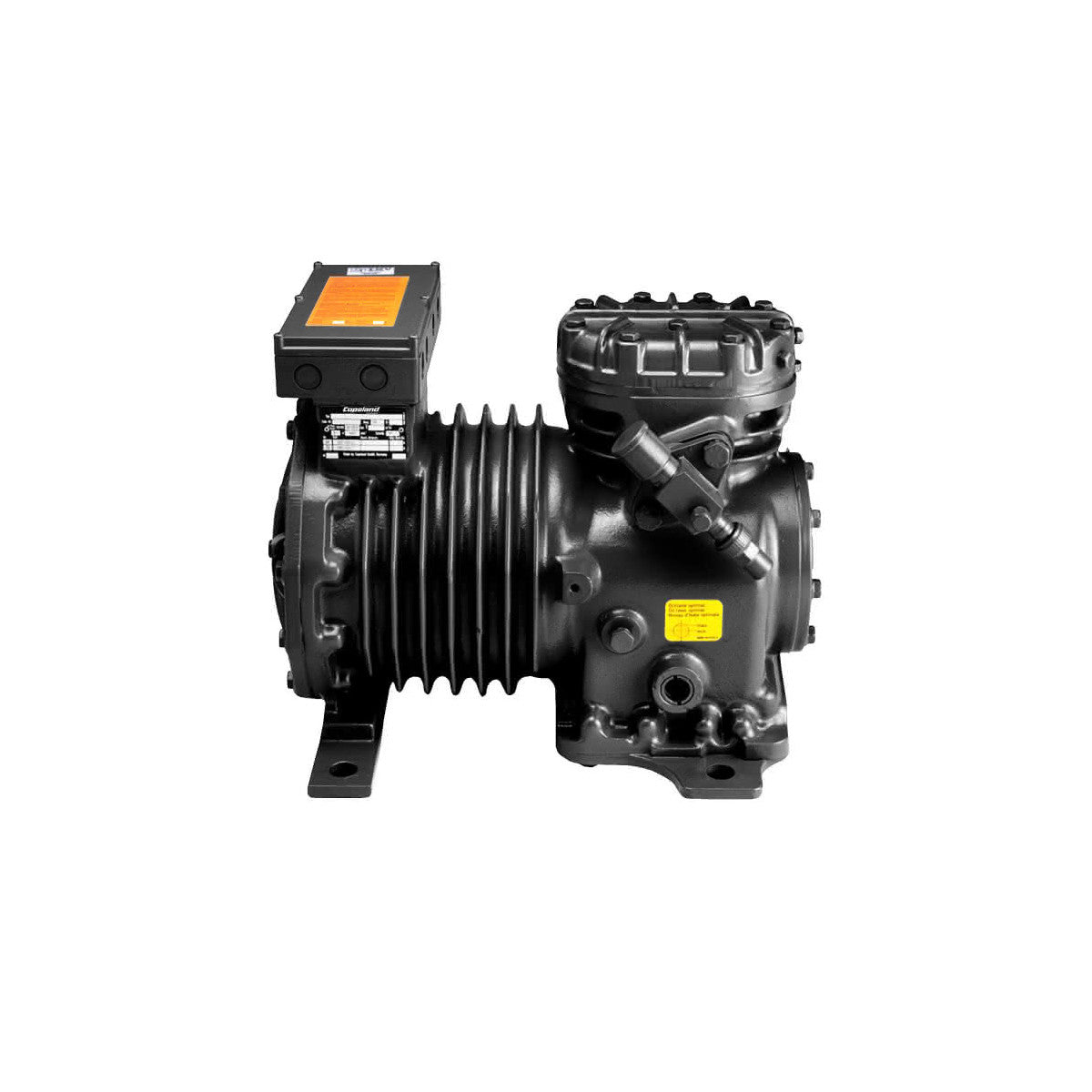

Copeland LLP-30-EWL-X0000 Reciprocating Compressor
Small semi-hermetic 2-cylinder reciprocating compressor for medium and low-temperature refrigeration, as well as transport refrigeration applications. The LLP-30-EWL-X0000 features an internal oil pump, ensuring optimal reliability under all operating conditions.
For precise performance data, please refer to the technical data sheet.
The LLP-30-EWL-X0000 replaces the (D)LLP-30X-EWL model.
General features:
- Refrigerant: R449A, R134a
- Mains voltage: 380-420V/3/50Hz
- Displacement: 18.2 cm³
- Number of cylinders: 2
- Oil charge: RL32-3MAF / 2.0l
- Max. starting current: 53 A
- Max. operating current: 7.3 A
- Suction connection: 28.58 mm
- Discharge connection: 15.88 mm
- Dimensions (LxWxH): 470 x 279 x 3500 mm
- high product quality
- high equipment and system robustness
- low energy consumption
