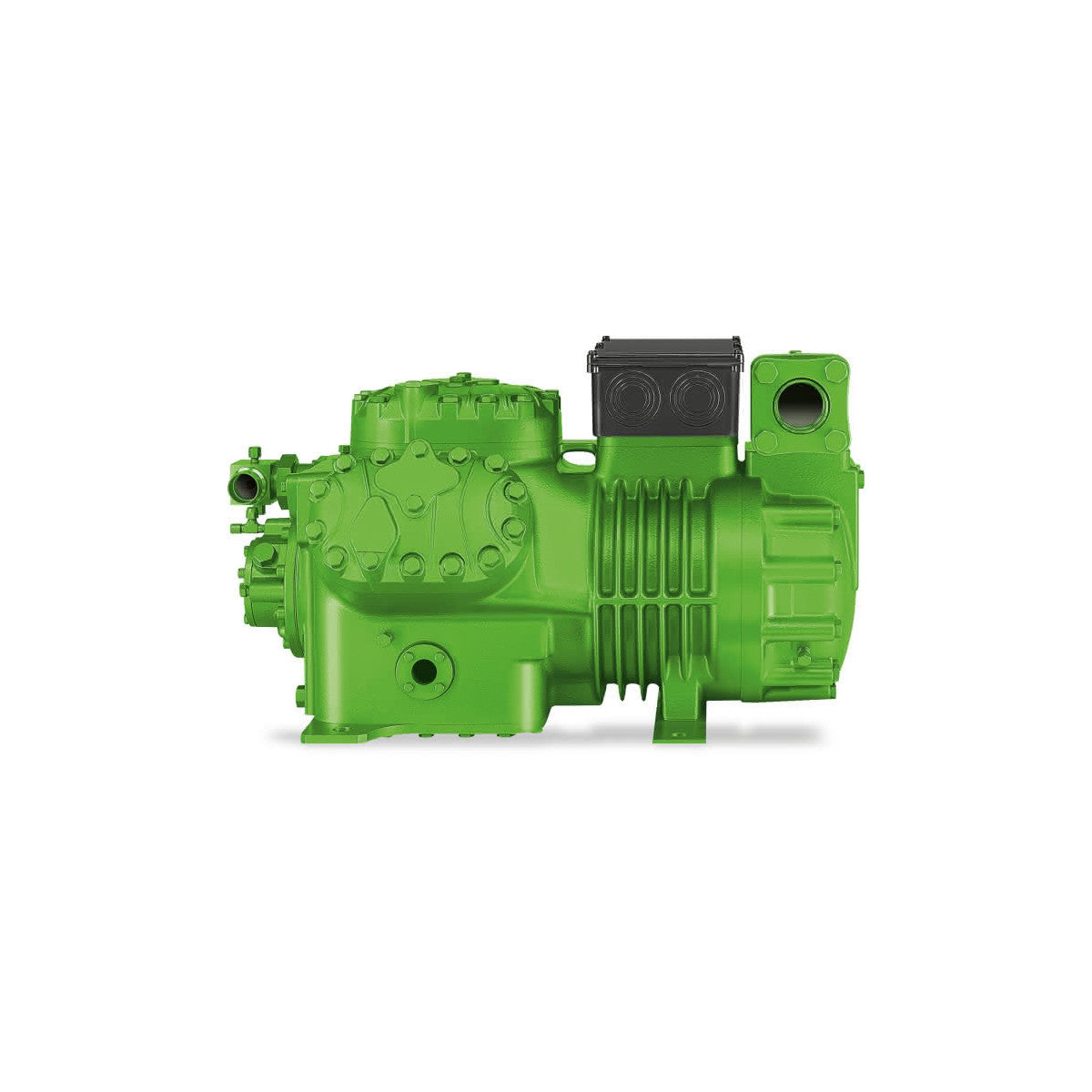

Compressor 6HE-28Y-40P Bitzer

Reciprocating Compressor 6HE-28Y-40P by Bitzer

The 6HE-28Y-40P belongs to the Ecoline series and is therefore one of the most versatile compressors within Bitzer's semi-hermetic reciprocating compressors. The series combines high efficiency with a wide range of applications, flexibility in refrigerant selection, quiet, trouble-free operation, a solid design, and high reliability. The compressor is suitable for both normal and low-temperature refrigeration.

The exact performance data can be found in the technical data sheet.

General features:

• Operating range: LBP & MBP
• Displacement: 110.5 m³/h
• Number of cylinders: 6
• Voltage: 380 - 420V/3/50Hz
• Starting current: 223 A
• Max. operating current: 53.2 A
• Max. power consumption: 33.0 kW
• Max. permissible operating pressure: 19 - 32 bar
• Refrigerants: R404A, R134a, R448A, R449A, R513A, R450A, R507A, R407F
• Connection: Suction line 54 mm, 2 1/8"
• Connection: Discharge line 35 mm, 1 3/8"
• Oil charge: 4.75 liters - Oil BSE32
• Protection class: IP 54 (Standard) - IP66 (Option)
• Max. permissible operating pressure: 19 - 32 bar
• Dimensions (LxWxH): 765 x 502 x 439 mm
