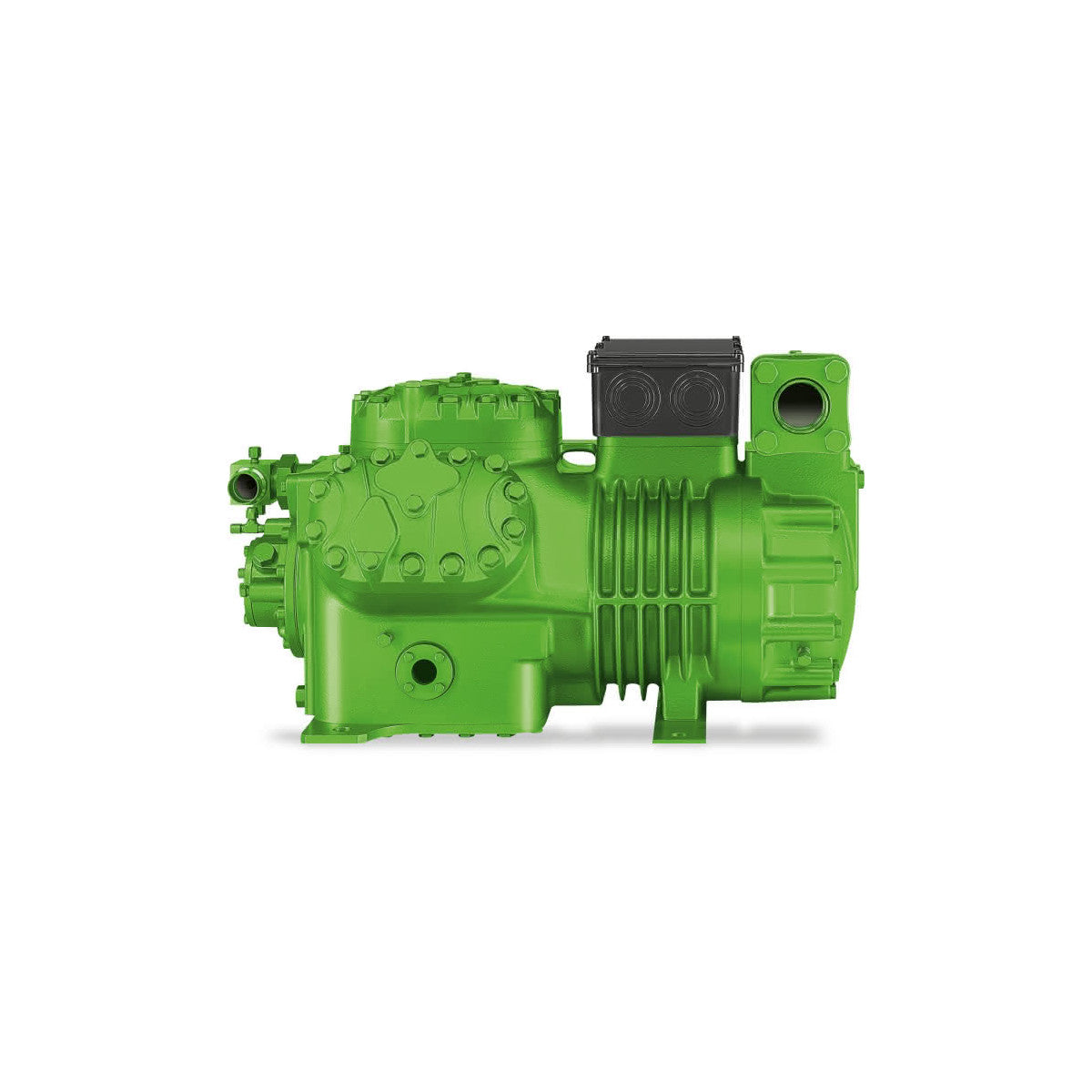

Compressor 6FE-50Y-40P Bitzer

Semi-hermetic reciprocating compressor 6FE-50Y-40P from Bitzer from the Ecoline series for deep freezing and normal cooling.

improved environmental friendliness

wear-resistant drive gear

quiet and low-vibration

excl. VAT incl. VAT

12.057,00 € 14.347,83 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 12.057,00 € excl. VAT 14.347,83 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

zzgl. Versandkosten

ArtNr 0342078 Hersteller Bitzer Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Reciprocating Compressor 6FE-50Y-40P by Bitzer

The 6FE-50Y-40P belongs to the Ecoline series and is thus part of the most universal compressors within Bitzer's semi-hermetic reciprocating compressors. The series combines high efficiency with a wide range of applications, flexibility in refrigerant selection, quiet, trouble-free operation, a robust design and high reliability. The compressor is suitable for both normal cooling and deep freezing.

The exact performance data can be found in the technical data sheet.

General features:

Operating range: LBP & MBP
Displacement: 151.6 - 183.07 m³/h
Number of cylinders: 6
Voltage: 380 - 420V/3/50-60Hz
Starting current: 226 - 404 A
max. operating current: 96.2 A
max. power consumption: 51.0 kW
max. overpressure: 13 - 32 bar
Refrigerants: R404A, R134a, R448A, R449A, R513A, R450A, R507A
Connection: Suction line 54 mm, 2 1/8"
Connection: Discharge line 42 mm, 1 5/8"
Oil charge: 4.75 liters - Oil BSE32
Protection class: IP 54
Max. overpressure: 19 - 32 bar

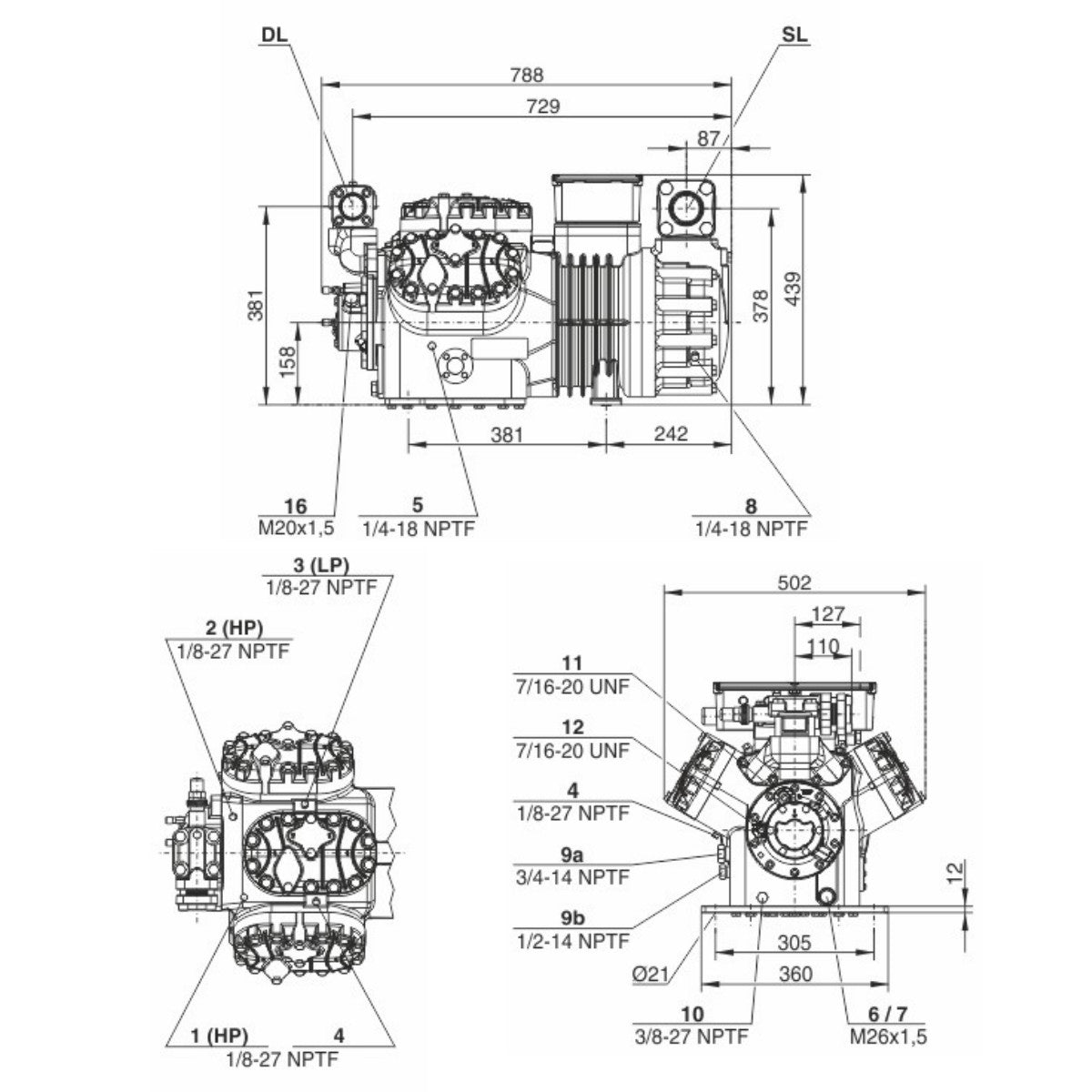

Dimensions (LxWxH): 788 x 502 x 439 mm

improved environmental friendliness
wear-resistant drive gear
quiet and low-vibration

General characteristics

Versandklasse: Freight forwarder
Marke: Bitzer
Gewicht: 261.0 kg

Download

0342078 Datasheet Compressor 6FE 50Y; R134a; t0 10; tc 45

Frequently Asked Questions

Ist der Kompressor mit Kältemittel vorgefüllt?

Nein, der Kompressor wird nicht mit Kältemittel vorgefüllt geliefert. Die Befüllung sollte vom Kältetechniker im Rahmen der Inbetriebnahme der Anlage erfolgen.
