HVST 701 EC EP air cooler Roller

Roller Air Cooler HVST 701 EC EP 0011610 Fan 230V with Defrost Heater | Roller Professional

highly efficient heat transfer

particularly energy-efficient

long throw

excl. VAT incl. VAT

1.055,45 € 1.255,99 € incl. VAT

~~933,61 € excl. VAT~~ ~~1.111,00 € incl. VAT~~ 1.055,45 € excl. VAT 1.255,99 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

zzgl. Versandkosten

ArtNr 1691097 Hersteller Roller Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

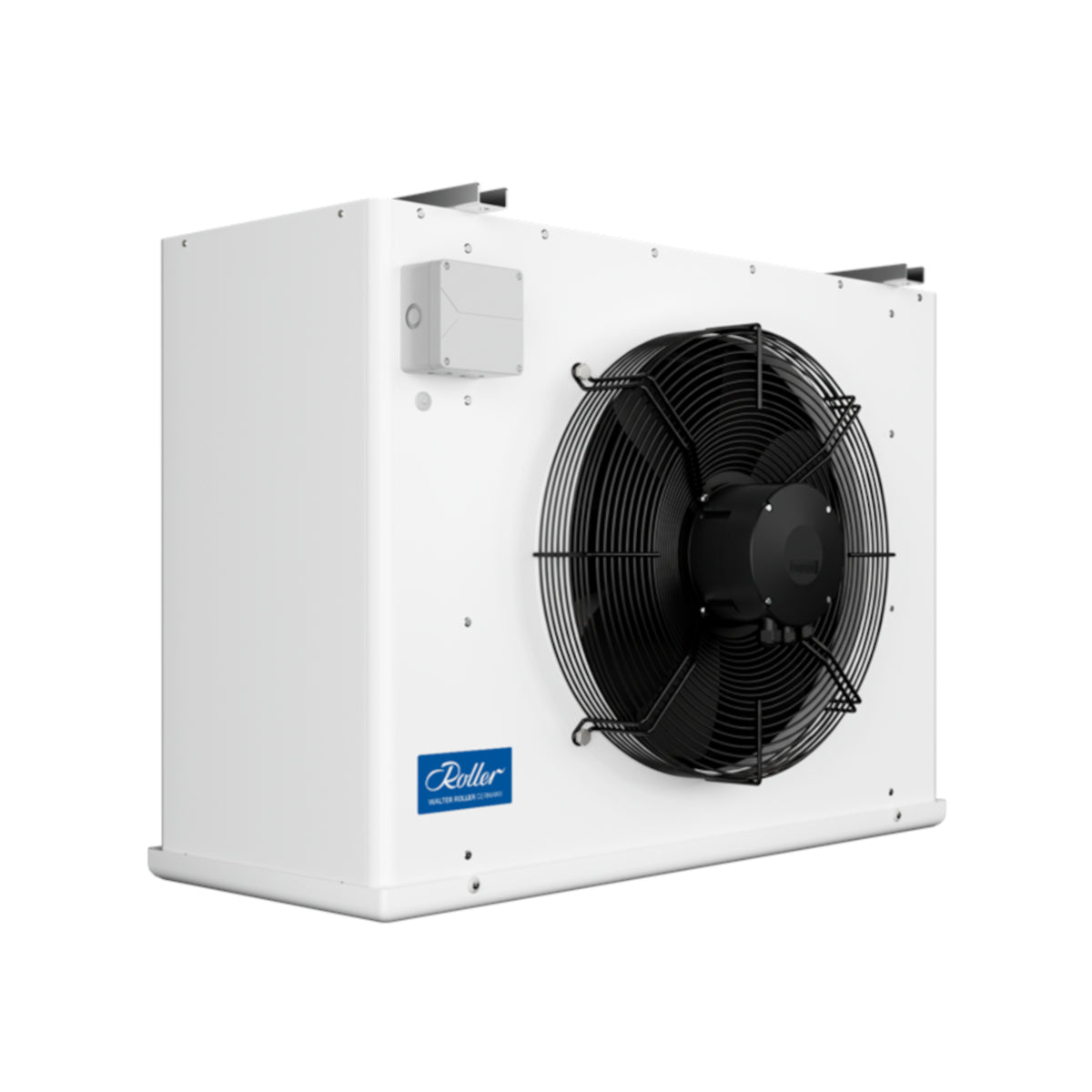

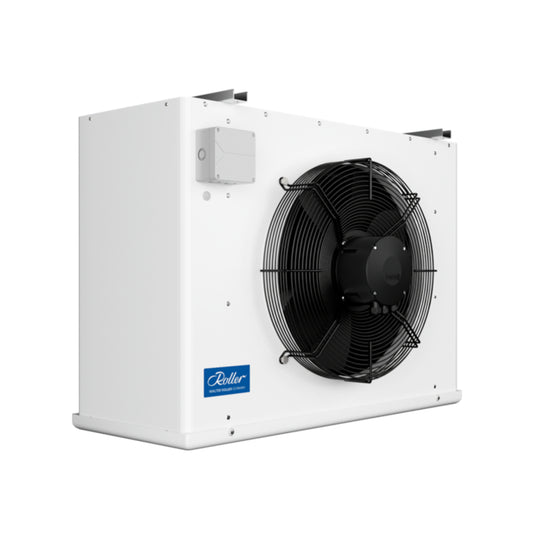

Air cooler / ceiling evaporator HVST701 EC EP from Roller

High-performance air cooler from the HVS Roller Professional / Euroline Plus series in a cubic design with defrost heater. Suitable for all refrigerated and frozen storage rooms with normal air humidity. Due to its compact design, it is particularly suitable for commercial and industrial refrigerated and frozen storage rooms with narrow shelf aisles.

Technical data of the HVST 701 EC EP:

Power 1,14 kW at DeltaT = 8K To = -8°C
Power 0,75 kW at DeltaT = 7K To = -25°C
Lamella spacing 7,0 mm
Energy efficiency class: B
Surface area: 5,2 m²
Air volume: 1350 m³/h
Throw distance: 6 m
Connections inlet / outlet: 12 mm / 15 mm
Number x diameter of fans: 1 x 300 mm
Fan voltage: 230 V 50/60 Hz
Fan power: 40 W
Current consumption: 0.38 A

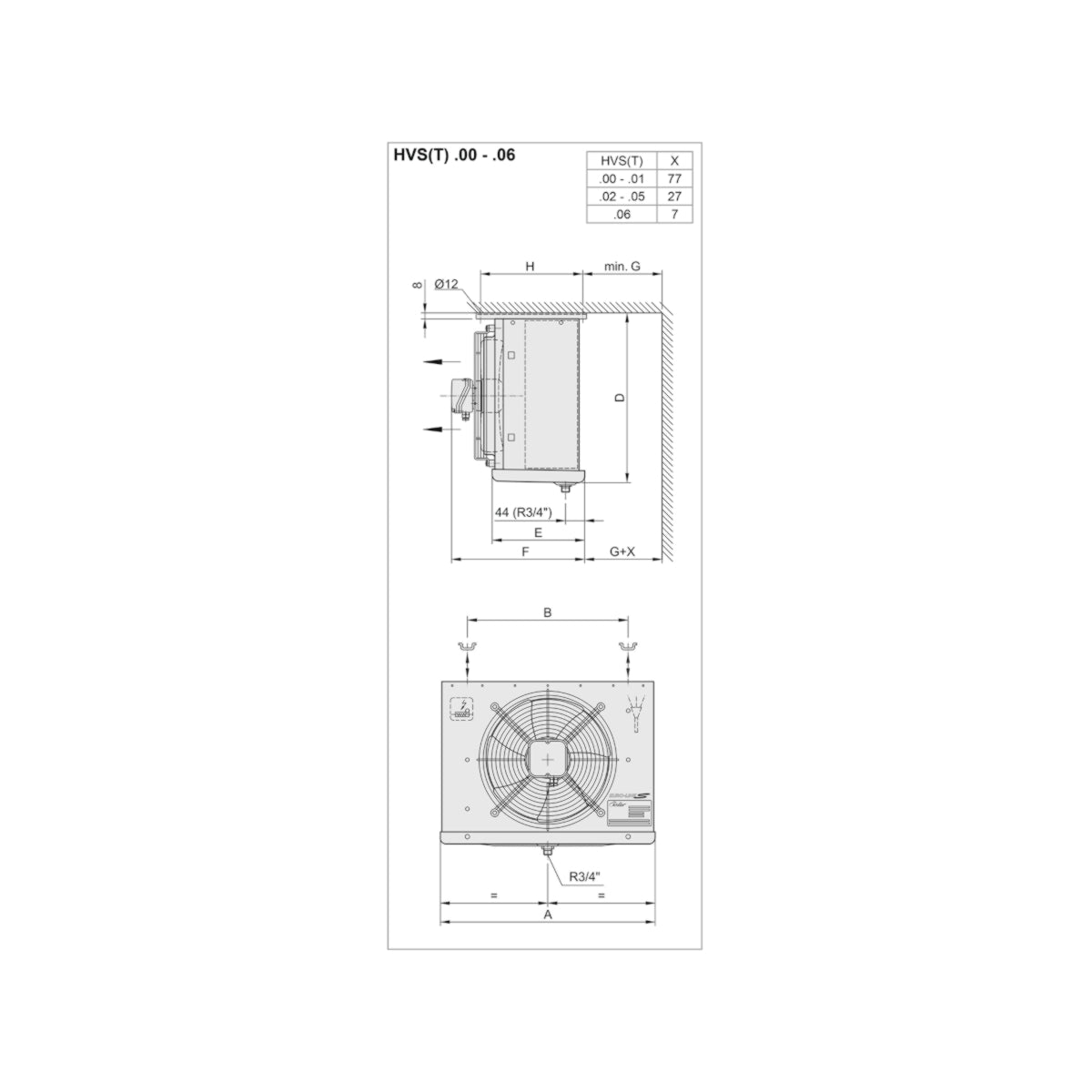

Length width height: 575 mm, 370 mm, 398 mm
OEM number: 0011610

Details of the design:

Housing made of aluminum, white powder-coated, corrosion-resistant, impact- and scratch-resistant
Drip tray with dust cover to prevent condensation water formation
Aluminum fins with a thickness of 0.3 mm
Protected gas filling

Further characteristics of the air cooler:
