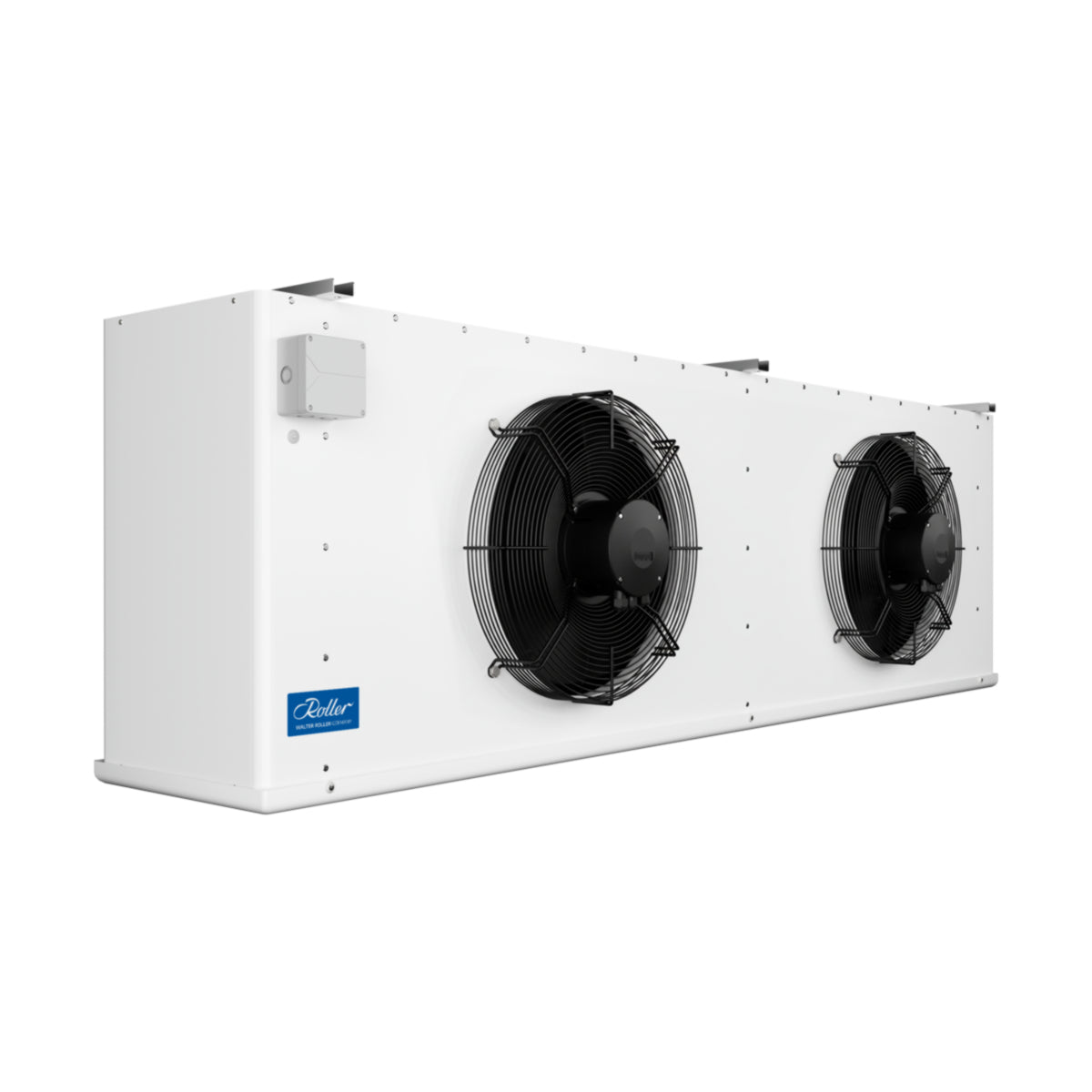

HVST 413 EC EP air cooler Roller

Roller Air Cooler HVST 413 EC EP 0013212 Fan 230V with Defrost Heater | Roller Professional

highly efficient heat transfer

particularly energy efficient

high throw distance

excl. VAT incl. VAT

6.405,00 € 7.621,95 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 6.405,00 € excl. VAT 7.621,95 € incl. VAT

Sale Sold out

Extended delivery times

In approx. 34 working days

zzgl. Versandkosten

ArtNr 1691074 Hersteller Roller Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

Air cooler / ceiling evaporator HVST413 EC EP from Roller

High-performance air cooler from the HVS Roller Professional / Euroline Plus series in a cubic design with defrost heater. Suitable for all refrigerated and frozen storage rooms with normal air humidity. Due to its compact design, it is particularly suitable for commercial and industrial refrigerated and frozen storage rooms with narrow shelf aisles.

Technical data of the HVST 413 EC EP:

Power 20,7 kW at DeltaT = 8K To = -8°C
Power 14,9 kW at DeltaT = 7K To = -25°C
Lamella spacing 4.5 mm
Energy efficiency class: B
Surface area: 108,5 m²
Air volume: 11650 m³/h
Throw distance: 19 m
Connections inlet / outlet: 15 mm / 42 mm
Number x diameter of fans: 2 x 500 mm
Fan voltage: 230 V 50/60 Hz
Fan power: 280 W
Current consumption: 1,23 A

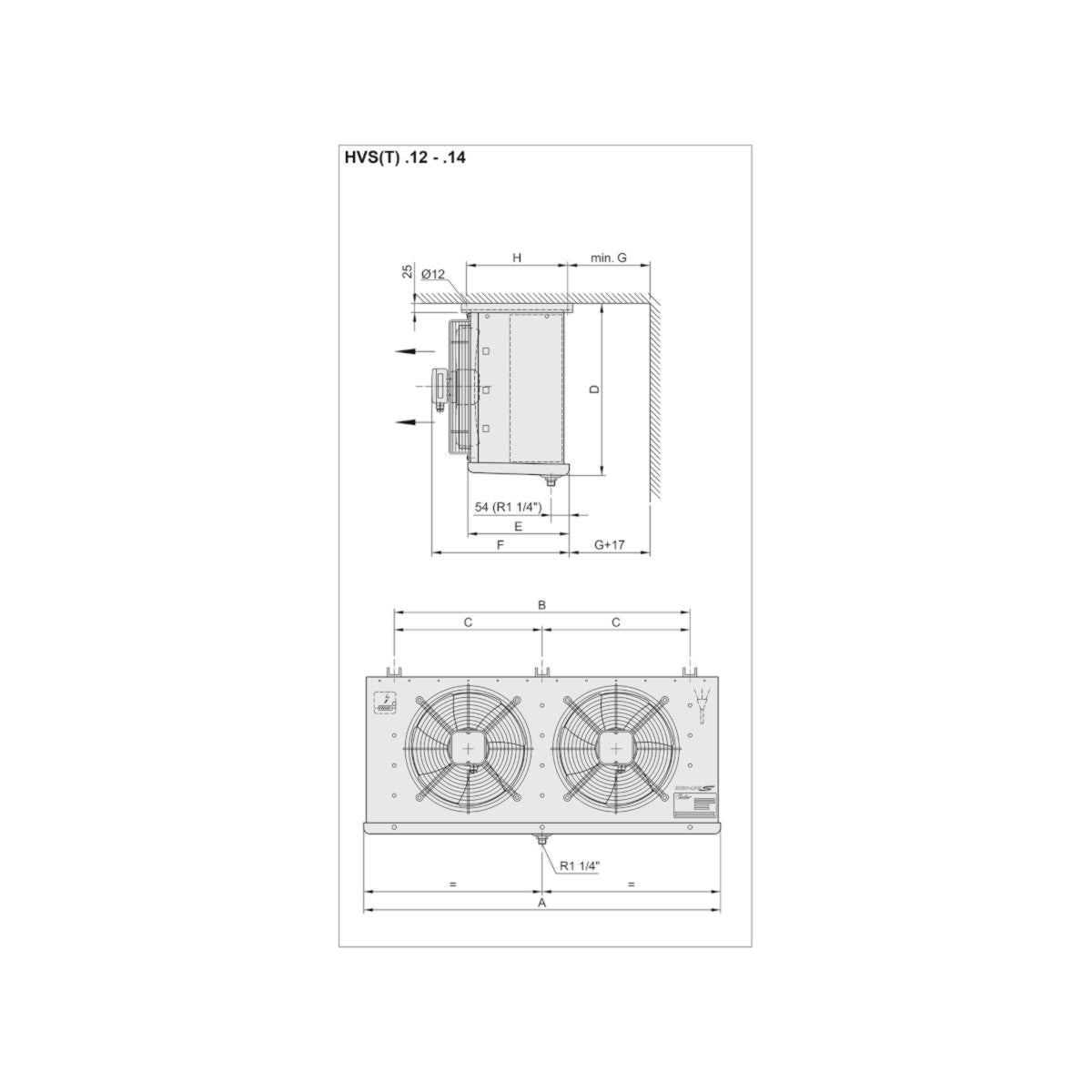

Length width height: 2055 mm, 1825 mm, 760 mm
OEM number: 0013212

Details of the design:

Housing made of aluminum, white powder-coated, corrosion-resistant, impact- and scratch-resistant
Drip tray with dust cover to prevent condensation water formation
Aluminum fins with a thickness of 0.3 mm
Protected gas filling
