HVS 410 EC EP air cooler Roller

Roller-Luftkühler HVS 410 EC EP 0013198 Ventilator 230V ohne Abtauheizung | Roller Professional

hocheffizienter Wärmeübergang

besonders energieeffizient

hohe Wurfweite

excl. VAT incl. VAT

2.698,95 € 3.211,75 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 2.698,95 € excl. VAT 3.211,75 € incl. VAT

Sale Sold out

Extended delivery times

In approx. 34 working days

zzgl. Versandkosten

ArtNr 1691057 Hersteller Roller Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

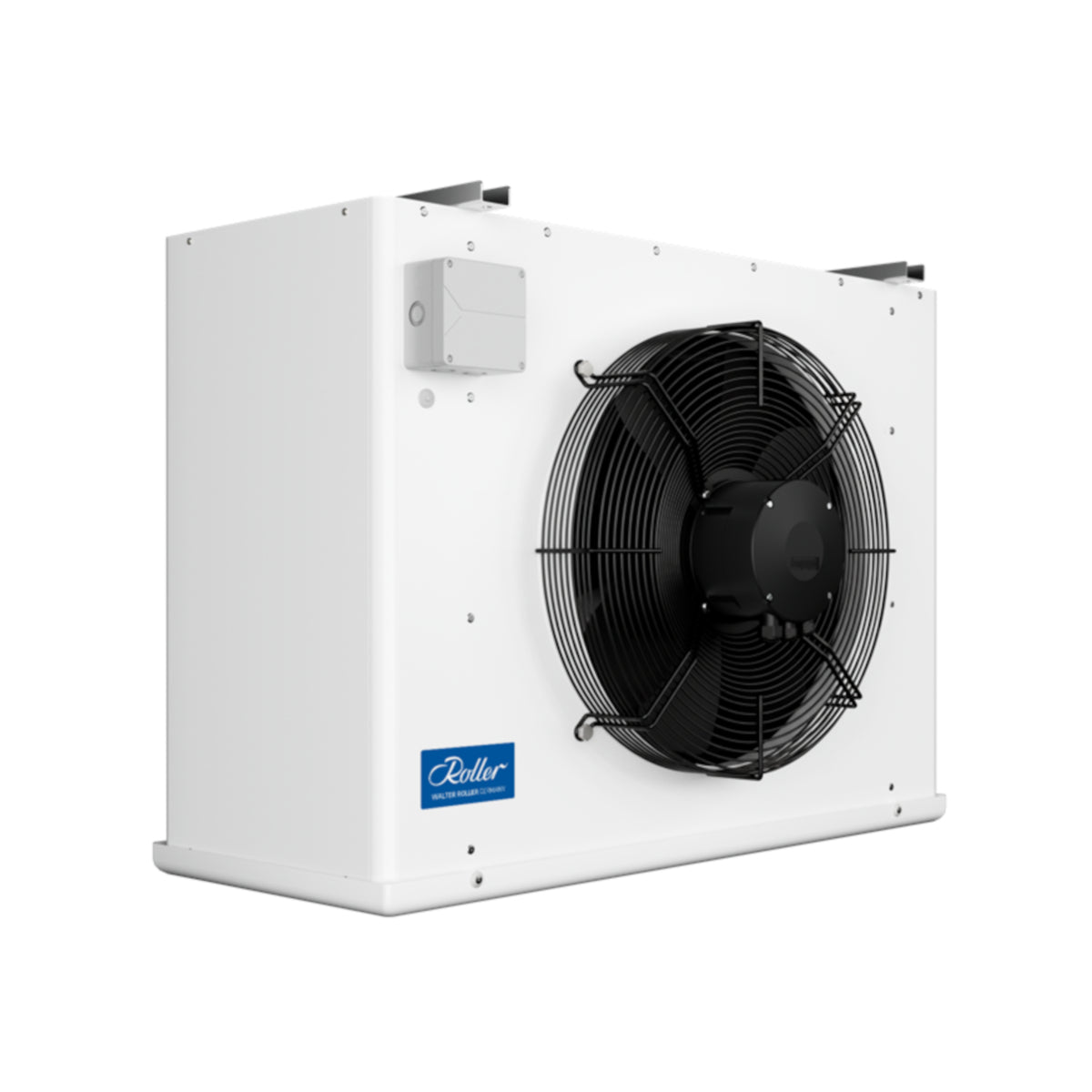

Air cooler / ceiling evaporator HVS410 EC EP from Roller

High-performance air cooler from the HVS Roller Professional / Euroline Plus series in a cubic design without defrost heater. Suitable for all refrigerated and frozen storage rooms with normal air humidity. Due to its compact design, it is particularly suitable for commercial and industrial refrigerated and frozen storage rooms with narrow shelf aisles.

Technical data of the HVS 410 EC EP:

Power 9.97 kW at DeltaT = 8K To = -8°C
Power 6.98 kW at DeltaT = 7K To = -25°C
Fins spacing 4.5 mm
Energy efficiency class: B
Surface area: 51.3 m²
Air flow rate: 5800 m³/h
Throw distance: 16 m
Inlet/outlet connections: 12mm / 28 mm
Number x diameter of fans: 1 x 500 mm
Fan voltage: 230 V 50/60 Hz
Fan power: 280 W
Current consumption: 1,23 A

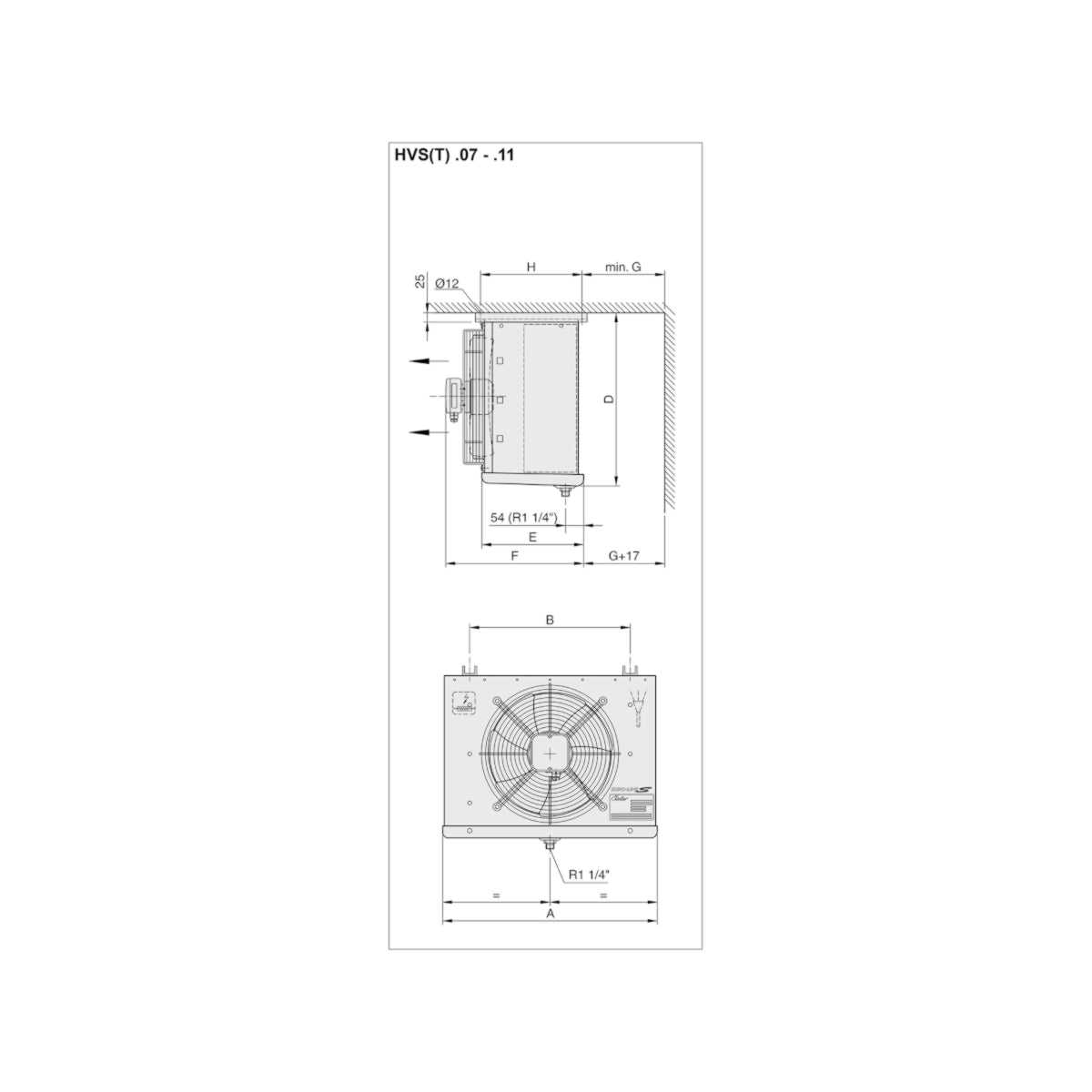

Length width height: 1105 mm, 875 mm, 760 mm
OEM number: 0013198

Details of the design:

Housing made of aluminum, white powder-coated, corrosion-resistant, impact- and scratch-resistant
Drip tray with dust cover to prevent condensation water formation
Aluminum fins with a thickness of 0.3 mm
Protected gas filling

Further characteristics of the air cooler:
