HVS 409 EC EP air cooler Roller

Roller Air Cooler HVS 409 EC EP 0013194 Fan 230V without Defrost Heater | Roller Professional

highly efficient heat transfer

particularly energy efficient

long throw

excl. VAT incl. VAT

2.473,80 € 2.943,82 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 2.473,80 € excl. VAT 2.943,82 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

zzgl. Versandkosten

ArtNr 1691056 Hersteller Roller Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

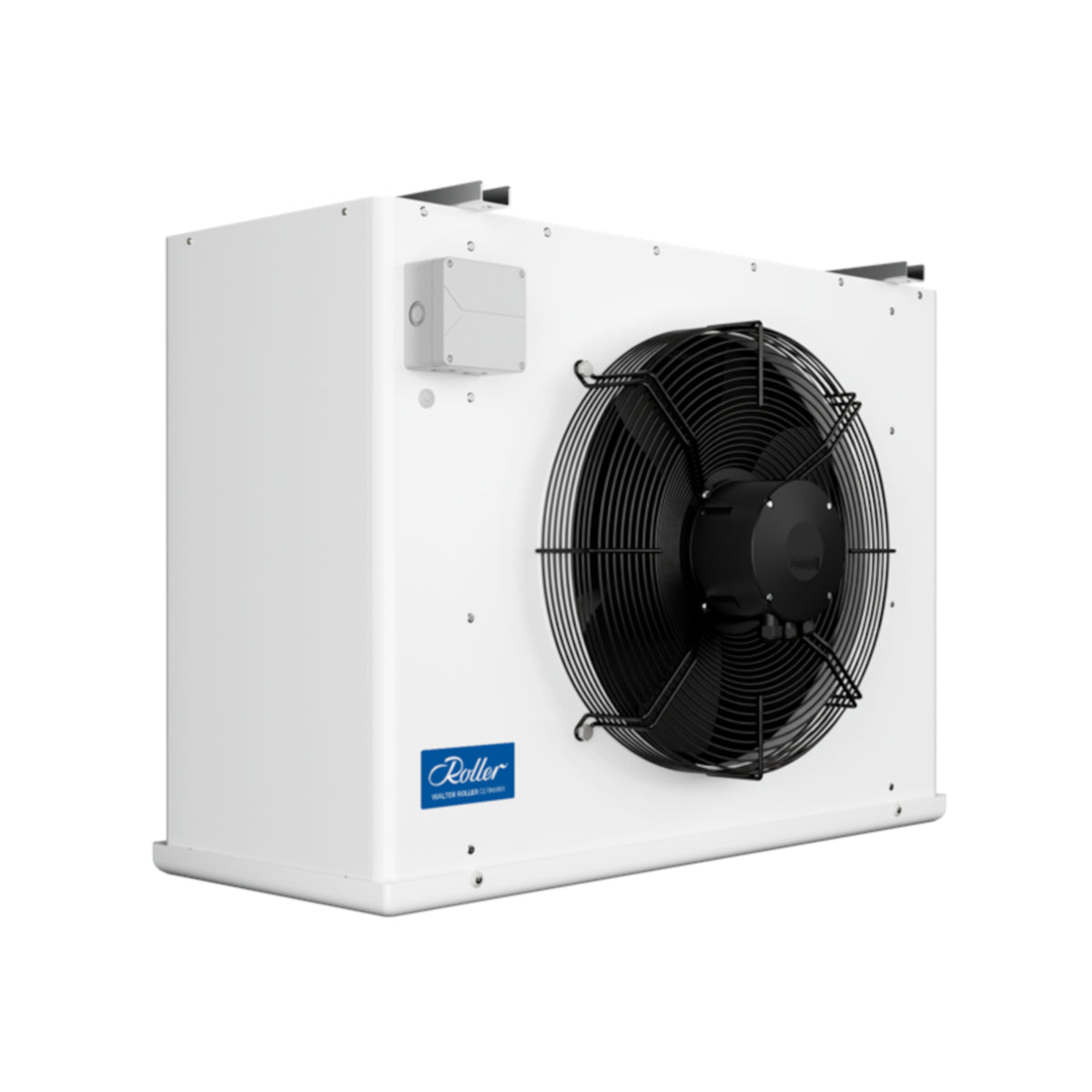

Air cooler / ceiling evaporator HVS409 EC EP from Roller

High-performance air cooler from the HVS Roller Professional / Euroline Plus series in a cubic design without defrost heater. Suitable for all refrigerated and frozen storage rooms with normal air humidity. Due to its compact design, it is particularly suitable for commercial and industrial refrigerated and frozen storage rooms with narrow shelf aisles.

Technical data of the HVS 409 EC EP:

Power 8.16 kW at DeltaT = 8K To = -8°C
Power 5.93 kW at DeltaT = 7K To = -25°C
Fins spacing 4.5 mm
Energy efficiency class: C
Surface area: 42.2 m²
Air flow rate: 4860 m³/h
Throw distance: 15 m
Inlet/outlet connections: 12 mm / 28 mm
Number x diameter of fans: 1 x 450 mm
Fan voltage: 230 V 50/60 Hz
Fan power: 270 W
Current consumption: 1,22 A
Length width height: 955 mm, 725 mm, 760 mm
OEM number: 0013194

Details of the design:

Housing made of aluminum, white powder-coated, corrosion-resistant, impact- and scratch-resistant
Drip tray with dust cover to prevent condensation water formation
Aluminum fins with a thickness of 0.3 mm
Protected gas filling

Further characteristics of the air cooler:
