HVS 408 EC EP air cooler Roller

Roller Air Cooler HVS 408 EC EP 0013190 Fan 230V without Defrost Heater | Roller Professional

highly efficient heat transfer

particularly energy efficient

long throw distance

excl. VAT incl. VAT

2.255,30 € 2.683,81 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 2.255,30 € excl. VAT 2.683,81 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

zzgl. Versandkosten

ArtNr 1691055 Hersteller Roller Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

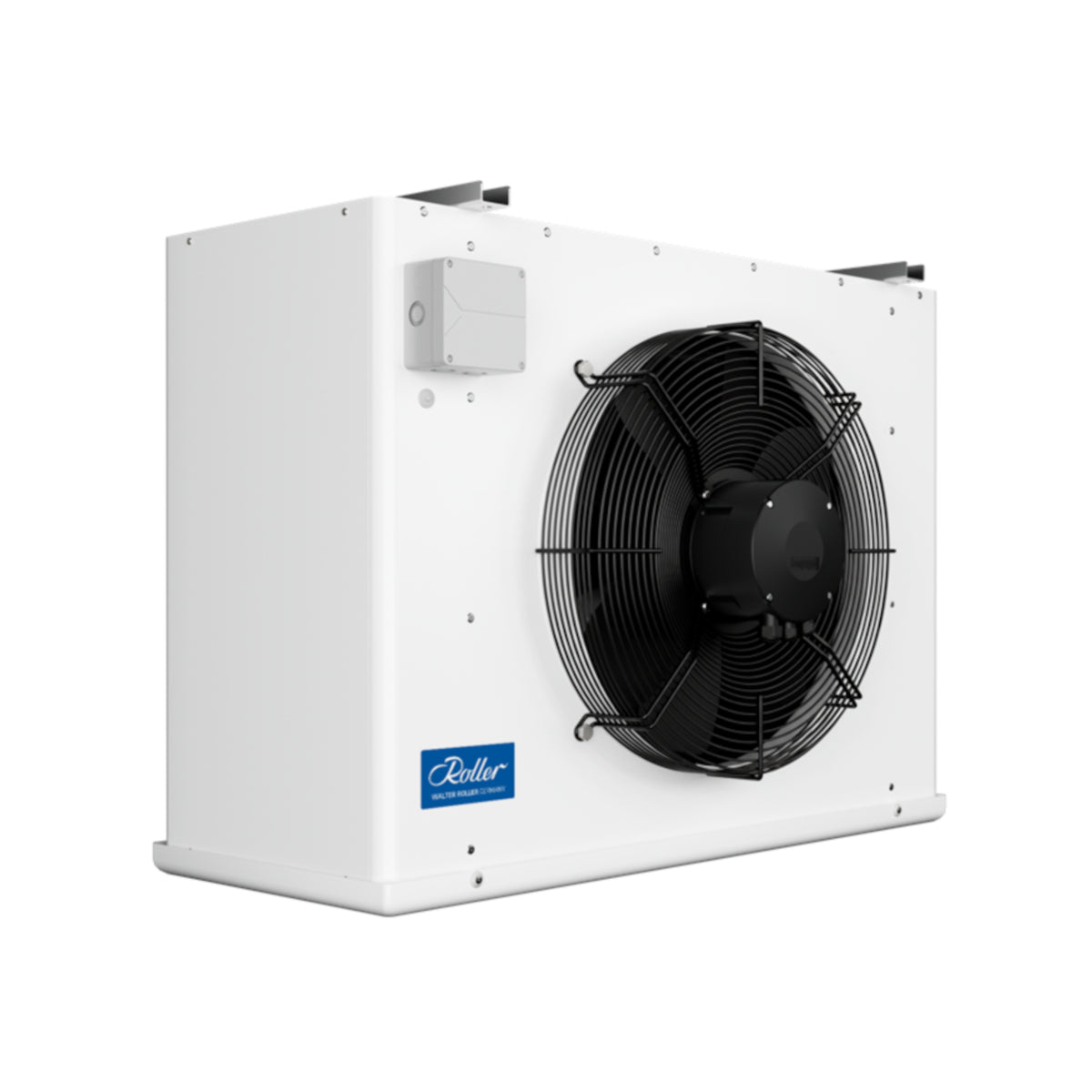

Air cooler / ceiling evaporator HVS408 EC EP from Roller

High-performance air cooler from the HVS Roller Professional / Euroline Plus series in a cubic design without defrost heater. Suitable for all refrigerated and frozen storage rooms with normal air humidity. Due to its compact design, it is particularly suitable for commercial and industrial refrigerated and frozen storage rooms with narrow shelf aisles.

Technical data of the HVS 408 EC EP:

Power 6.64 kW at DeltaT = 8K To = -8°C
Power 4.69 kW at DeltaT = 7K To = -25°C
Lamella spacing 4.5 mm
Energy efficiency class: C
Surface area: 31.0 m²
Air volume: 4000 m³/h
Throw distance: 14 m
Connections inlet / outlet: 12 mm / 22 mm
Number x diameter of fans: 1 x 450 mm
Fan voltage: 230 V 50/60 Hz
Fan power: 200 W
Current consumption: 0.90 A
Length width height: 855 mm, 625 mm, 660 mm
OEM number: 0013190

Details of the design:

Housing made of aluminum, white powder-coated, corrosion-resistant, impact- and scratch-resistant
Drip tray with dust cover to prevent condensation water formation
Aluminum fins with a thickness of 0.3 mm
Protected gas filling

Further characteristics of the air cooler:
