Product description

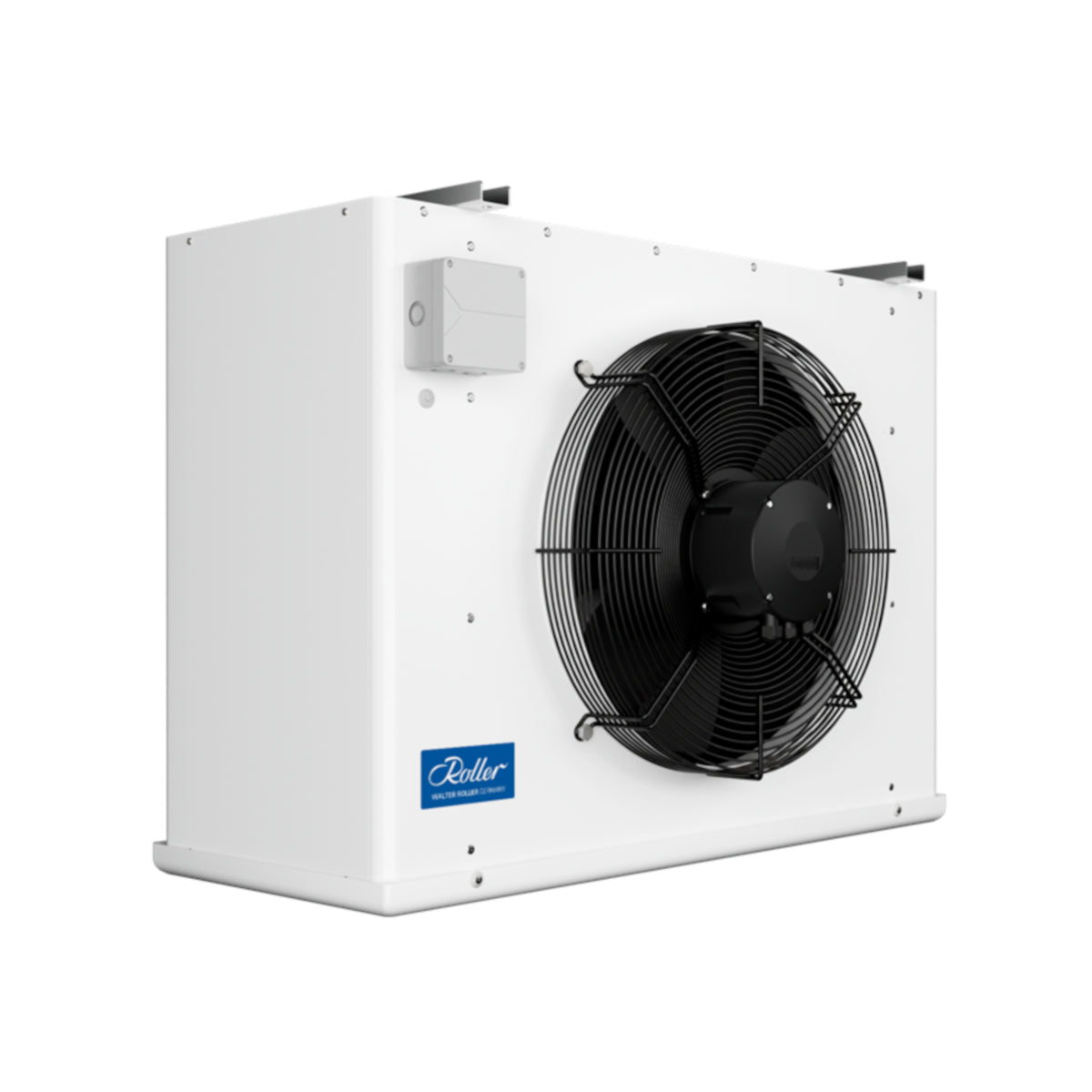

Air cooler / ceiling evaporator HVS405 EC EP from Roller

High-performance air cooler from the HVS Roller Professional / Euroline Plus series in a cubic design without defrost heater. Suitable for all refrigerated and frozen storage rooms with normal air humidity. Due to its compact design, it is particularly suitable for commercial and industrial refrigerated and frozen storage rooms with narrow shelf aisles.

Technical data of the HVS 405 EC EP:

Power 4.11 kW at DeltaT = 8K To = -8°C
Power 3.04 kW at DeltaT = 7K To = -25°C
Fins spacing 4.5 mm
Energy efficiency class: C
Surface area: 21.5 m²
Air flow rate: 2660 m³/h
Throw distance: 13 m
Inlet / outlet connection: 12 mm / 22 mm
Number x diameter of fans: 1 x 400 mm
Fan voltage: 230 V 50/60 Hz
Fan power: 135 W
Current consumption: 0.59 A

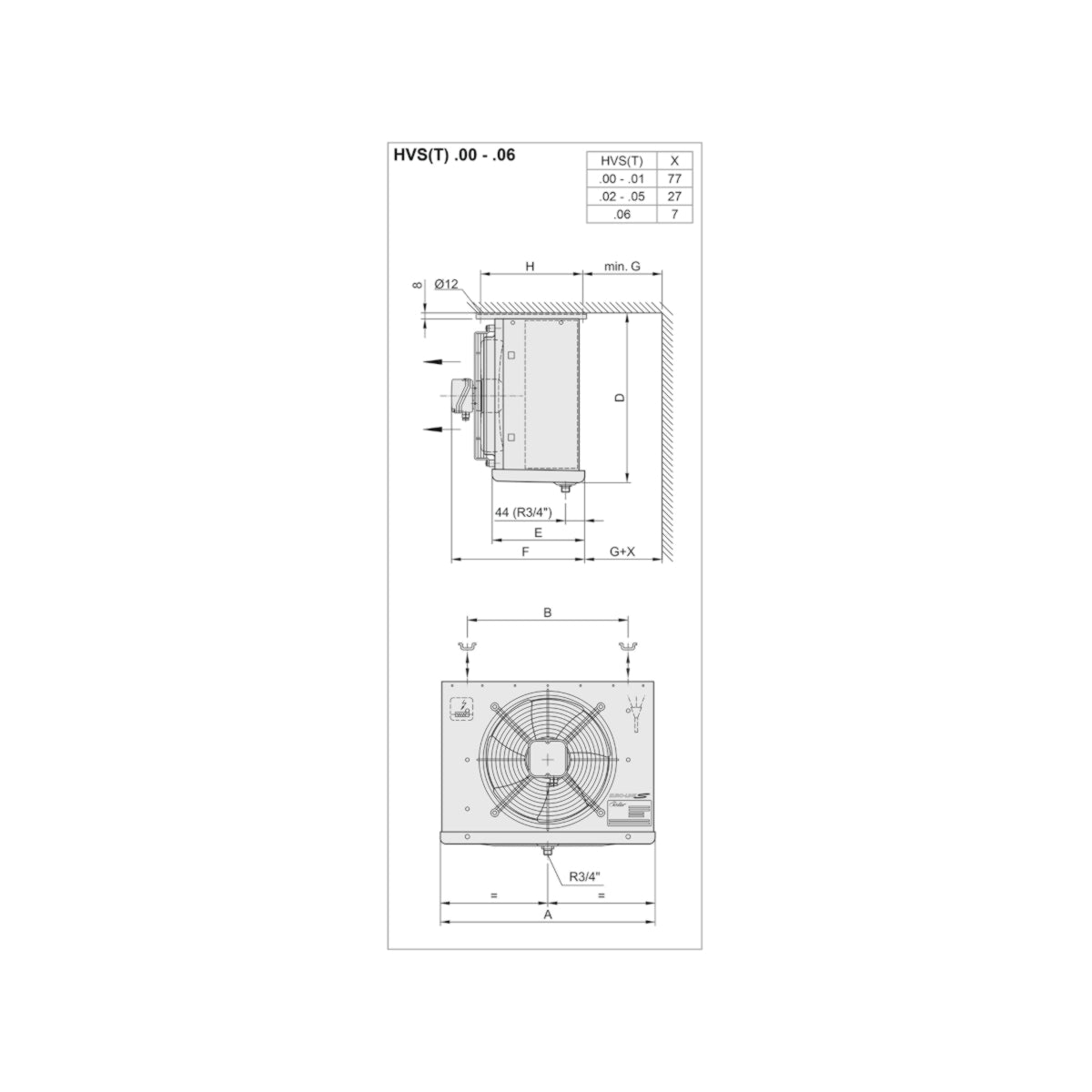

Length width height: 725 mm, 520 mm, 548 mm
OEM number: 0011060

Details of the design:

Housing made of aluminum, white powder-coated, corrosion-resistant, impact- and scratch-resistant
Drip tray with dust cover to prevent condensation water formation
Aluminum fins with a thickness of 0.3 mm
Protected gas filling

Further characteristics of the air cooler:
