HVS 403 EC EP air cooler Roller

Roller Air Cooler HVS 403 EC EP 0011618 Fan 230V without Defrost Heater | Roller Professional

highly efficient heat transfer

particularly quiet

long throw

excl. VAT incl. VAT

1.092,50 € 1.300,08 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 1.092,50 € excl. VAT 1.300,08 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

zzgl. Versandkosten

ArtNr 1691051 Hersteller Roller Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

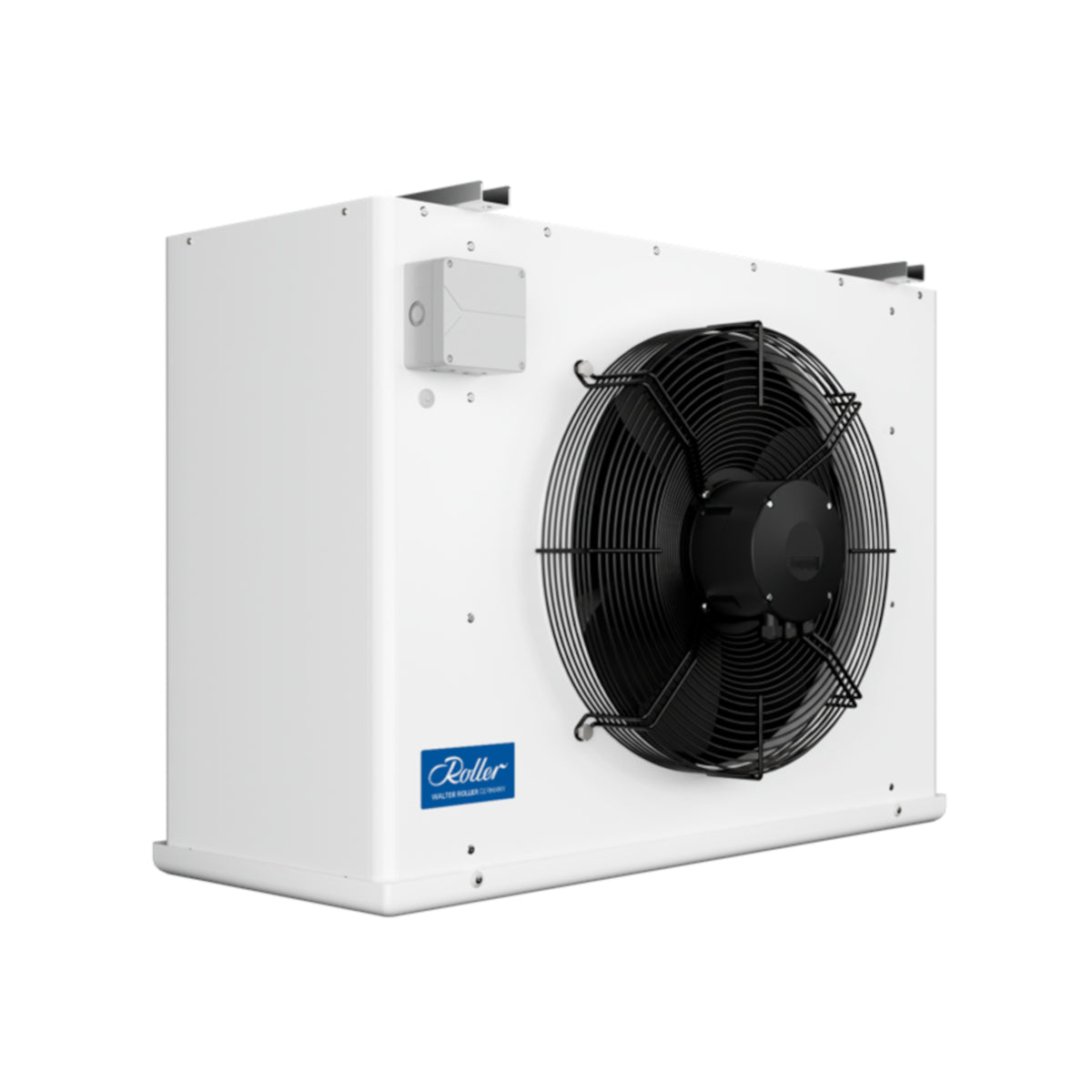

Air cooler / ceiling evaporator HVS403 EC EP from Roller

High-performance air cooler from the HVS Roller Professional / Euroline Plus series in a cubic design without defrost heater. Suitable for all refrigerated and frozen storage rooms with normal air humidity. Due to its compact design, it is particularly suitable for commercial and industrial refrigerated and frozen storage rooms with narrow shelf aisles.

Technical data of the HVS 403 EC EP:

Power 2.59 kW at DeltaT = 8K To = -8°C
Power 1.88 kW at DeltaT = 7K To = -25°C
Fins spacing 4.5 mm
Energy efficiency class: B
Surface area: 13.8 m²
Air flow rate: 1580 m³/h
Throw distance: 6 m
Connection inlet/outlet: 12 mm / 15 mm
Number x Diameter of fans: 1 x 300 mm
Fan voltage: 230 V 50/60 Hz
Fan power: 60 W
Current consumption: 0.51 A

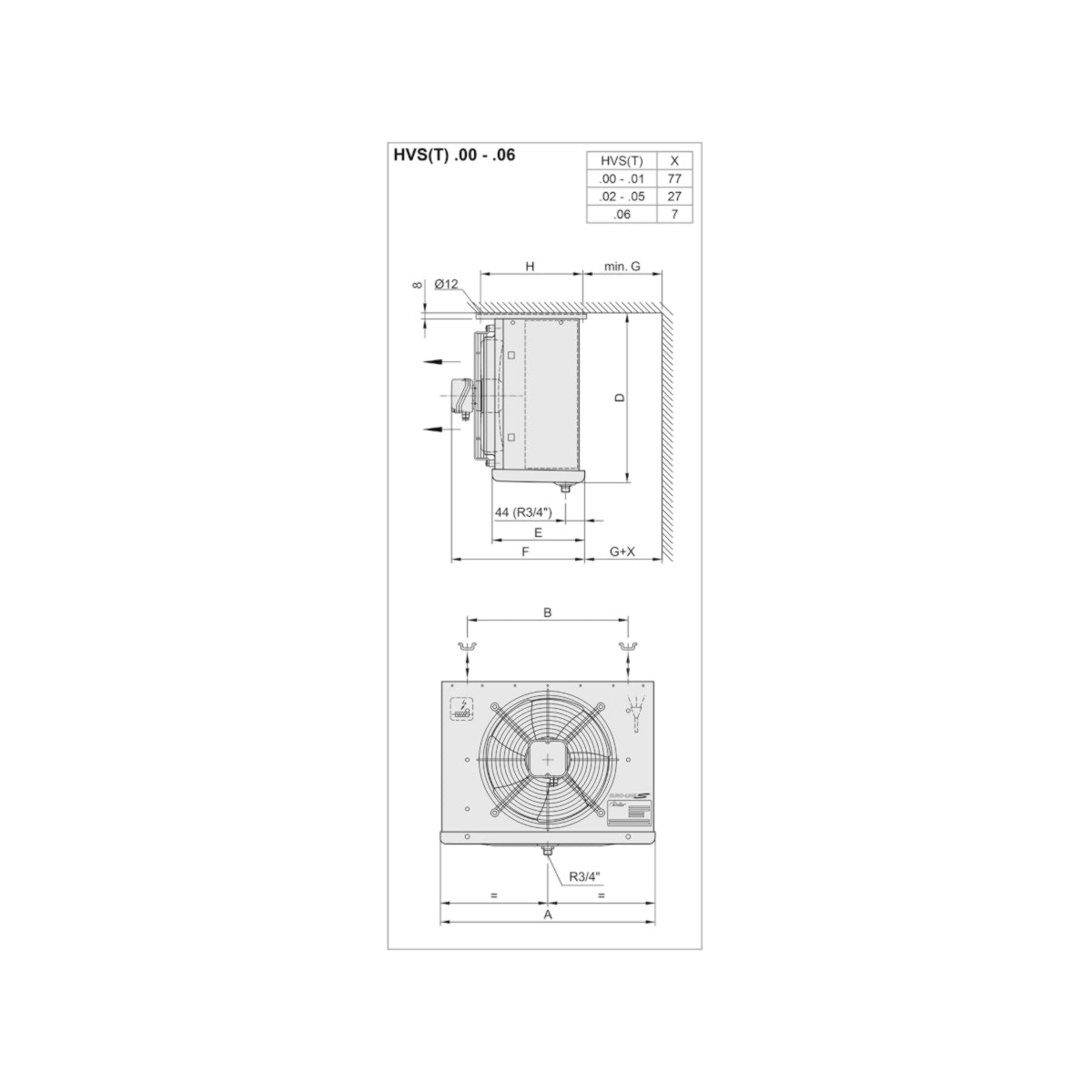

Length Width Height: 625 mm, 420 mm, 448 mm
OEM number: 0011618

Details of the design:

Housing made of aluminum, white powder-coated, corrosion-resistant, impact- and scratch-resistant
Drip tray with dust cover to prevent condensation water formation
Aluminum fins with a thickness of 0.3 mm
Protected gas filling

Further characteristics of the air cooler:
