HF72S Countertop Evaporator LUVE

Countertop evaporator HF72S 370 W at To = -7.5 °C, Delta T = 10 K, 1 fan, single-sided discharge

highly efficient heat transfer

particularly energy efficient

high throw distance

excl. VAT incl. VAT

279,00 € 332,01 € incl. VAT

279,00 € excl. VAT 332,01 € incl. VAT

Sale Sold out

Available immediately

1–3 working days

plus shipping costs

Dispatch Monday to Friday only This also applies to express orders. No dispatch on weekends or public holidays.

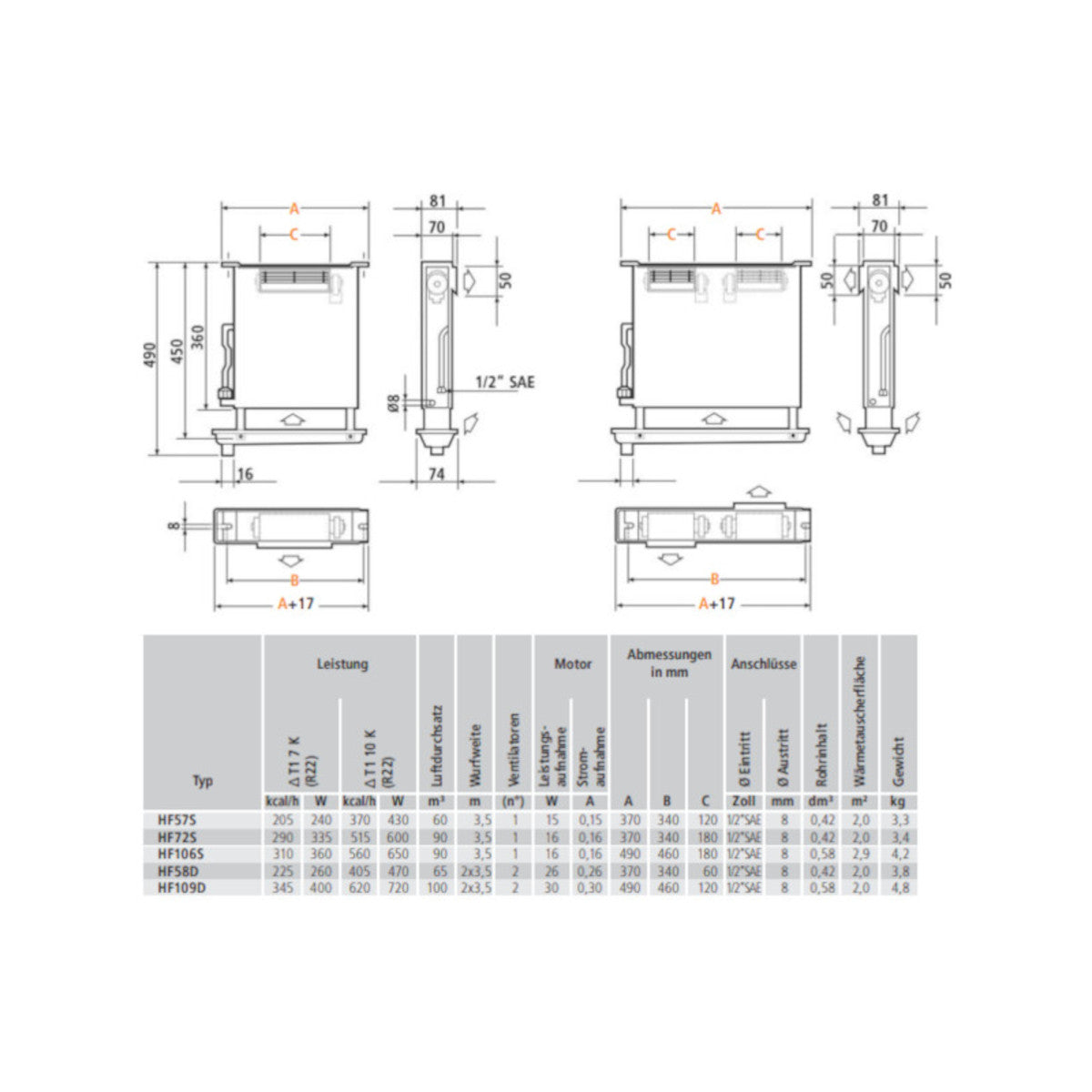

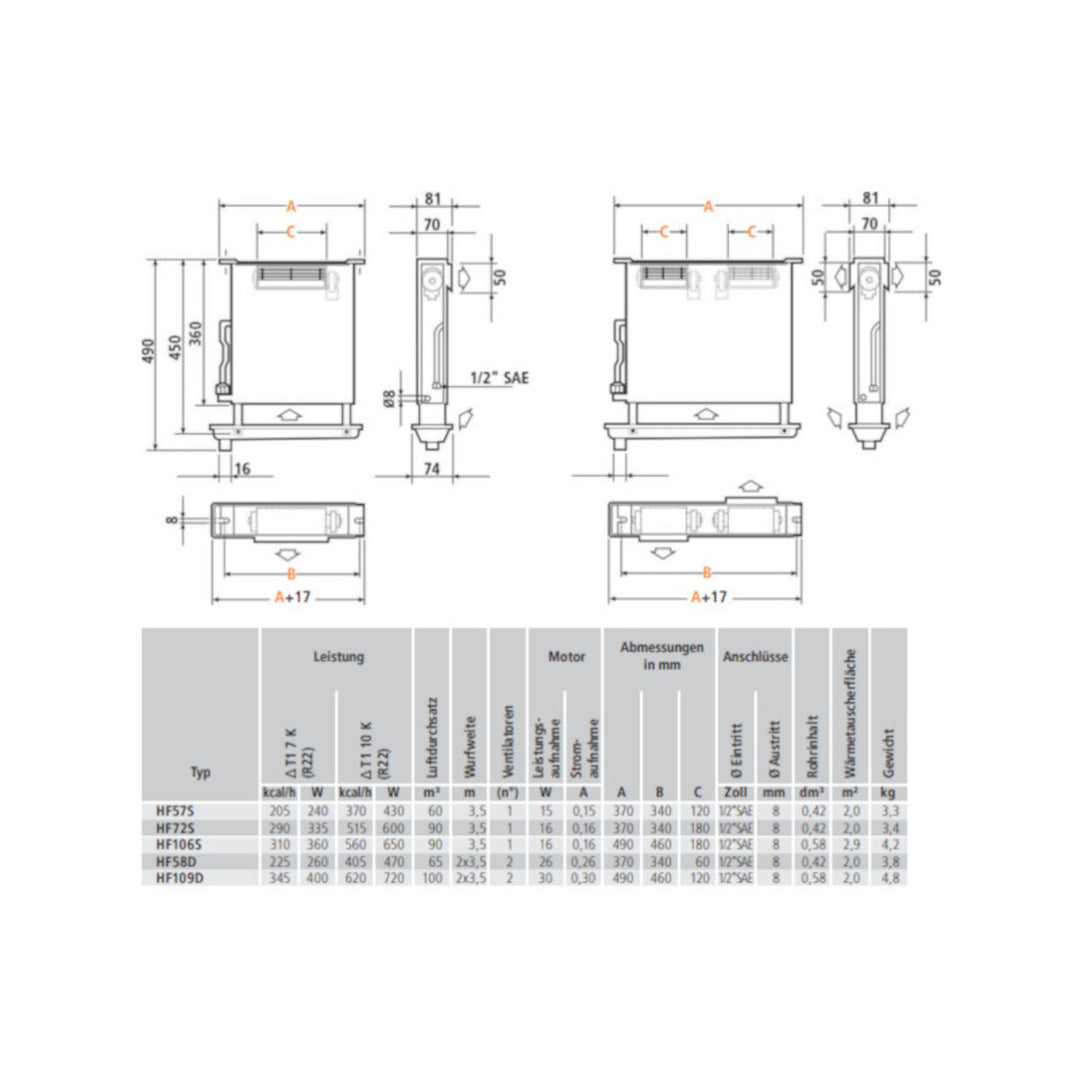

SKU 0122021 Manufacturer LU-VE Contardo Datasheet

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

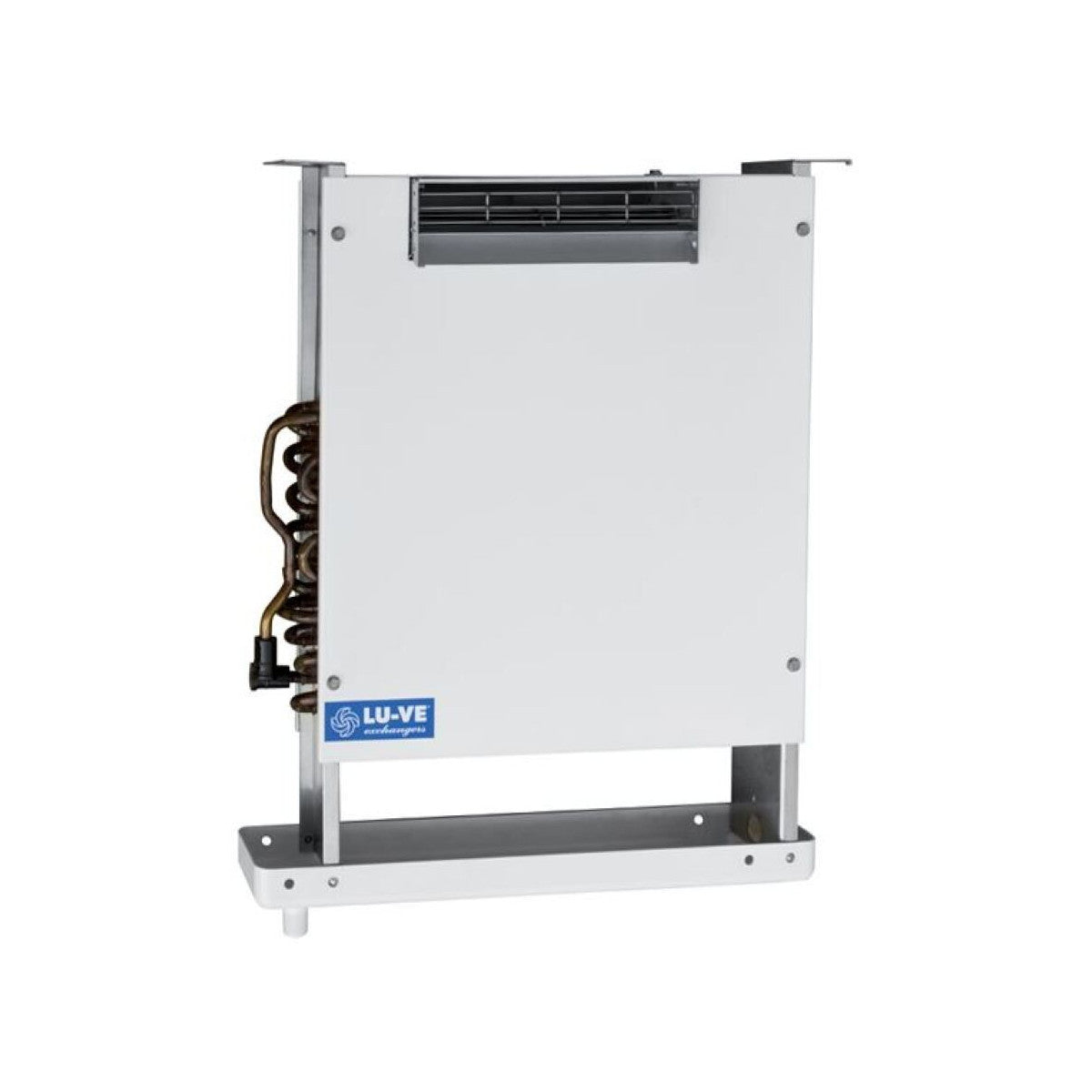

Countertop Air Cooler / Evaporator HF72S LU-VE Contardo

Evaporator HF72S LU-VE Contardo with cooling capacity 370 W at To = -7.5°C, Delta T = 10 K for refrigerated display cases at a temperature above 0°C. Cooling capacity according to nominal ENV328 regulations - room temperature = 2.5°C, evaporation temperature = -7.5°C (DT 1 = 10K) with refrigerant R404A. Further information can be found in the technical data sheet, which is available under "Technical Details".

Technical Data

Features: Copper pipes, aluminum fins with double spacing, motor fan, fan guard, defrost heater can be ordered separately
Aluminum housing, painted, very light, very flat
Cooling capacity: 370 W at To = -7.5°C, Delta T = 10K
Single-sided discharge
Number of fans: 1
Power: 16 W
Surface area: 2.0 m²
Air flow: 90 m³/h
Throw distance: 3.5 m
Fin spacing: 4.3 mm
Dimensions: 490 x 460 x 180 mm
