GS4000 Leak Detector CGS

Leak Detector GS4000 from CGS Handschug for Forming Gas & All Combustible Gases such as R290, R600a

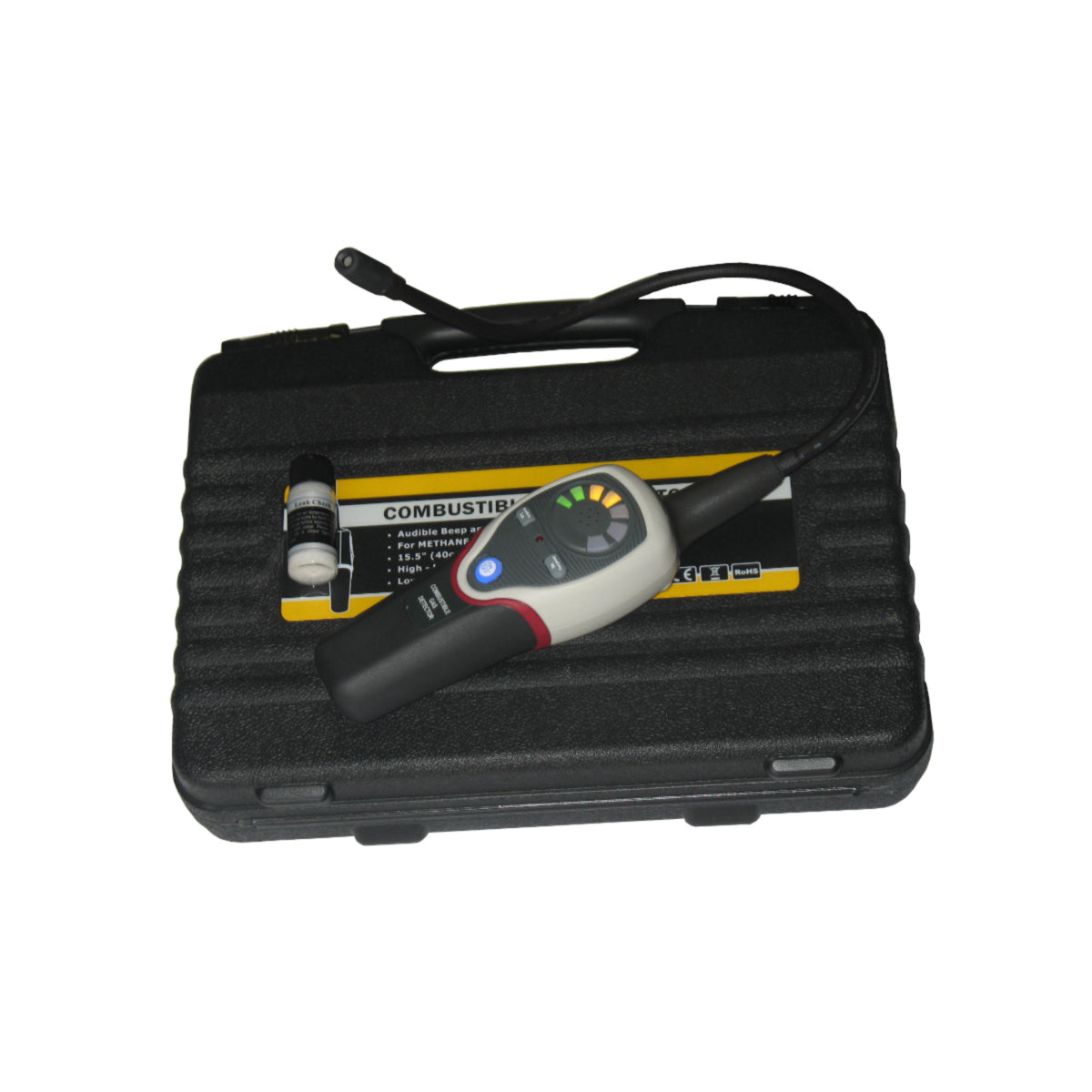

Leak detector GS4000 from CGS Handschug for detecting leaks of forming gas and combustible gases. The highly intelligent halogen leak detector has a handy shape and an LED display. It is easy to use and extremely reliable and accurate in displaying leaks. It comes in a practical case.

Technical Data

• Detects forming gas, H2 natural gases, propane, butane, LPG gases, etc.
• Very fast gas leak detectors similar to LS4000, but with an ION pump instead of an electric pump
• Highly visible, individual LEDs indicate possible leaks and their approximate size
• 3-color display of the set sensitivity
• Simplest operation and working method by pressing buttons
• Durable, highly effective suction pump generates a uniform suction flow past the sensor, ensuring particularly accurate leak detection
• Semiconductor gas sensor
• Automatic background compensation
• Alarm method: Buzzer, 3-color LED indicator
• Power supply: 5 VDC (4 x AA, 1.50 V battery) Optional: Adapter 220 V to 5 VDC
• Low battery indicator
• Automatic shutdown after approx. 10 minutes
• Max. sensitivity: R-134a, R-22, up to 3 g/year
• Max. sensitivity for other refrigerants: up to 4 g/year
• Sensor tip lifespan: approx. 1 year
• Operating temperature: 0°C to 40°C
• Battery life: approx. 7 hours
• Response time: immediate
• Warm-up time of the sensor tip: approx. 45 sec.
• Reset time: 2 sec.
• Weight: approx. 400 g
• Dimensions: 173 mm x 66 mm x 56 mm
• Length of flexible probe: 40 cm

According to the latest F-Gas regulation, an accuracy of 3g refrigerant loss per year is required. However, with this sensitivity, simple devices may also react to some foreign gases, such as gasoline vapors, etc. Acetone, Acetylene, Ammonia, Benzene, Butane, Butanol, Chlorine, Ethane, Ethanol, Gasoline, Hexane, Hydrogen, Hydrogen Sulfide, Isobutane, Methane (Natural Gas), Methanol, Methyl Acetate, Methyl Chloride, Methyl Ether, Naphtha, N-Butane, Pentane, Propane, Propanol, Sulfur Dioxide, Trichloroethane. (Please note when purchasing)
