Compressor GPY12LA Cubigel Huayi

Hermetic compressor GPY12LA from Cubigel Huayi for low-pressure applications. Replaces model GP12FB.

high product quality

high equipment and system robustness

low energy consumption

excl. VAT incl. VAT

169,00 € 201,11 € incl. VAT

~~excl. VAT~~ ~~0,00 € incl. VAT~~ 169,00 € excl. VAT 201,11 € incl. VAT

Sale Sold out

Available immediately

4 working days

zzgl. Versandkosten

ArtNr 9201115 Hersteller Cubigel / Huayi Datenblatt

12 months material warranty
Purchase on account
14-day return policy

View full details

Product description

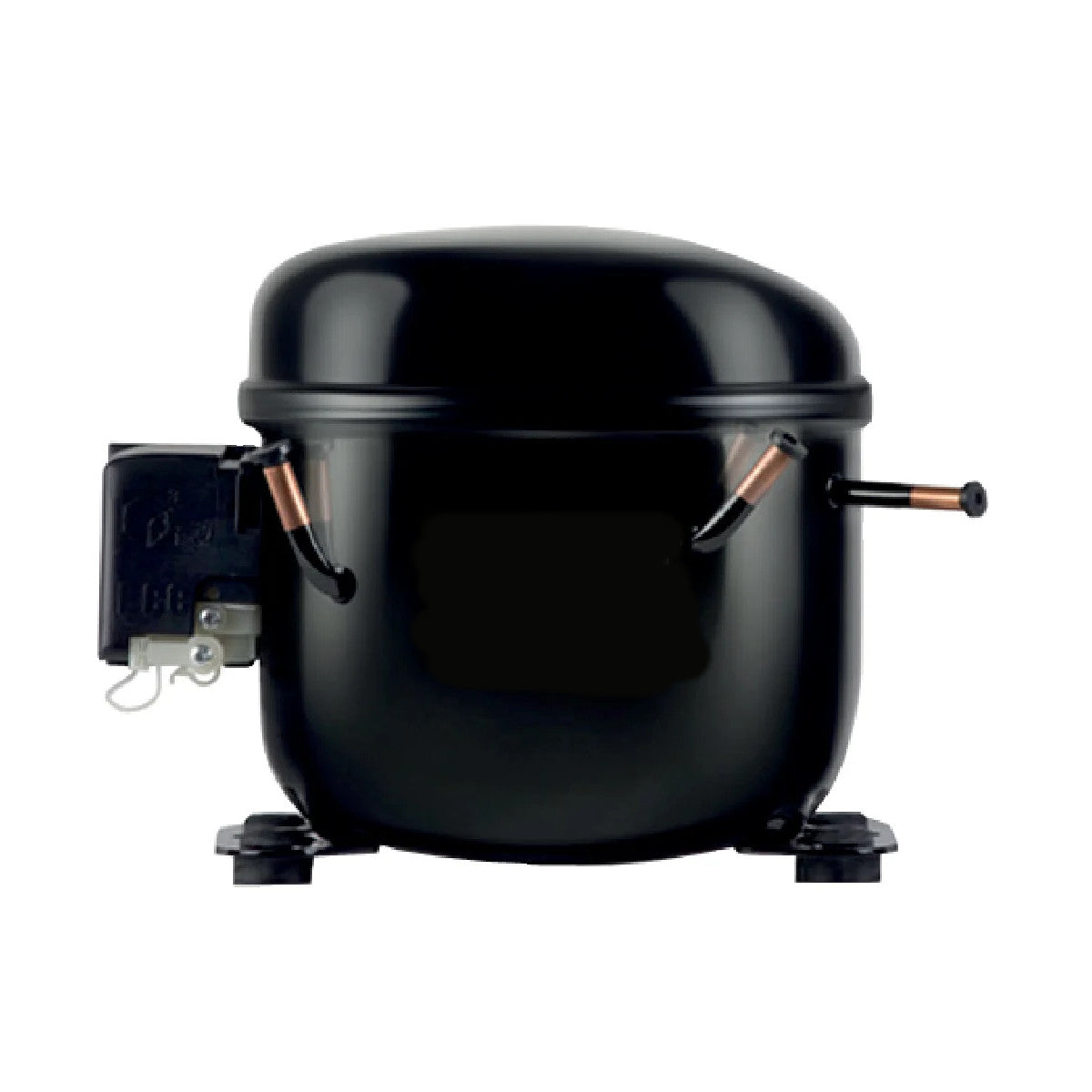

Compressor GPY12LA Cubigel

Fully hermetic compressor GPY12LA for low-pressure applications from Cubigel Huayi. The compressors in this series are characterized by their compact design, increased displacement, and high efficiency. Replaces model GP12FB.

The exact performance data can be found in the technical data sheet.

General features:

Motor type: CSIR
Refrigerant: R134a
Mains voltage: 220-240V/1/50Hz
Displacement: 12.10 cm³
Oil charge: ISO VG 32 Ester, 0.35L
Max. operating current: 2.4 A
Suction connection: 8.1 mm
Discharge connection: 6.5 mm
Injection: Capillary tube / Expansion valve
Dimensions (LxWxH): 192 x 162 x 210.5 mm

This item is suitable for devices from Alpeninox, Angelo-Po, Electrolux, Franstal, Metro-France, Nordton, OEM, OLIS, Polaris, Rieber, SAGI, Zanussi Professional, Zoppas, among others.
