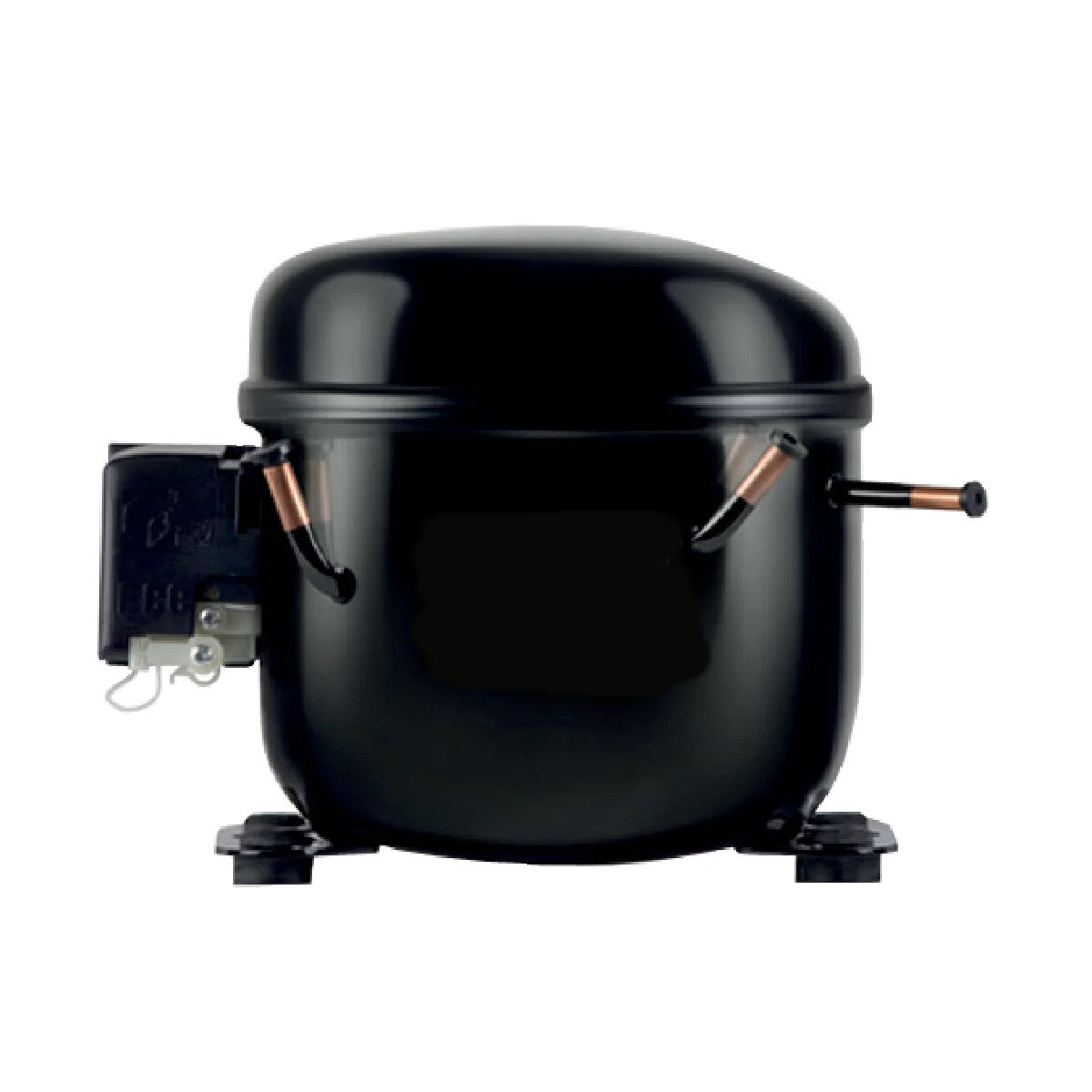

Compressor GL90AA Cubigel
Fully hermetic compressor GL90AA for low pressure applications from Cubigel Huayi. Compressors of this series are characterized by their compact design, increased displacement, and high efficiency. Replaces models FG85HAK and GLY90RA
The exact performance data can be found in the technical data sheet.
General features:
- Motor type: RSIR
- Refrigerant: R134a
- Mains voltage: 220-240V/1/50Hz
- Displacement: 9.09 cm³
- Oil charge: ISO VG 32 ESTER, 0.35 L
- Max. operating current: 1.70 A
- Suction connection: 6.5 mm
- Discharge connection: 4.9 mm
- Expansion device: Capillary tube
- Dimensions (LxWxH): 192 x 162 x 185.6 mm
- high product quality
- high equipment and system robustness
- low energy consumption
