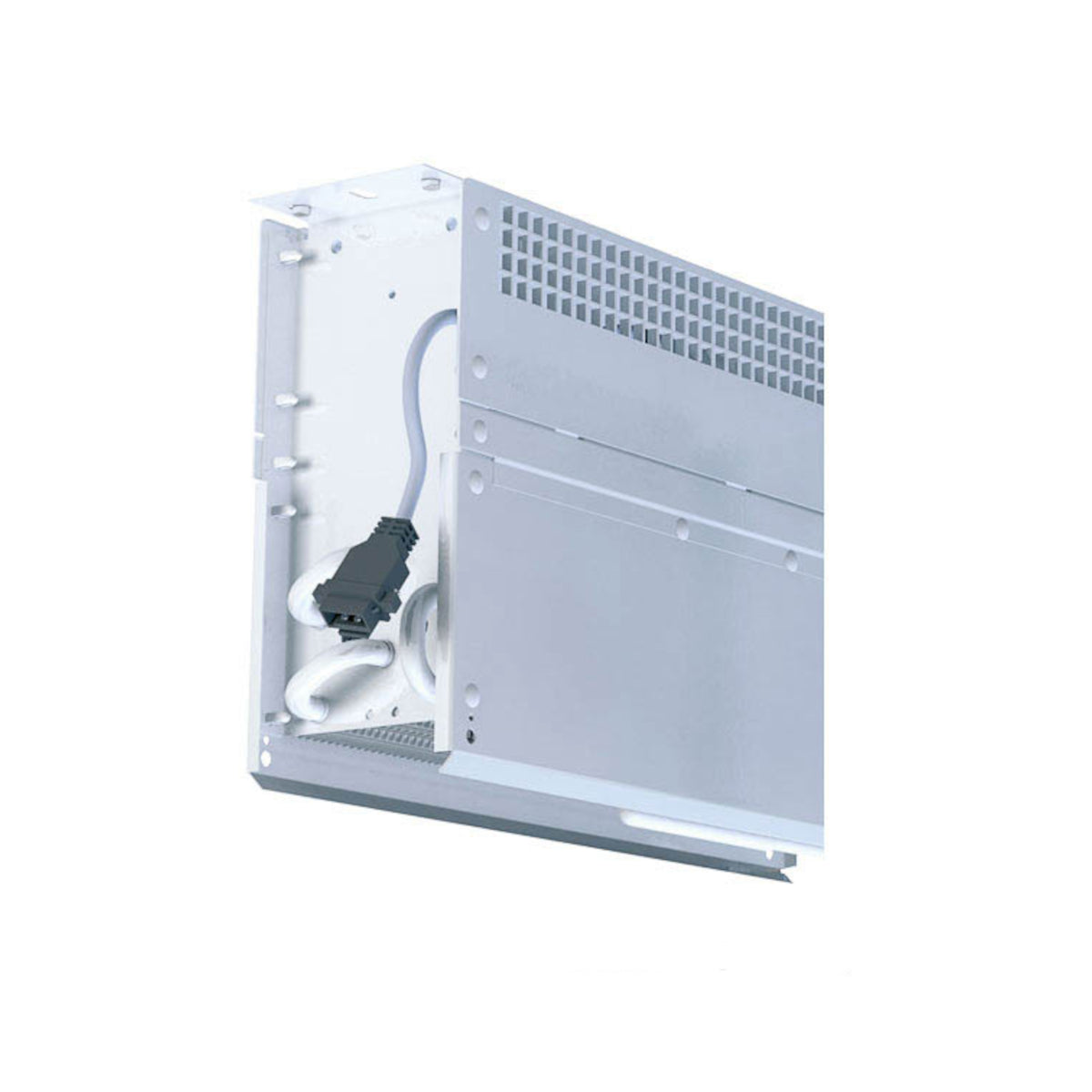

FMOA811D Air cooler Küba / Kelvion

FMOA811D Counter Evaporator Küba / Kelvion

The gastro slim FM air cooler from Kelvion / Küba provides maximum performance for refrigerated counters, serving counters, and refrigerated tables. It can be mounted either on the side wall with one-sided discharge, or behind the central mullion with two-sided discharge. The patented air straightener guarantees an even temperature distribution in the refrigerated furniture, significantly reducing cooling times. For applications down to -30°C, electric defrosting can be retrofitted with little effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical data

• max. operating pressure: 60 bar
• Rated capacity R404A at 50Hz: 0.11 kW at + 5°C to 10K
• Rated capacity R744 at 50Hz: 0.14 kW at + 5°C to 10K
• Surface area: 0.8 m²
• Air flow volume: 70 m³/h
• Tube volume: 0.1 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Voltage: 230V/1/50/60Hz
• Speed: 1930 rpm
• Power consumption: 11W
• Operating current: 0.09 A

Design details:

• Housing made of aluminum, smooth
• Food-safe and suitable for open or acidic goods thanks to powder coating
• Easy to clean due to removable housing
• FMA side discharge
• FMOA top, two-sided discharge
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
