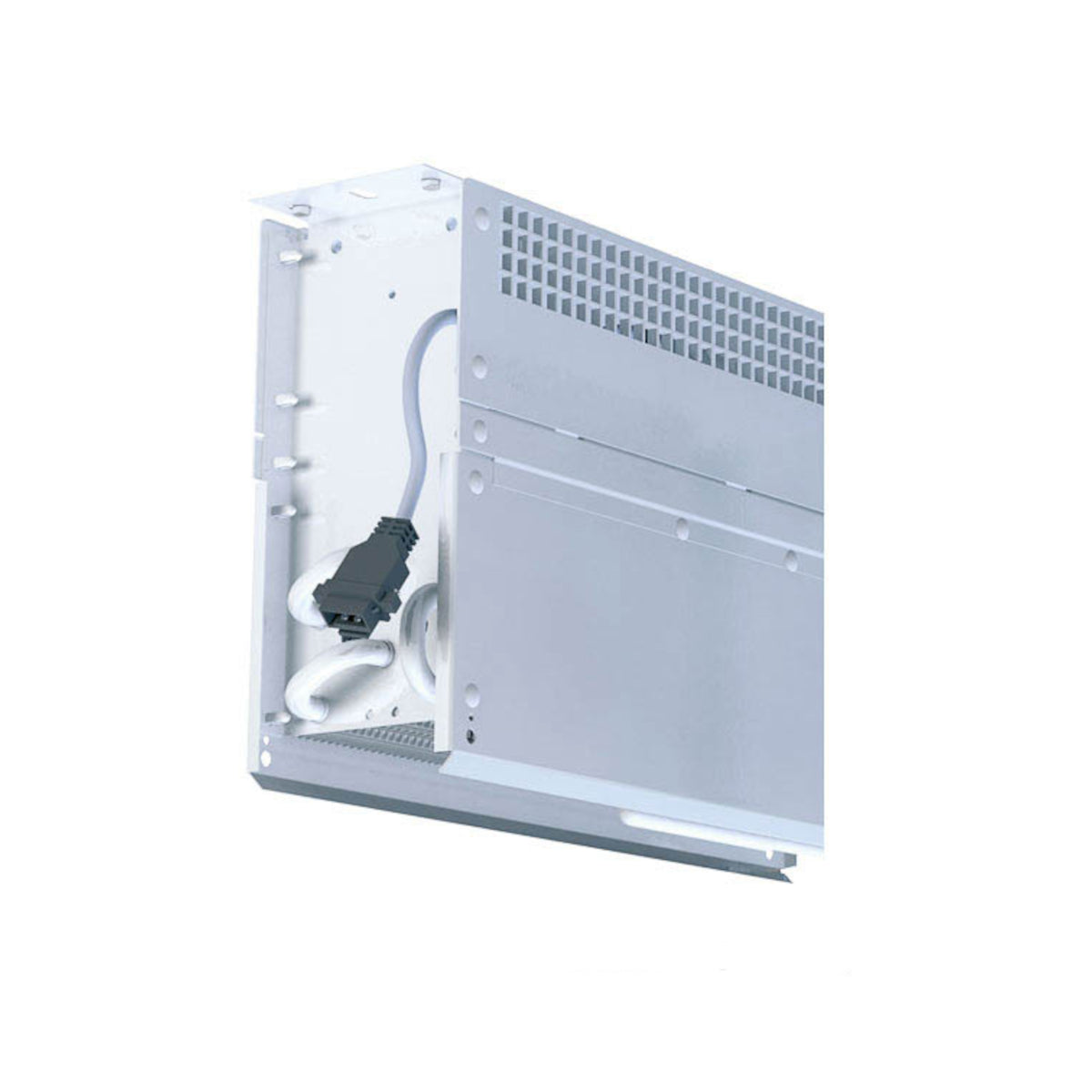

FMOA042D Air cooler Küba / Kelvion

FMOA042D Air Cooler Küba / Kelvion

The gastro FM air cooler from Kelvion / Küba delivers maximum performance for refrigerated counters, bar counters, and refrigerated tables. It can be installed either on the side wall with single-sided discharge, or behind the central support with double-sided discharge. The patented air straightener guarantees an even temperature distribution in the refrigerated cabinet, significantly reducing cooling times. For applications down to -30°C, electric defrosting can be easily retrofitted. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical Data

• max. operating pressure: 32 bar
• Nominal capacity R404A at 50Hz: 0.34 kW at + 5°C to 10K
• Surface area: 3.6 m²
• Air volume flow: 125 m³/h
• Tube volume: 0.6 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Voltage: 230V/1/50/60Hz
• Fan diameter: 90mm
• Speed: 2740 rpm
• Power consumption: 9W
• Operating current: 0.09 A

Execution Details:

• Housing made of smooth aluminum
• Food-safe and, thanks to powder coating, also suitable for open or acidic goods
• Easy to clean thanks to removable housing
• FMA side discharge
• FMOA top double-sided discharge
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
