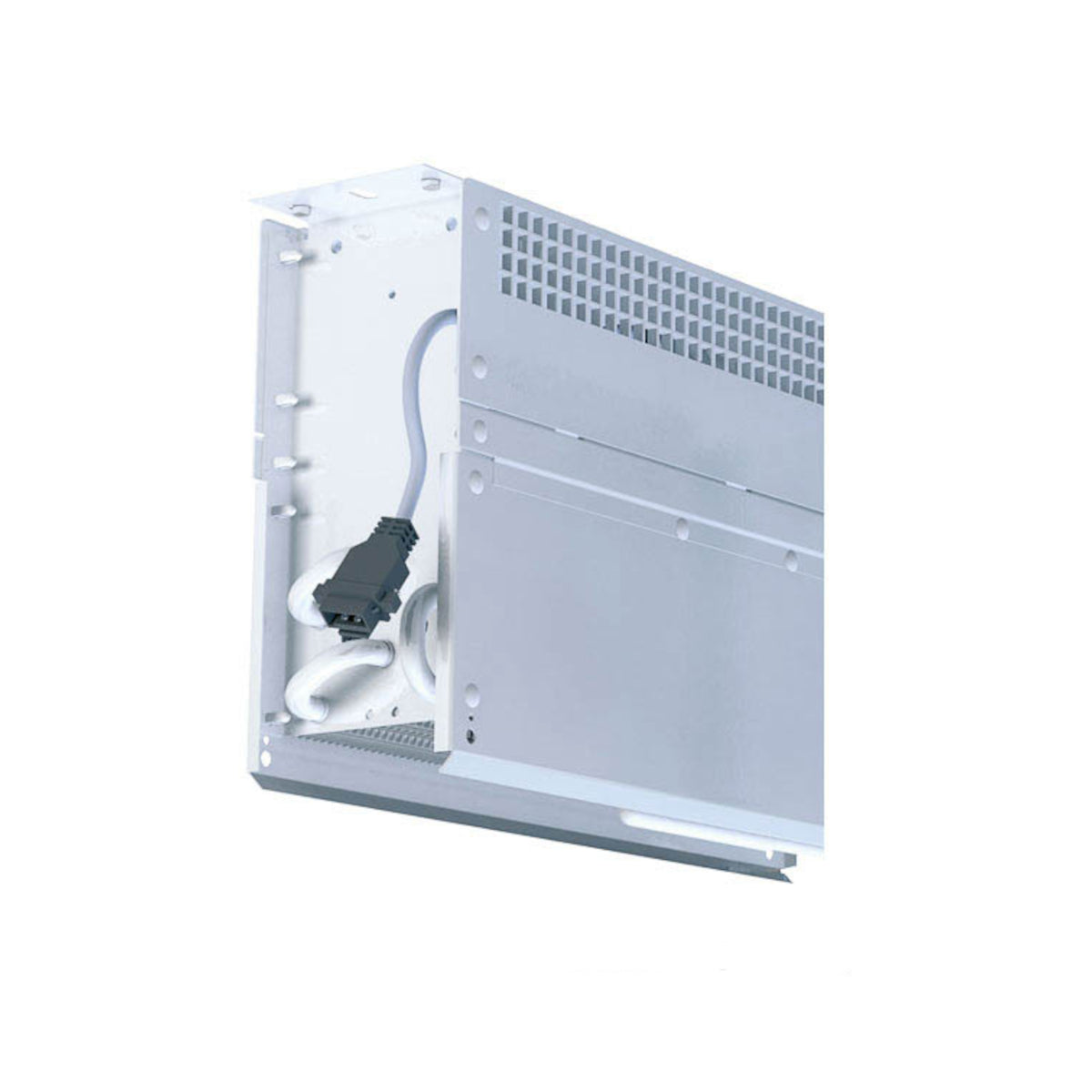

FMOA032D Air Cooler Küba / Kelvion

FMOA032D Air Cooler Küba / Kelvion

The gastro FM air cooler from Kelvion / Küba delivers maximum performance for refrigerated counters, bar counters and refrigerated tables. It can be mounted either on the side wall, blowing out unilaterally, or behind the central support, blowing out bilaterally. The patented air rectifier guarantees an even temperature distribution in the refrigerated cabinet, thus significantly reducing cooling times. For use in temperatures down to -30°C, electric defrosting can be retrofitted without great effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical data

• max. operating pressure: 32 bar
• Rated power R404A at 50Hz: 0.31 kW at +5°C to 10K
• Surface area: 2.4 m²
• Air volume flow: 135 m³/h
• Tube volume: 0.4 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Voltage: 230V/1/50/60Hz
• Fan diameter: 90mm
• Speed: 2740 rpm
• Power consumption: 9W
• Operating current: 0.09 A

Execution details:

• Housing made of aluminum, smooth
• Food-safe and suitable for open or acidic goods thanks to powder coating
• Easy to clean thanks to removable housing
• FMA side discharge
• FMOA top, double-sided discharge
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
