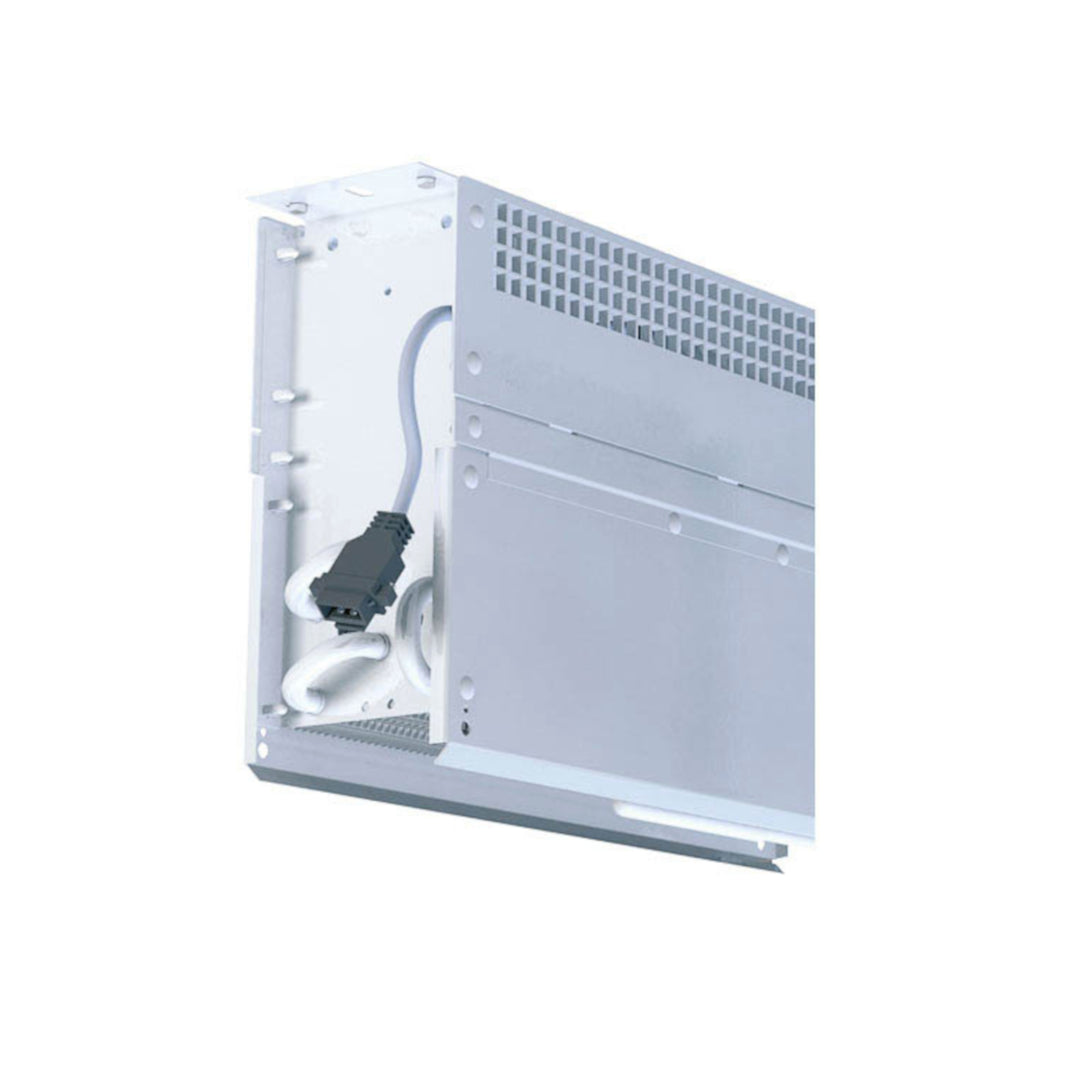

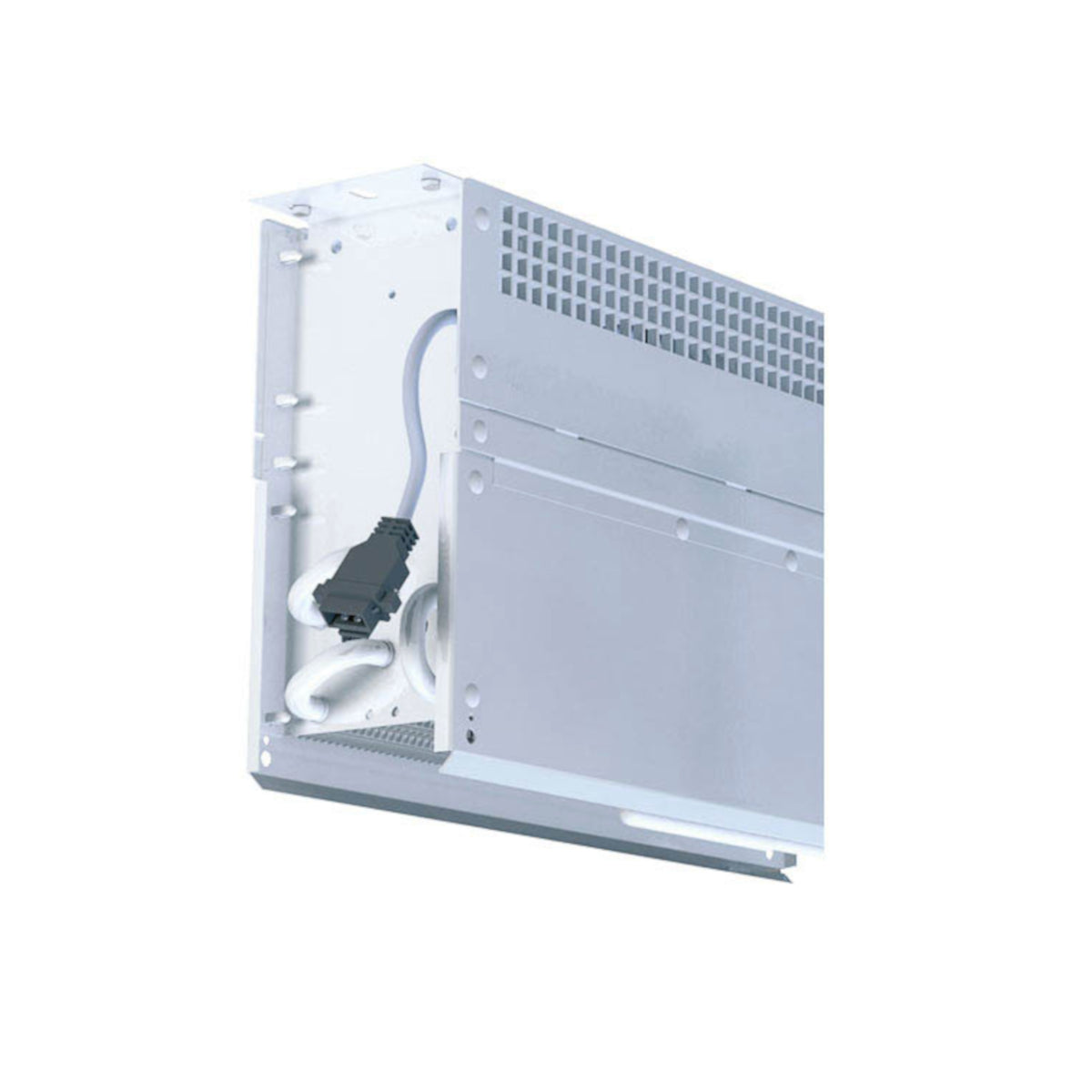

FMOA022D Air Cooler Küba / Kelvion

FMOA022D Air Cooler Küba / Kelvion

The gastro FM air cooler from Kelvion / Küba delivers maximum performance for refrigerated counters, bar counters and refrigerated tables. It can be mounted on the side wall with single-sided discharge or behind the central post with double-sided discharge. The patented air straightener guarantees an even temperature distribution in the refrigerated cabinet, thus significantly reducing cooling times. An electric defrosting system can be retrofitted for use in areas down to -30°C without great effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical data

• max. operating pressure: 32 bar
• Rated power R404A at 50Hz: 0.26 kW at + 5°C to 10K
• Surface area: 1.8 m²
• Air volume flow: 140 m³/h
• Tube volume: 0.3 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Voltage: 230V/1/50/60Hz
• Fan diameter: 90mm
• Speed: 2740 rpm
• Power consumption: 9W
• Operating current: 0.09 A

Design details:

• Housing made of aluminum, smooth
• Food-safe and, thanks to powder coating, also suitable for open or acidic goods
• Easy to clean due to removable housing
• FMA with lateral discharge
• FMOA with double-sided discharge at the top
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
