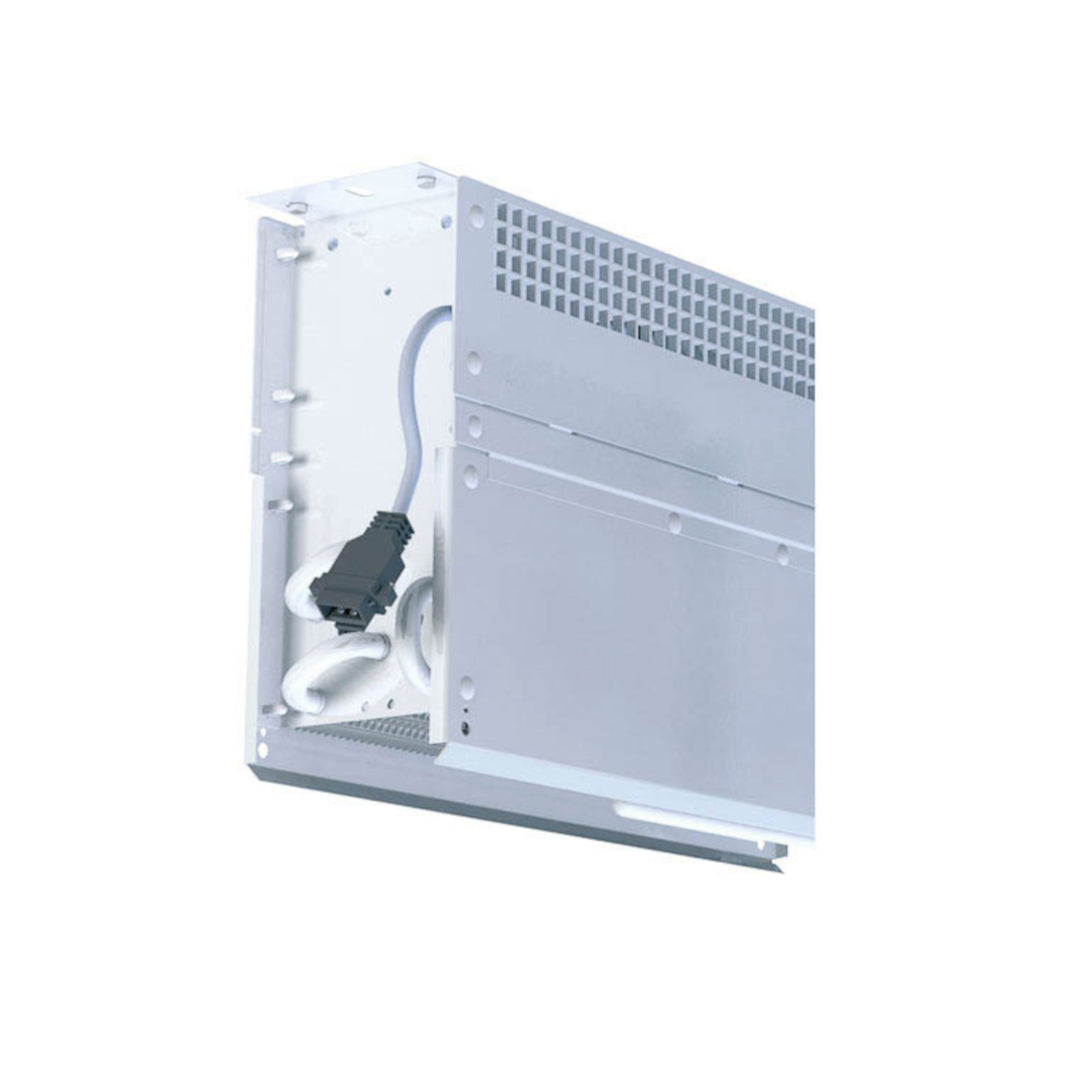

FMOA021D Air cooler Küba / Kelvion

FMOA021D Air Cooler Küba / Kelvion

The gastro FM / gastro slim FM air cooler from Kelvion / Küba delivers maximum performance for refrigerated counters, bar counters and refrigerated tables. It can be mounted on the side wall with a single-sided air discharge, or behind the central support with a double-sided air discharge. The patented air rectifier guarantees an even temperature distribution in the refrigeration unit, significantly reducing cooling times. For applications down to -30°C, electric defrosting can be retrofitted without much effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements. Successor FM-091-3AN-FX32-2

Technical Data

• Max. operating pressure: 32 bar
• Rated capacity R404A at 50Hz: 0.20 kW at +5°C to 10K
• Surface area: 1.8 m²
• Air volume flow: 80 m³/h
• Tube volume: 0.3 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Voltage: 230V/1/50/60Hz
• Fan diameter: 90mm
• Speed: 2740 rpm
• Power consumption: 9W
• Operating current: 0.09 A

Design Details:

• Housing made of aluminum, smooth
• Food-safe and, thanks to powder coating, also suitable for unpackaged or acidic goods
• Easy to clean due to removable housing
• FMA with side discharge
• FMOA with double-sided top discharge
• Heat exchanger with offset tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
