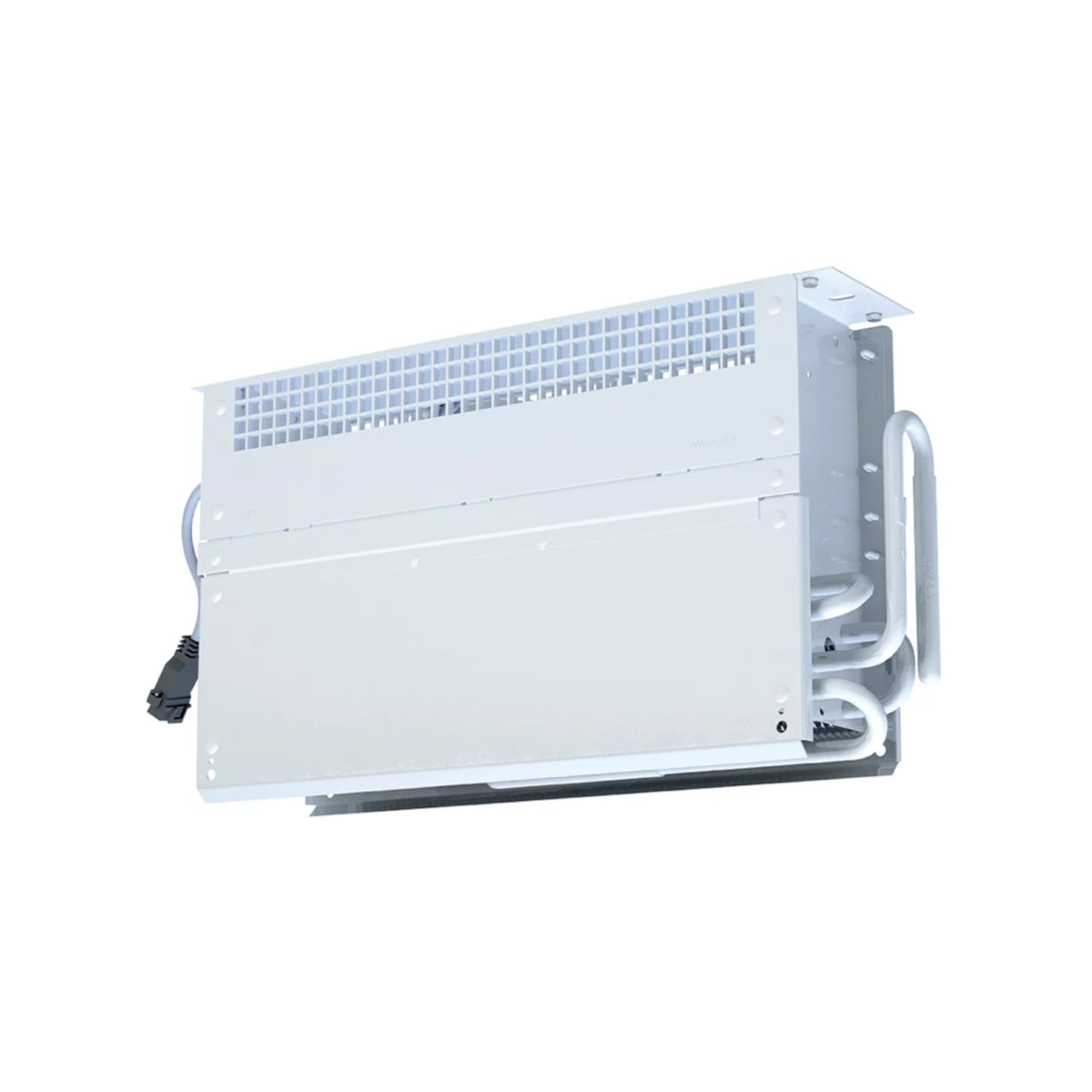

FMA811D Counter Evaporator Küba / Kelvion

Counter Evaporator FMA811D 110W Küba gastro slim

The gastro slim FM air cooler from Kelvion / Küba delivers maximum performance for refrigerated counters, bar counters and refrigerated tables. It can be installed either on the side wall with single-sided discharge, or behind the central support with double-sided discharge. The patented air rectifier guarantees an even temperature distribution in the refrigerated cabinet and thus significantly reduces cooling times. For applications down to -30°C, an electric defrosting system can be retrofitted without great effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical Data

• max. operating pressure: 60 bar
• Nominal capacity R404A at 50Hz: 0.11 kW at + 5°C to 10K
• Nominal capacity R744 at 50Hz: 0.14 kW at + 5°C to 10K
• Surface area: 0.8 m²
• Air volume flow: 70 m³/h
• Tube volume: 0.1 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Voltage: 230V/1/50/60Hz
• Speed: 1930 rpm
• Power consumption: 11W
• Operating current: 0.09 A

Details of the design:

• Aluminum housing, smooth
• Food-safe and suitable for open or acidic goods thanks to powder coating
• Easy to clean thanks to removable housing
• FMA with side discharge
• FMOA with double-sided top discharge
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
