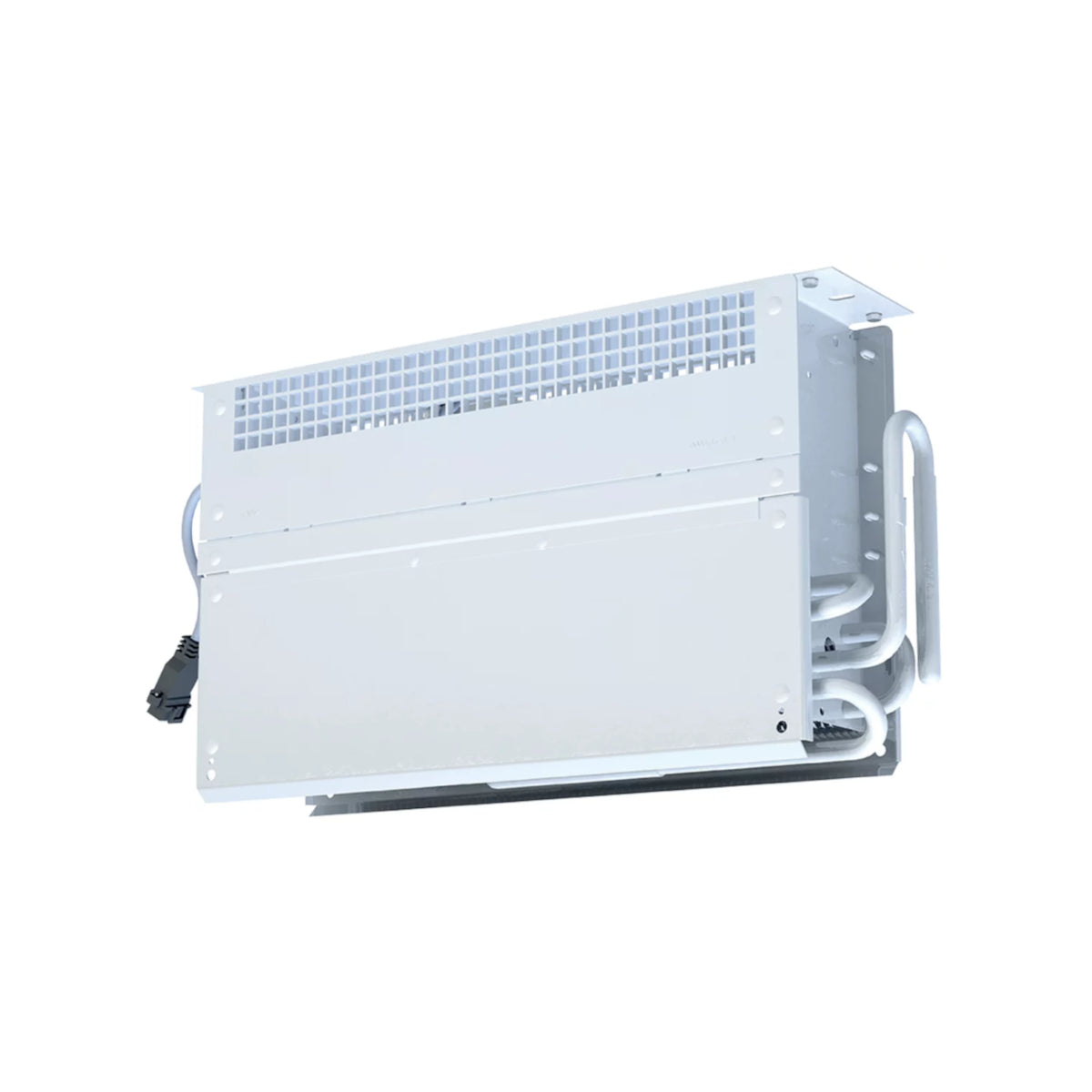

FMA042D Counter Evaporator Küba / Kelvion

FMA042D Countertop Evaporator 340W Küba / Kelvion 100455011

The gastro FM / gastro slim FM air cooler from Kelvion / Küba provides maximum performance for refrigerated display cases, dispensing counters and refrigerated tables. It can be mounted either on the side wall, blowing out on one side, or behind the central mullion, blowing out on both sides. The patented air straightener guarantees an even temperature distribution in the refrigerated cabinet, thus significantly reducing cooling times. For applications down to -30°C, an electric defrosting system can be retrofitted without great effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical data

• max. operating pressure: 32 bar
• Nominal capacity R404A at 50Hz: 0.34 kW at + 5°C to 10K
• Surface area: 3.6 m²
• Air flow rate: 125 m³/h
• Tube volume: 0.6 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Fan diameter: 90mm
• Voltage: 230V/1/50/60Hz
• Speed: 2740 rpm
• Power consumption: 9W
• Operating current: 0.09 A

Details of the design:

• Housing made of smooth aluminum
• Food-safe and, thanks to powder coating, also suitable for open or acidic goods
• Easy to clean thanks to removable housing
• FMA blowing out to the side
• FMOA blowing out to both sides at the top
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
