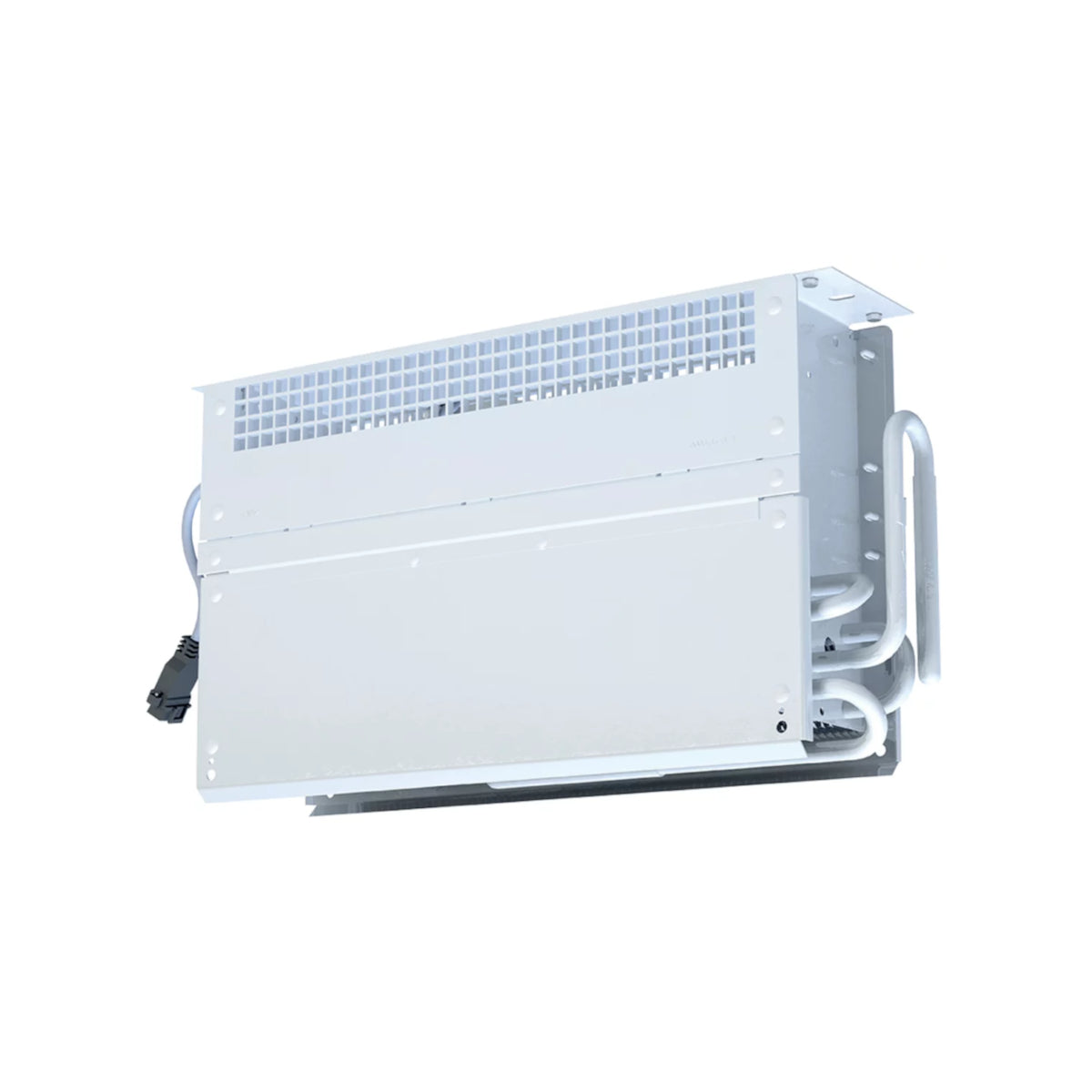

FMA032D Küba / Kelvion Countertop Evaporator

FMA032D Counter Evaporator 310W Küba / Kelvion 100455006

The gastro FM / gastro slim FM air coolers from Kelvion / Küba deliver maximum performance for refrigerated display cases, bar counters, and refrigerated tables. They can be mounted on the side wall, blowing out on one side, or behind the central post, blowing out on both sides. The patented air rectifier guarantees an even temperature distribution in the refrigerated cabinet, significantly reducing cooling times. An electric defrost can be retrofitted without much effort for applications down to -30°C. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical Data

• Max. operating pressure: 32 bar
• Nominal capacity R404A at 50Hz: 0.31 kW at +5°C to 10K
• Surface area: 2.4 m²
• Air flow rate: 135 m³/h
• Tube volume: 0.4 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Fan diameter: 90mm
• Voltage: 230V/1/50/60Hz
• Speed: 2740 rpm
• Power consumption: 9W
• Operating current: 0.09 A

Design Details:

• Aluminum housing, smooth
• Food-safe and, thanks to powder coating, also suitable for open or acidic goods
• Easy to clean thanks to removable housing
• FMA side discharge
• FMOA top discharge (both sides)
• Heat exchanger with staggered tube system, oxygen-free drawn, internally finned special copper tube
• Highest heat transfer with compact dimensions
• Energy-efficient motors
