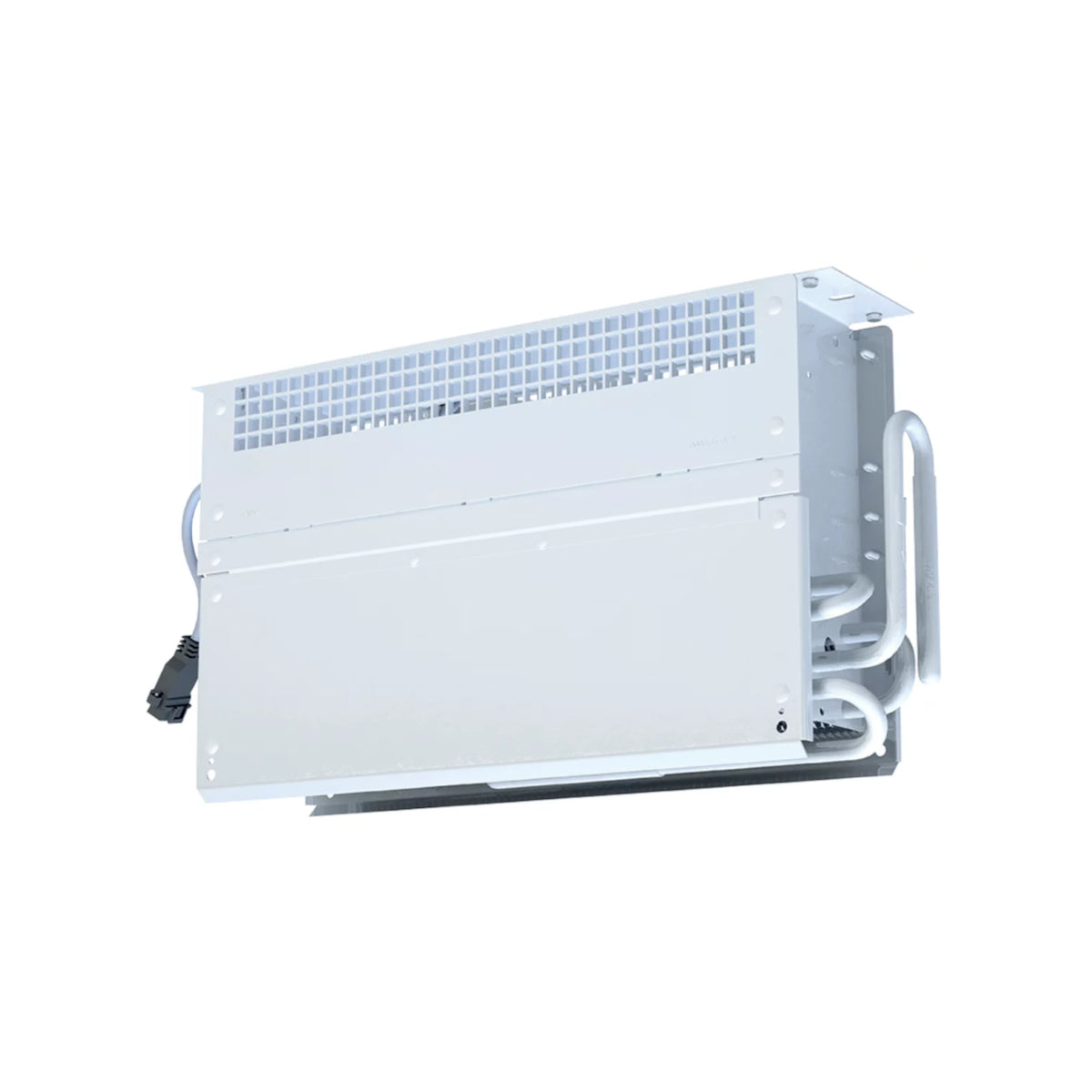

FMA011D Countertop Evaporator Küba / Kelvion

FMA011D Counter Evaporator 150W Küba / Kelvion 100454999

The gastro FM / gastro slim FM air cooler from Kelvion / Küba delivers maximum performance for refrigerated counters, bar counters, and refrigerated cabinets. It can be mounted blowing out on one side on the side wall, or blowing out on both sides behind the central support. The patented air straightener ensures even temperature distribution in the refrigerated unit, significantly reducing cooling times. For applications down to -30°C, electric defrosting can be retrofitted without much effort. All housing parts are removable and dishwasher-safe, thus meeting even the highest hygiene requirements.

Technical Data

• Max. operating pressure: 32 bar
• Nominal capacity R404A at 50Hz: 0.15 kW at + 5°C to 10K
• Surface area: 1.2 m²
• Air flow rate: 85 m³/h
• Pipe volume: 0.3 dm³
• Inlet connection: 10mm
• Outlet connection: 10mm
• Fan diameter: 90mm
• Voltage: 230V/1/50/60Hz
• Speed: 2740 rpm
• Power consumption: 9W
• Operating current: 0.09 A

Design Details

• Housing made of smooth aluminum
• Food-safe and suitable for open or acidic goods thanks to powder coating
• Easy to clean thanks to removable housing
• FMA blowing out to the side
• FMOA blowing out upwards on both sides
• Heat exchanger with staggered pipe system, oxygen-free drawn, internally ribbed special copper pipe
• Highest heat transfer with compact dimensions
• Energy-efficient motors
