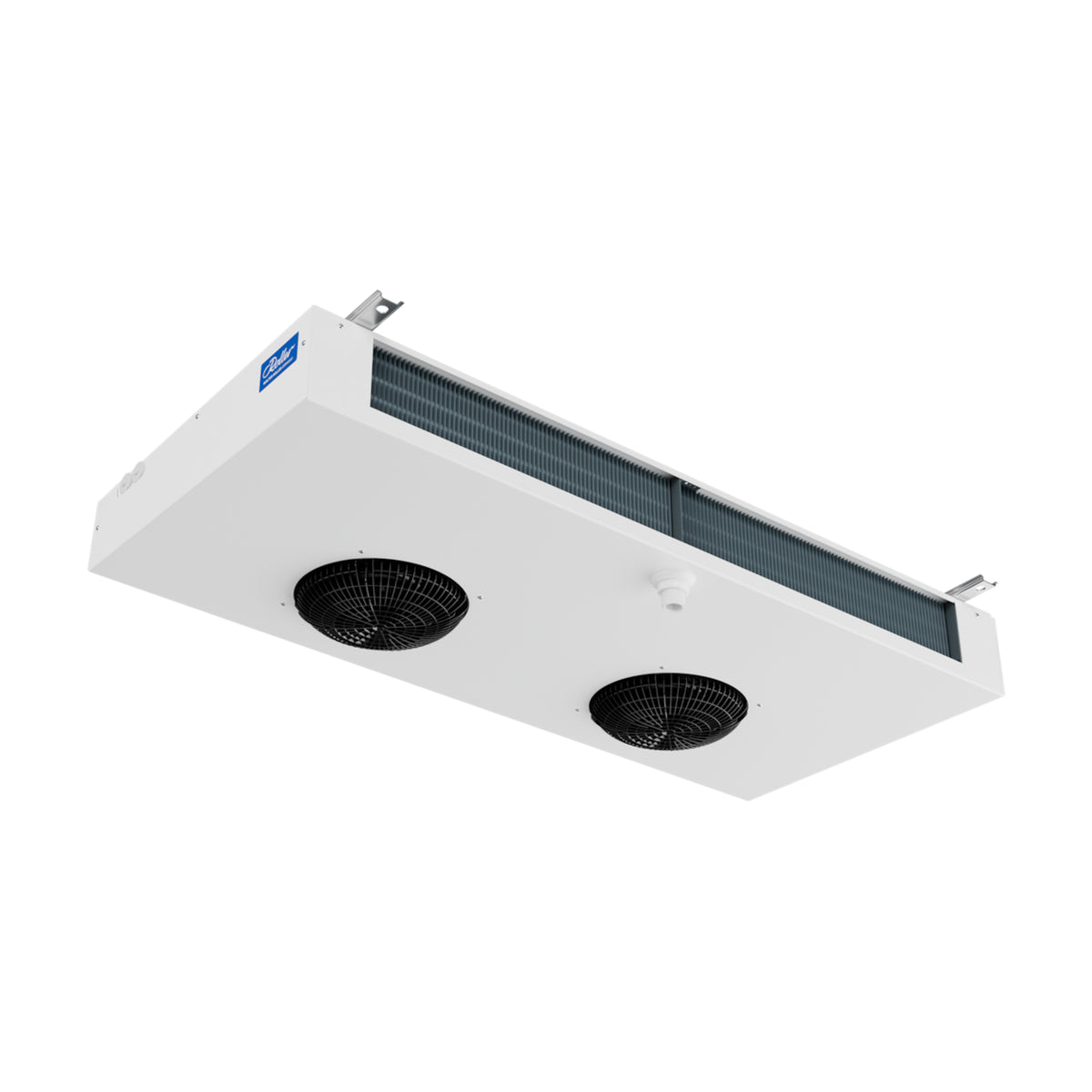

FKNT 626 Multi-Ref Air Cooler Roller

FKNT 626 MultiRef Roller Air Cooler with Defrost Heater 0016291

The FKN is specially designed for small, walk-in cold rooms and is particularly suitable for the hygienic requirements of fresh food due to its complete corrosion protection coating. The powerful diagonal fan ensures long-lasting cooling phases with even air distribution in the cold room.

Technical Data

• Capacity R290: 1.10 kW at -8°C to 8K, 0.891 kW at – 25°C to 7K
• Capacity R513A: 1.07 kW at -8°C to 8K, 0.816 kW at – 25°C to 7K
• Capacity R1234yf: 1.18 kW at -8°C to 8K, 0.906 kW at – 25°C to 7K
• Capacity R452A: 1.11 kW at -8°C to 8K, 0.899 kW at – 25°C to 7K
• Capacity R454C: 1.18 kW at -8°C to 8K, 0.956 kW at – 25°C to 7K
• Fin spacing: 6 mm
• Cooling surface: 4.0 m²
• Air flow: 660 m³/h
• Throw distance: 6 m
• Connections inlet/outlet: 12 mm / 15 mm
• Number x Diameter Fans: 2 x 200 mm
• Fan Voltage: 100-240V 50/60 Hz
• Fan Speed: 1500 rpm
• Fan Power: 15 W
• Airflow: 0.25 A
• Tube volume: 1.4 dm³
• Dimensions (W x H x L): 472 x 145 x 1048 mm
• Sound pressure level: 49 db(A)
• Sound power level: 67 db(A)

Replaces the FKNT 614 ECD Roller 0014092 ceiling evaporator
