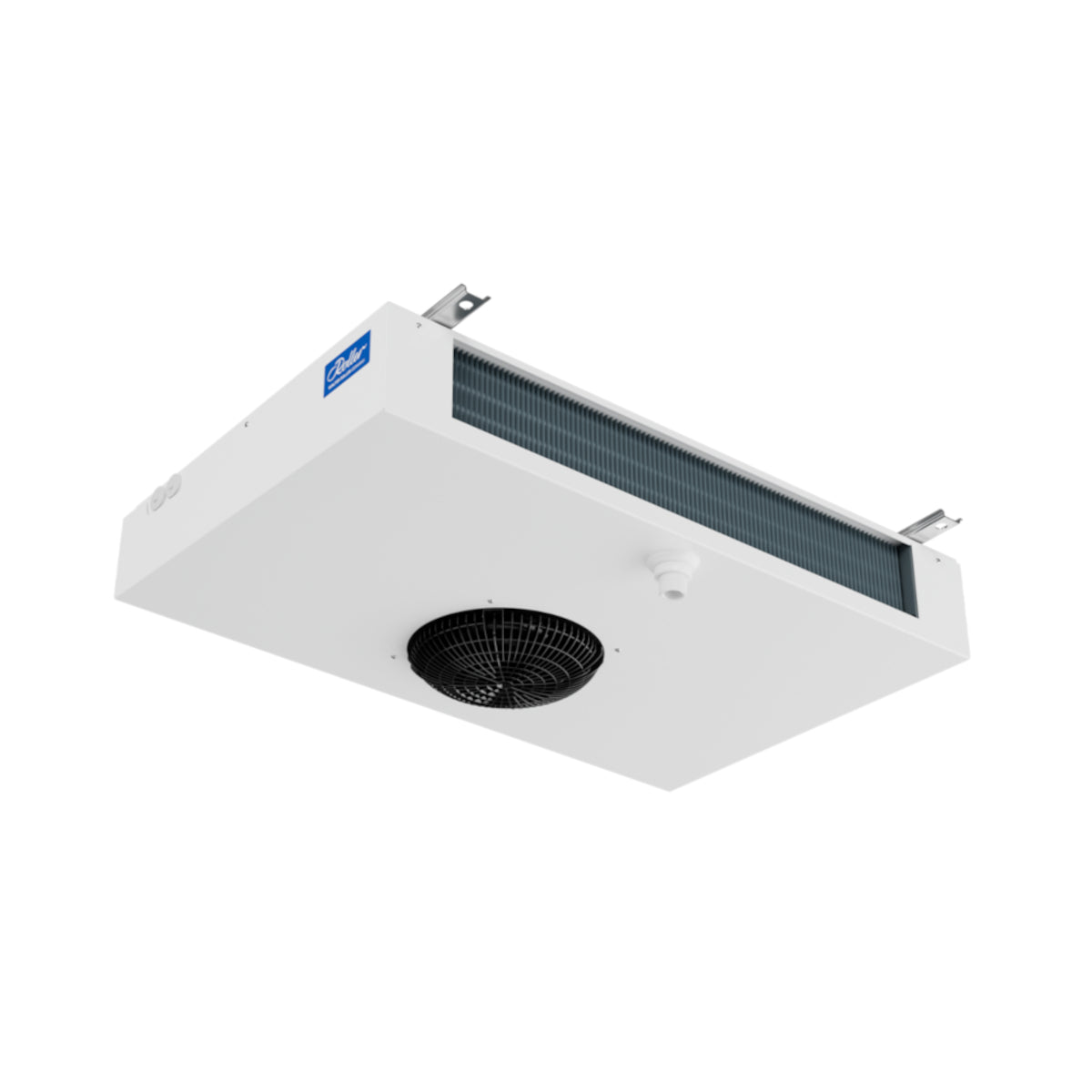

FKNT 614 MultiRef Refrigerated Air Roller

FKNT 614 MultiRef Air Cooler with Defrost Heater, EC Fan 100-240V Roller 0016290

The FKN is specially designed for small, walk-in cold rooms and is particularly suitable for the hygienic requirements of fresh food due to its complete corrosion protection coating. The powerful diagonal fan ensures long-lasting cooling phases with even air distribution in the cold room.

Technical data

• Capacity R290: 0.737 kW at -8°C to 8K, 0.573 kW at – 25°C to 7K
• Capacity R513A: 0.721 kW at -8°C to 8K, 0.525 kW at – 25°C to 7K
• Capacity R1234yf: 0.728 kW at -8°C to 8K, 0.514 kW at – 25°C to 7K
• Capacity R452A: 0.746 kW at -8°C to 8K, 0.578 kW at – 25°C to 7K
• Capacity R454C: 0.795 kW at -8°C to 8K, 0.615 kW at – 25°C to 7K
• Fin spacing: 6 mm
• Cooling surface: 2.7 m²
• Air flow: 400 m³/h
• Throw distance: 5 m
• Inlet/outlet connections: 10 mm / 10 mm
• Number x diameter fans: 1 x 200 mm
• Fan voltage: 100-240V 50/60 Hz
• Fan speed: 1500 rpm
• Fan power: 15 W
• Air flow: 0.25 A
• Tube volume: 1.0 dm³
• Sound pressure level: 47 db(A)
• Sound power level: 65 db(A)

Replaces the ceiling evaporator FKNT 614 ECD Roller 0013332
