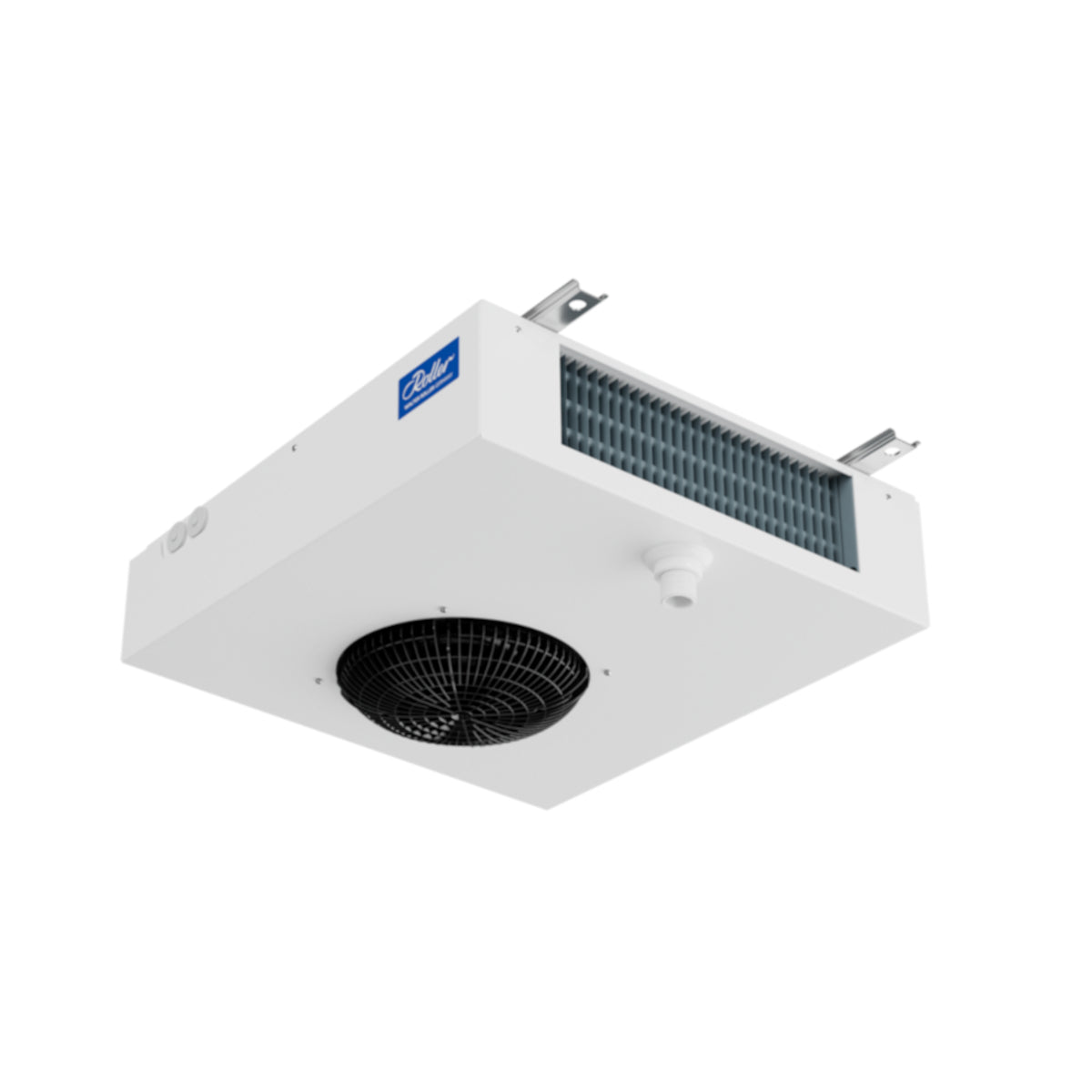

FKNT 612 MultiRef Air Cooler Roller

FKNT 612 MultiRef Air Cooler with Defrost Heater, EC Fan 100-240V Roller 0016288

The FKN is specially designed for small, walk-in cold rooms and, thanks to its complete corrosion protection coating, is particularly suitable for the hygienic requirements of fresh food. The powerful diagonal fan ensures long-lasting cooling phases with uniform air distribution in the cold room.

Technical data

• Capacity R290: 0.371 kW at -8°C to 8K, 0.276 kW at – 25°C to 7K
• Capacity R513A: 0.362 kW at -8°C to 8K, 0.250 kW at – 25°C to 7K
• Capacity R1234yf: 0.381 kW at -8°C to 8K, 0.320 kW at – 25°C to 7K
• Capacity R452A: 0.374 kW at -8°C to 8K, 0.275 kW at – 25°C to 7K
• Capacity R454C: 0.399 kW at -8°C to 8K
• Fin spacing: 6 mm
• Cooling surface: 1.3 m²
• Air flow: 220 m³/h
• Throw distance: 4 m
• Inlet/outlet connections: 10 mm / 10 mm
• Number x diameter of fans: 1 x 200 mm
• Fan voltage: 100-240V 50/60 Hz
• Fan speed: 1100 rpm
• Fan power: 10 W
• Air current: 0.08 A
• Tube volume: 0.6 dm³
• Dimensions (W x H x L): 472 x 145 x 448 mm
• Sound pressure level: 36 db(A)
• Sound power level: 54 db(A)

Replaces ceiling evaporator FKNT 614 ECD Roller 0013330
