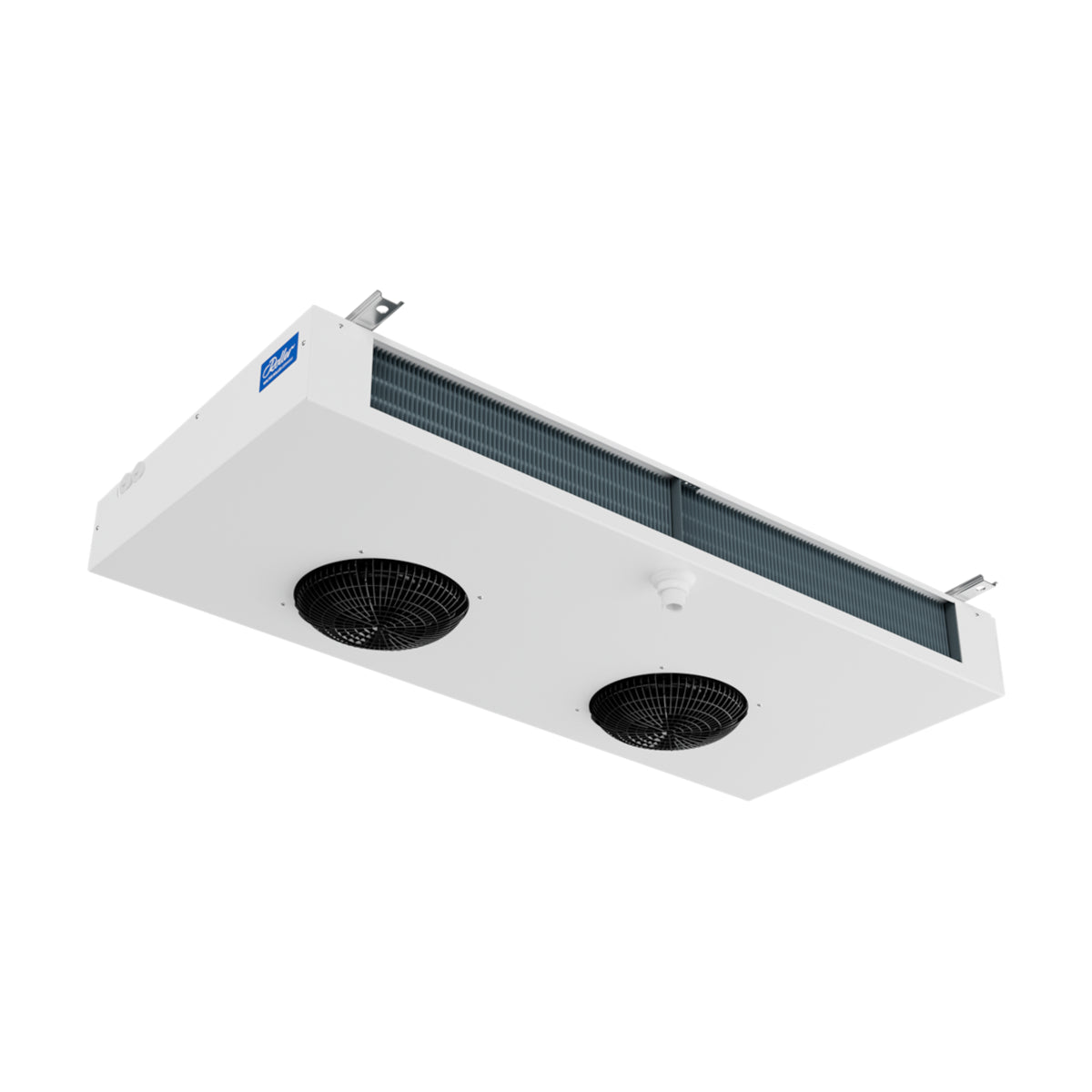

FKNT 426 MultiRef Air Cooler Roller

FKNT 426 MultiRef Air Cooler Roller with Defrost Heater 0016285

The FKN is specially designed for small, walk-in cold rooms and is particularly suitable for the hygienic requirements of fresh food due to its complete corrosion protection coating. The powerful diagonal fan ensures long-lasting cooling phases with uniform air distribution in the cold room.

Technical Data

• Capacity R290: 1.25 kW at -8°C to 8K, 0.985 kW at – 25°C to 7K
• Capacity R513A: 1.21 kW at -8°C to 8K, 0.902 kW at – 25°C to 7K
• Capacity R1234yf: 1.30 kW at -8°C to 8K, 0.959 kW at – 25°C to 7K
• Capacity R452A: 1.26 kW at -8°C to 8K, 0.994 kW at – 25°C to 7K
• Capacity R454C: 1.34 kW at -8°C to 8K, 1.05 kW at – 25°C to 7K
• Fin spacing: 4mm
• Cooling surface: 5.6 m²
• Airflow: 620 m³/h
• Throw distance: 6m
• Connections inlet/outlet: 12 mm / 15 mm
• Number x diameter fans: 2 x 200 mm
• Fan voltage: 100-240V 50/60 Hz
• Fan speed: 1500 rpm
• Fan power: 15 W
• Airflow: 0.25 A
• Tube volume: 1.4 dm³
• Dimensions (W x H x L): 472 x 145 x 1048 mm
• Sound pressure level: 49 db(A)
• Sound power level: 67 db(A)

Replaces the ceiling evaporator FKNT 614 ECD Roller 0013319
